Description

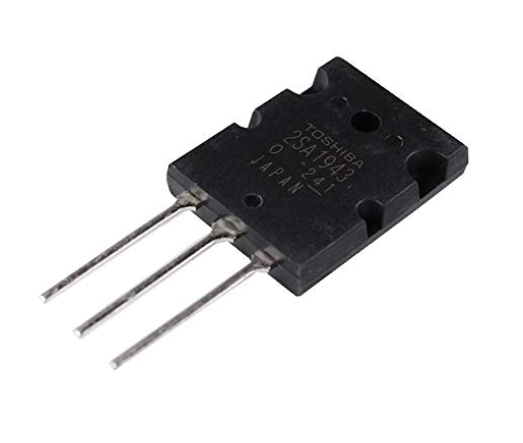

It's a 2SA1943 230V 15A Silicon PNP Triple Diffused Type Power Amplifier Transistor in TO-3PL Packge‚ which is used to amplify the weak signal‚ Its voltage is 230V and the current is 15A‚ its package is TO-3PL. It is made of semiconducting material It has three terminals. The current that flows through another pair of the transistor's terminals is controlled by a voltage or current applied to one pair of terminals. Recommended for 100-W high-fidelity audio frequency amplifier output stage.
Features:
- It provides low error voltage
- Its switching speed is fast
- It can be used in switching application
- It has high power current handling capacity
- High collector voltage: VCEO = −230 V (min)
| Specifications | |
|---|---|
| Common-Emitter Saturation Voltage | -230V |
| Collector Current | -15A |
| Part Number | 2SA1943 |
| Operating Temperature Range | -55 – 150°C |
| Mounting Style | Through Hole |
| Power Dissipation | 150w |
| Current | -15A |
| Voltage | -230V |
| Type | Power Transistor |
| Package | TO-3PL |
