Description

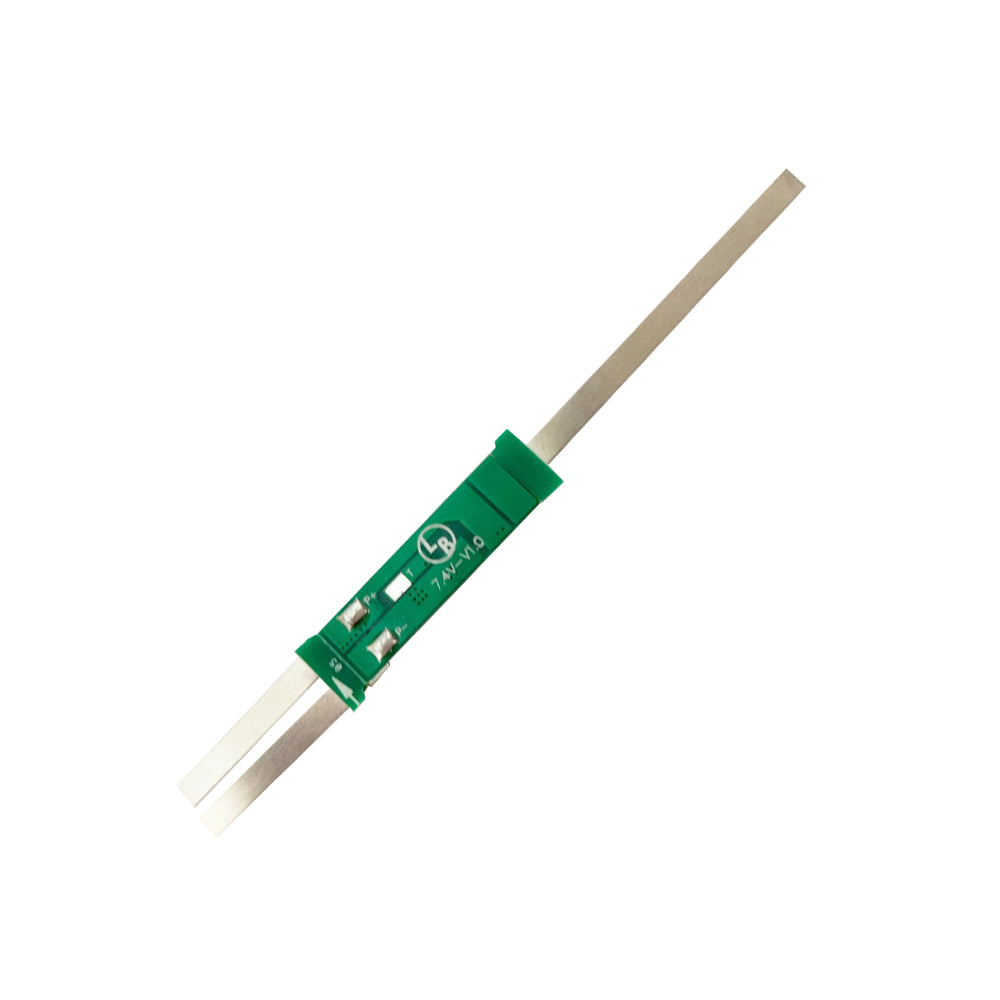

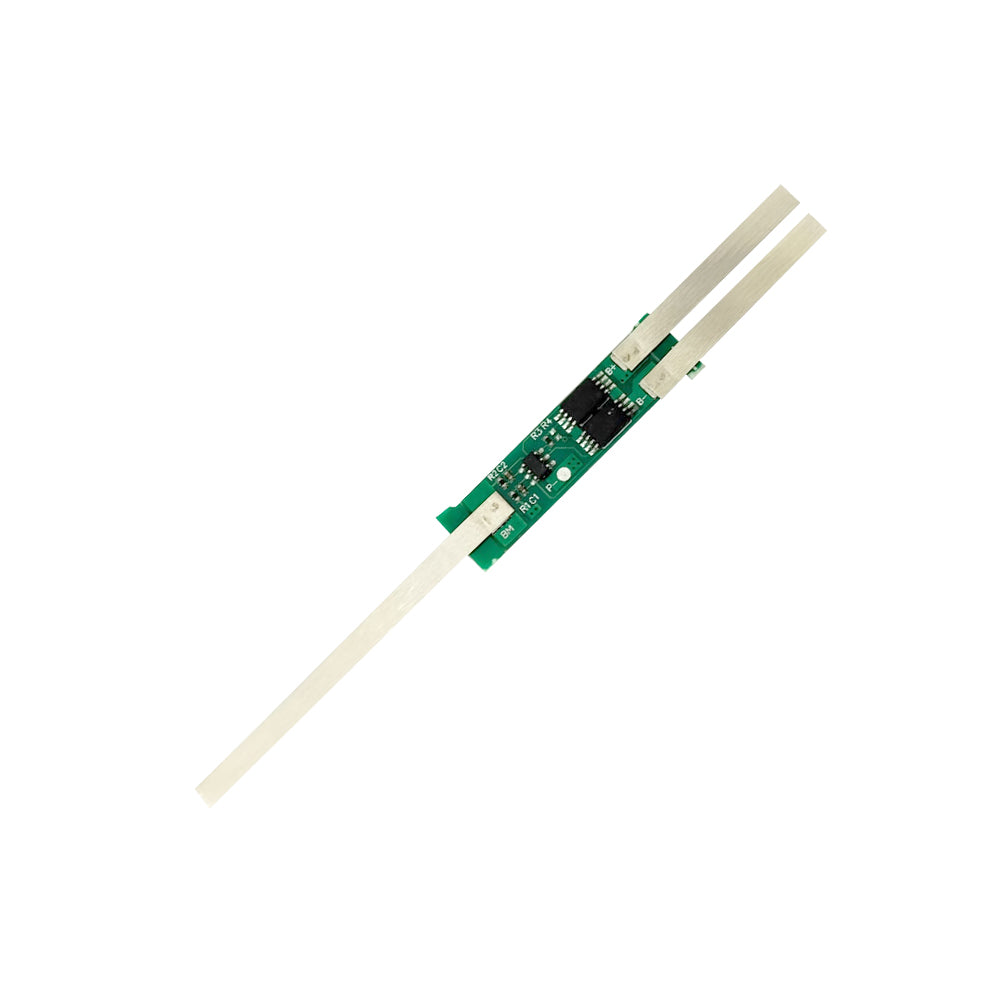

This is a 2S 2A LiFePO4 BMS Module. This is a double-cell Lithium Ion or Lithium Polymer battery charge and discharge protection module. It provides overcharge, over-discharge and overcurrent protection. The module is compact and can be fixed directly with the battery.
Specifications
| Max. Continuous Discharge Current | 2A |
| Max. Continuous Charging Current | 2A |
| Operating Temperature | -40°C~60°C |
| Number of Cells | 2 |
| Nominal Voltage | 7.4V |
| Size | 26x8x2mm |
| Country of Origin | China |
