Description

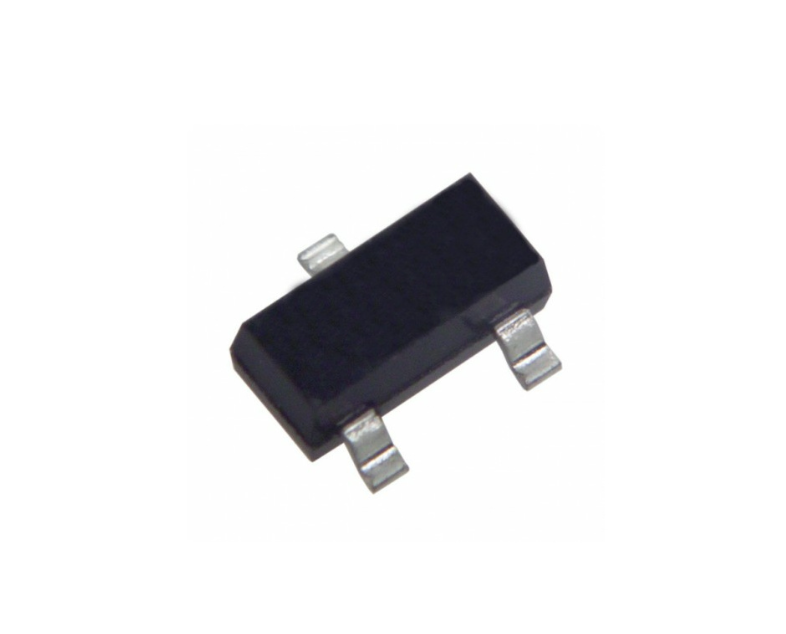

The 2N2222 is an NPN bipolar junction transistor (BJT). It's used in low-power amplifying and switching applications. It is intended for low to medium current‚ low power‚ medium voltage‚ and relatively fast operation. It's used in Driver Modules like Relay Drivers ‚ LED drivers, etc‚ Switching loads upto 600mA‚ Motor speed control‚ Inverter and Rectifier circuits‚ Darlington Pair Designs.
Features:
- Its bipolar NPN transistor
- Its collector Current is 0.6A
- Its collector emitter voltage of 40V
- Its high current is 600mA
| Specifications | |
|---|---|
| Part Number | 2N2222 |
| Operating Temperature Range | −65 +150°C |
| Mounting Style | SMD |
| Power Dissipation | 250mW |
| Current | 600mA |
| Voltage | 40V |
| Type | NPN Transistor |
| Package | SOT-23 |
