Description

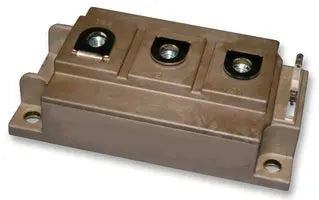

The 2MBI200SB-120-50 is an IGBT (Insulated Gate Bipolar Transistor) module from Fuji Electric. It features a voltage rating of 1200V and a current rating of 200A. This module is designed for high-power applications, offering efficient switching and high thermal performance, making it suitable for industrial inverters and motor drives.
Specifications:
- Voltage Rating (Vce): 1200V
- Current Rating (Ic): 200A
- Configuration: Dual IGBT module
- Collector-Emitter Saturation Voltage (Vce(sat)): 3.2V (typical)
- Gate-Emitter Voltage (Vge): ±20V (max)
- Maximum Power Dissipation (Ptot): 625W
- Isolation Voltage: 2500V AC for 1 minute
- Operating Temperature Range: -40°C to +150°C
- Storage Temperature Range: -40°C to +125°C
- Package: Standard module with mounting holes
- Applications: Industrial inverters, motor drives, power converters, and uninterruptible power supplies (UPS)
