Description

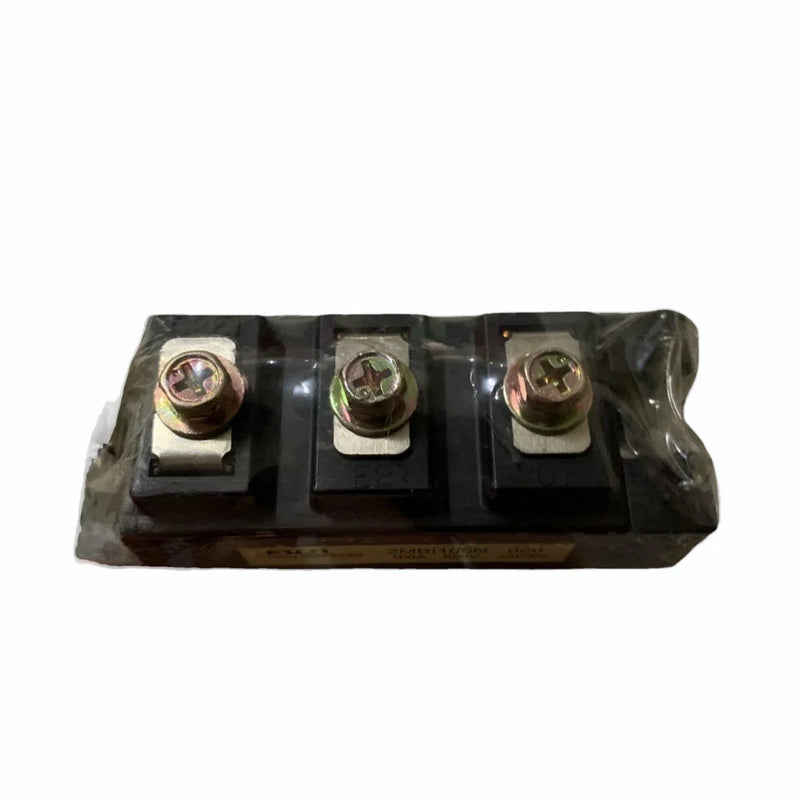

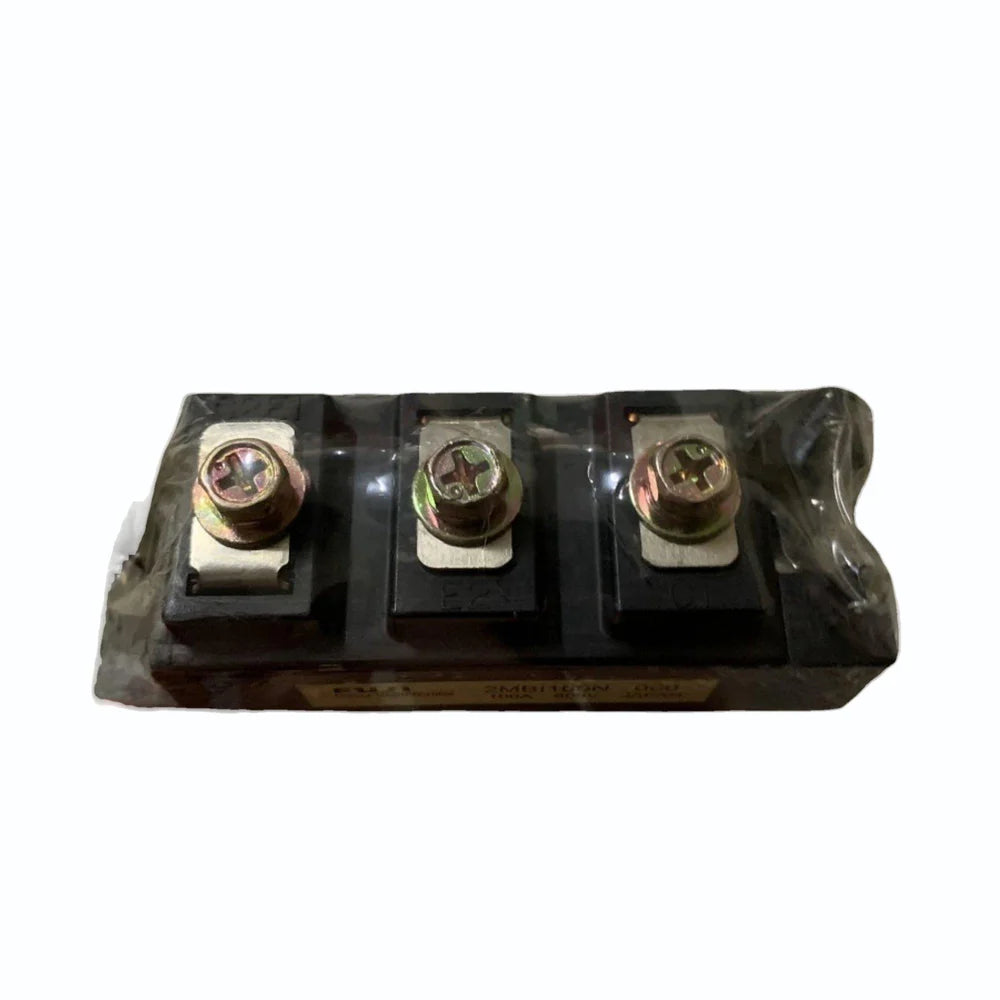

The 2MB100N-060 is a Fuji Electric IGBT module designed for high-efficiency power switching applications. It features a 600V, 100A rating and is commonly used in industrial inverters, motor drives, and power supplies. This module offers low power loss and high-speed switching capabilities.
Specifications:
- Collector-Emitter Voltage (VCE): 600V
- Collector Current (IC): 100A
- Gate-Emitter Voltage (VGE): ±20V
- Maximum Power Dissipation (Ptot): 312W
- Collector-Emitter Saturation Voltage (VCE(sat)): Typically 2.2V at 100A
- Isolation Voltage: 2500V AC (1 minute)
- Operating Junction Temperature (Tj): -40°C to +150°C
- Storage Temperature (Tstg): -40°C to +125°C
- Module Weight: Approximately 150g
- Package: Dual-in-line package
