Description

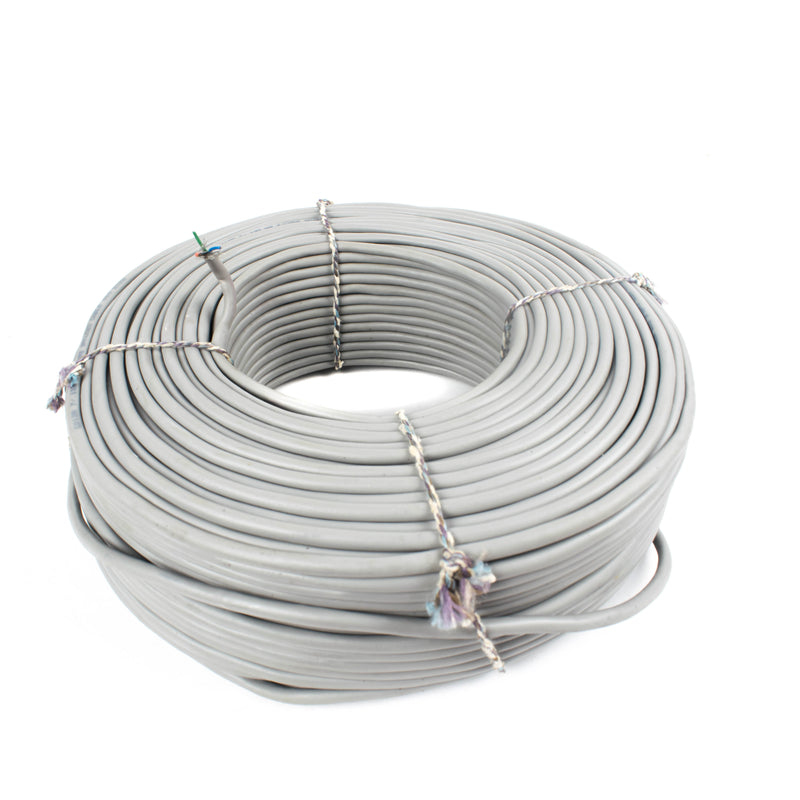

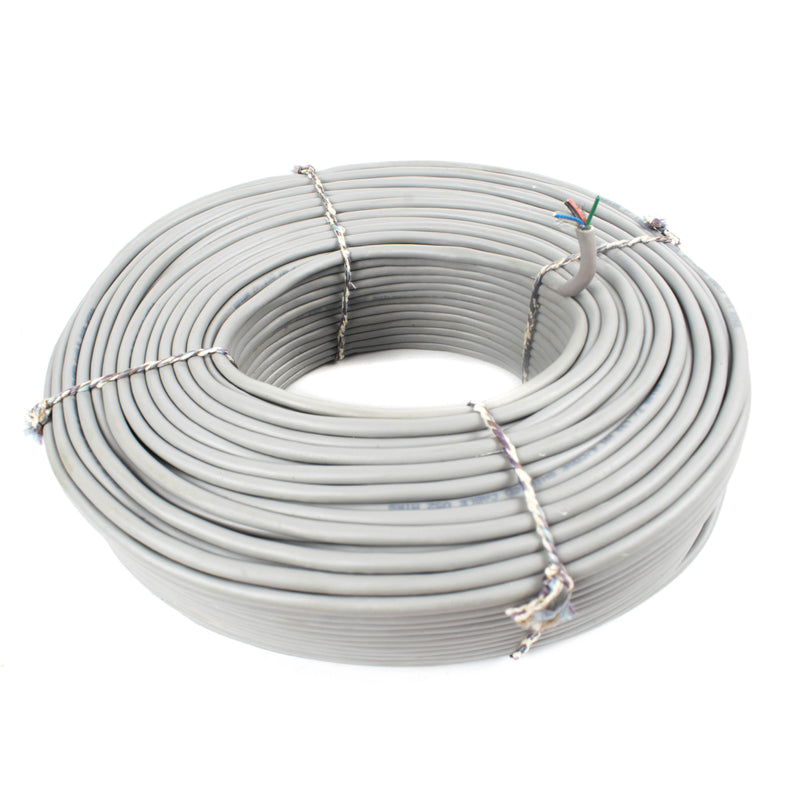

This is a 90 meter long 4-core PVC Shielded cable. It is useful when you need two channels or to provide a power supply. This cable is made up of 4 multi-strand wires.
Depending on your demands, you can use the cable in its entirety or divide each wire independently. Such wires are commonly used in perf board soldering and flat cable connections. The use of oxygen-free copper improves conductivity, which helps low-frequency audio signal transfers greatly, while also supporting a wide frequency range.
Depending on your demands, you can use the cable in its entirety or divide each wire independently. Such wires are commonly used in perf board soldering and flat cable connections. The use of oxygen-free copper improves conductivity, which helps low-frequency audio signal transfers greatly, while also supporting a wide frequency range.
Specifications
| Wire Type | Multistrand 4/C Cable |
| Conductors | 7 |
| Single Wire Gauge(mm) | 0.132 |
| Colour | Grey |
| Length | 90 meter |
| Insulation Type | PVC |
| Wire Gauge | 26 AWG |
| Country of Origin | China |
