Description

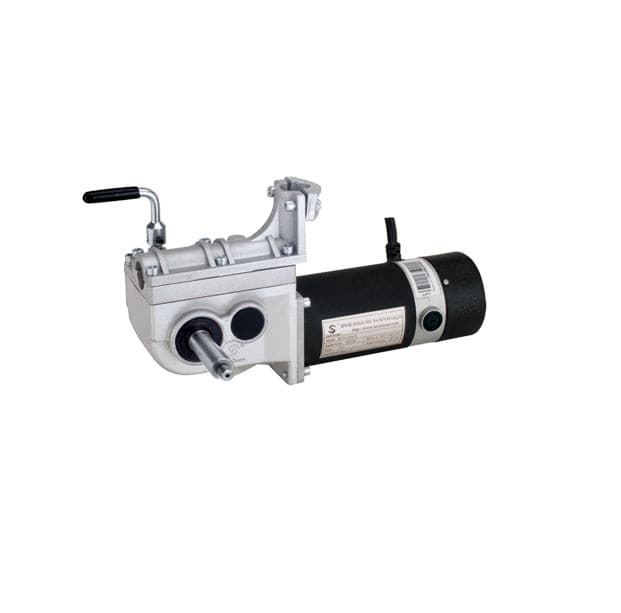

The SCD2-A PMDC motor is designed for electric wheelchair powertrains, offering efficient and reliable performance. With a power rating of 250W and a high-speed operation of 2650 RPM (Revolutions Per Minute), this motor provides sufficient torque and speed for wheelchair mobility. Its Permanent Magnet DC configuration ensures smooth and quiet operation, ideal for indoor and outdoor use. The motor's compact size and lightweight design make it suitable for integration into electric wheelchair systems without adding excessive bulk or weight. Overall, the SCD2-A motor delivers a balance of power, speed, and reliability, enhancing the functionality and usability of electric wheelchairs.
Specifications:
- Operating Voltage (VDC): 24
- Output Power (W): 250
- Dimensions (1) : 313mm
- Dimensions (2) : 82mm
- No-load Current (A): 3.6
- Motor Speed ±5% (RPM): 2650
- No-load Output Speed (RPM): 150
- Gear Ratio: 19 : 1
- Sound Level (dB(A)): 60
- Brake Torque (Nm): 33.4
- Gear Motor Rated Torque (Nm): 16.95
- Motor OD (mm): 79
- Output Shaft OD (mm): 17 (with 6mm keyway and key)
- Weight: 15.5lbs per motor
- Efficiency : 80%
