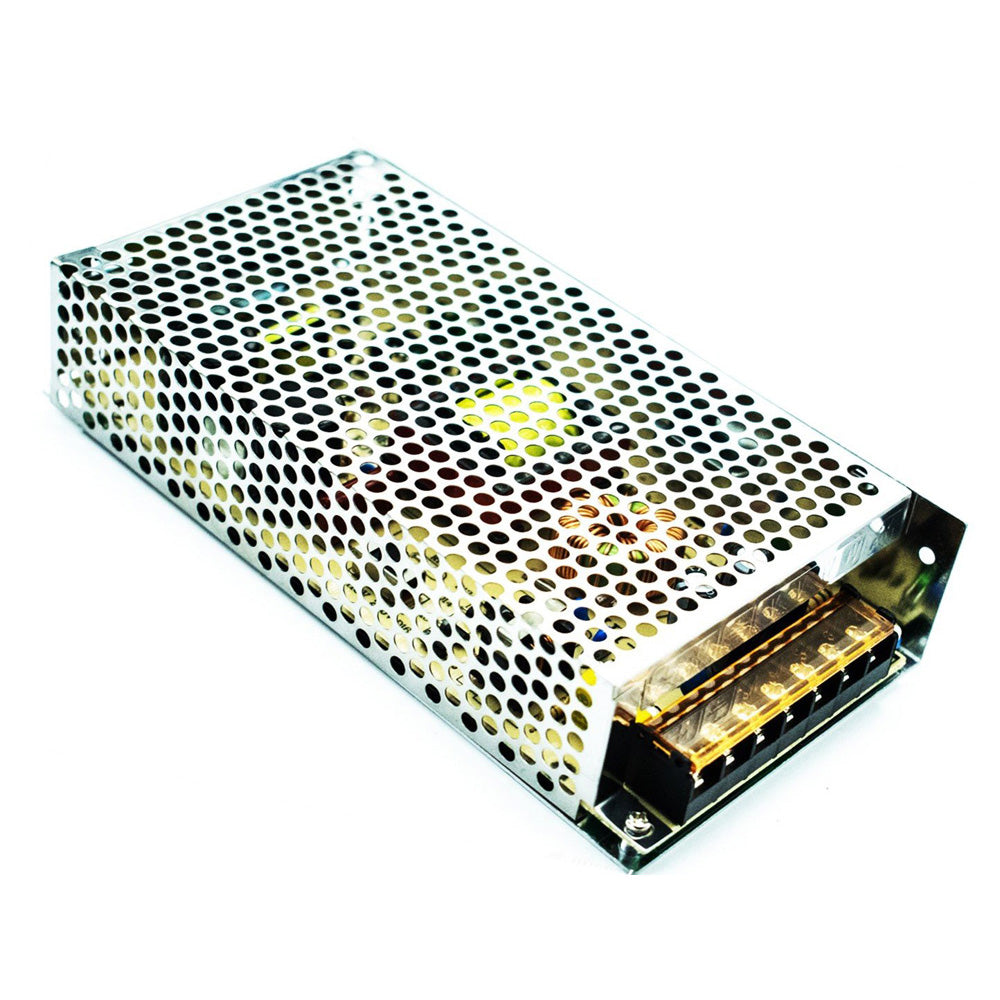

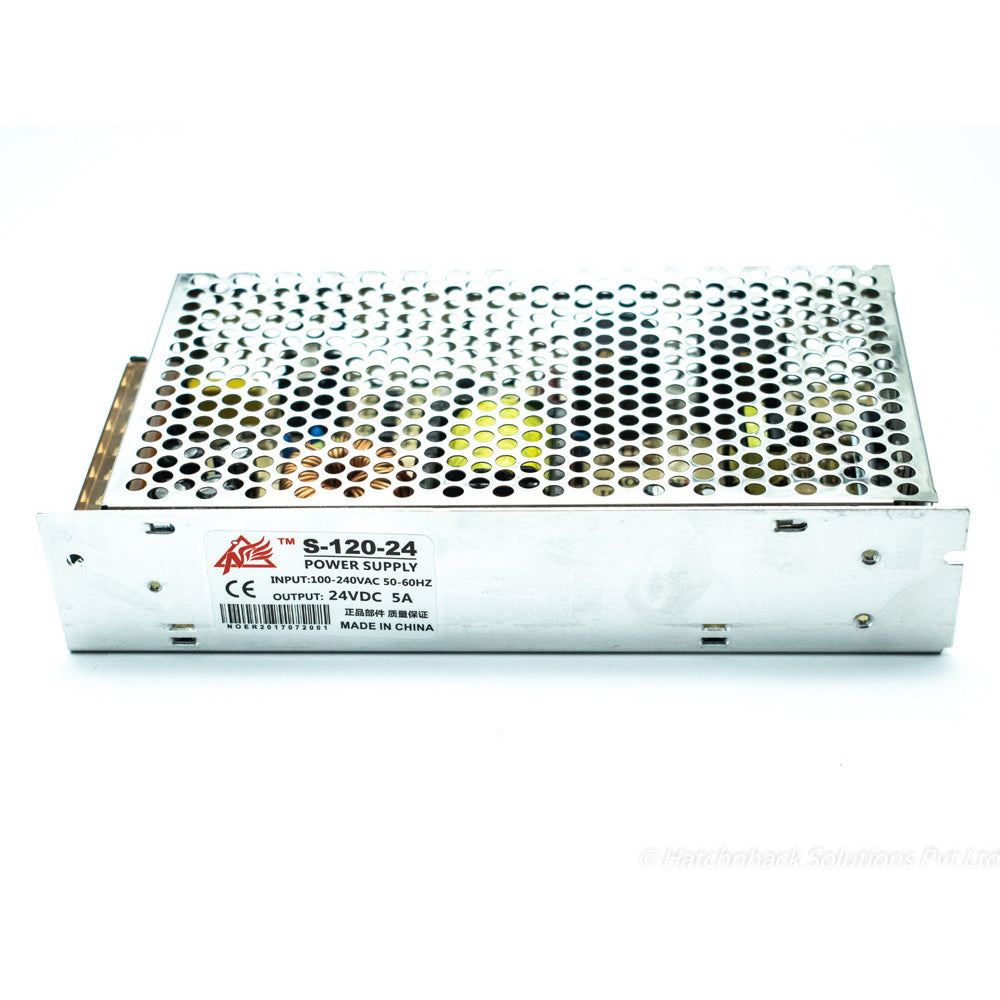

This is the switched mode power supply (SMPS) which convert 100-250V AC to 24V DC. It can provide upto 5A maximum current. All type of protections are provided in the supply.
- Output Over Voltage Protection, Over Current Protection, Short Circuit Protection and Surge Protected output are provided.
- Universal AC Range
- Metal Case is provided
- No Minimum load is required
- High Efficiency, Reliability & low energy consumption
|Input Voltage||100V-250V AC 50 / 60Hz|
|Output Voltage||24V DC, 5A|
|Protections||Output Over Voltage Protection, Over-Current Protection, Short Circuit Protection, Surge Protected Outputs|
|Dimensions (LxWxH)||200x105x42 (mm)|
|Country of Origin||China|
