Description

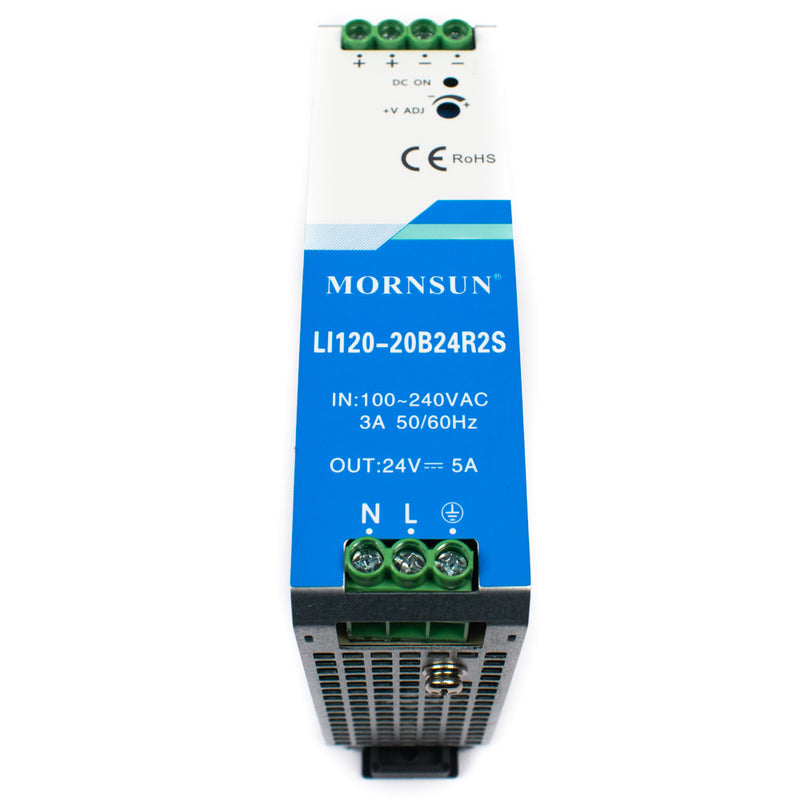

LI120-20BxxR2S is Mornsun AC-DC converter series featuring a cost-effective, energy-efficient green power supply solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise for industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments. These lightweight AC-DC converters have an extremely compact design and the standard rail installation for space-saving. With good EMC performance, compliant with international UL61010-1, UL508, EN62368-1 standards for EMC and safety.
FEATURES
- Universal 90 - 264VAC or 127 - 370VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -20℃ to +60℃
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage, over-temperature protection
- DIN rail TS-35/7.5 or 15 mountable
- Ultra-slim design: suitable for small chassis and narrow space installation
- Safety according to UL61010, UL508, EN62368
Specifications
| Brand | Mornsun |
| Model | LI120-20B24R2S |
| Output Voltage | 24V |
| Max. Output Current | 5A |
| Power | 120W |
| Adjustable Voltage Range | 24-28V |
| Country of Origin | China |
