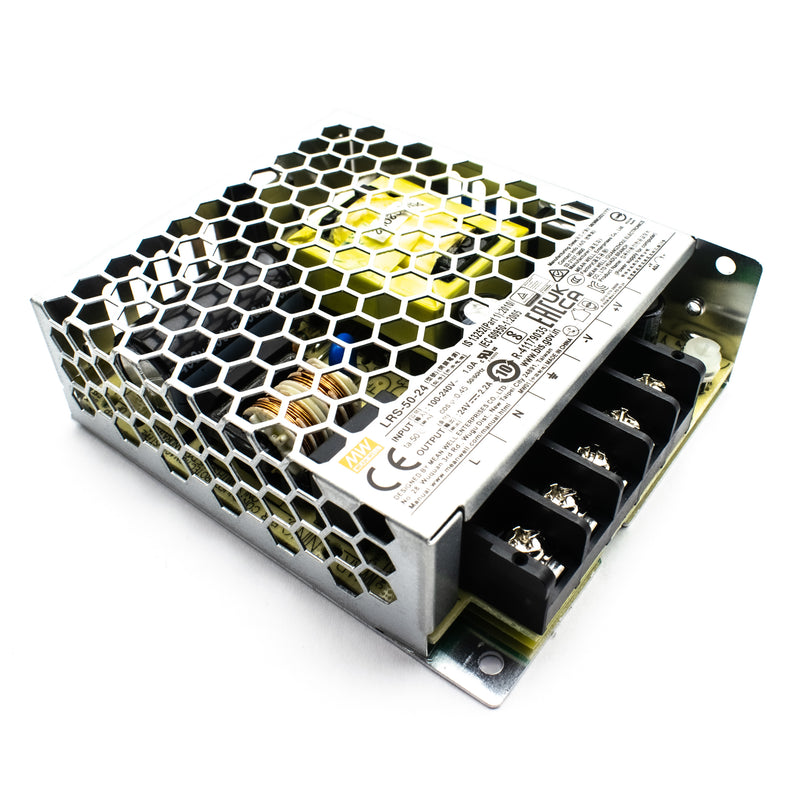

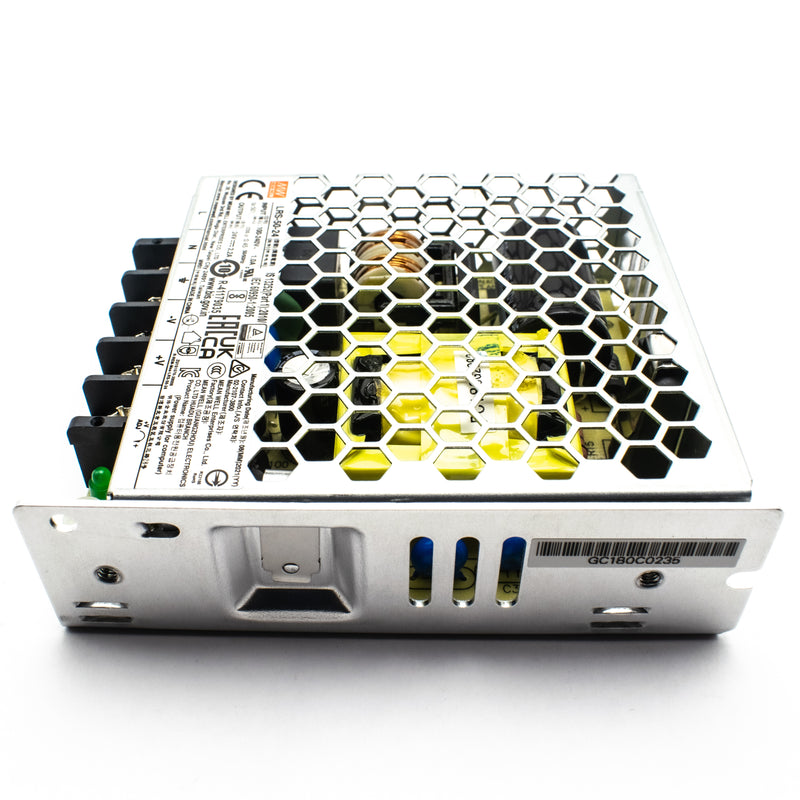

24V 50W Meanwell SMPS (LRS-50-24)
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great

24V 50W Meanwell SMPS (LRS-50-24)

In Stock - SKU: 4A30

899.00
[ ₹ 761.86 + ₹ 137.14 (18% GST) ]
₹ 999.00
  • Model: LRS-50-24
  • Brand: Meanwell
  • DC Voltage: 24V
  • Rated Current: 2.2A
  • Rated Power: 52W
  • Order within

Meanwell's LRS-50 series is a 50W single-output enclosed type power supply with 30mm of low profile design. The AC input is  85-264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 24V.  The SMPS has high efficiency up to 88%, the design is of metallic mesh case which enhances the heat dissipation of  LRS-50 that the whole series operates from -30°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.2W), which allows the end system to easily meet the worldwide energy requirement.

Meanwell's LRS-50 has complete protection functions and 5G anti-vibration capability; it complies with international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-50 series can be used for many purposes with the best performance from it.

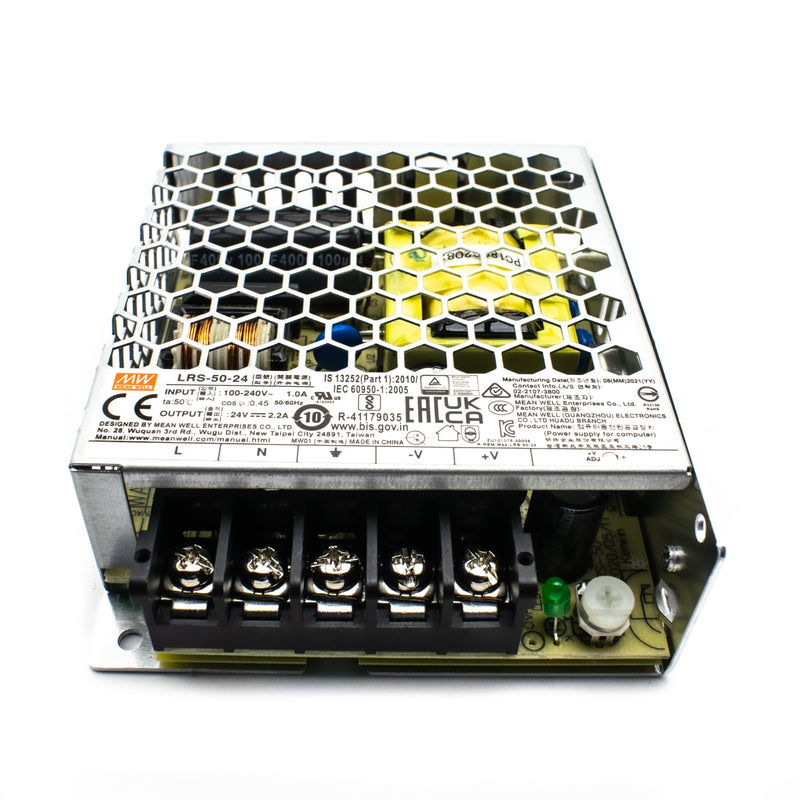

Pinout:

Pin No. Pin name Description
1,2 AC/L&N Supplied AC Voltage (85 ~ 264VAC)
3 FG GND
4 V- DC OUTPUT -V
5 V+ DC OUTPUT +V (24V)



Features:

  • Universal AC input/ Full range
  • Protections from Short circuit, Overload and Overvoltage
  • Cooling by free air convection
  • It has a LED for indicating power on.
  • 100% full load burn-in test
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances
  • Withstand 5G vibration test
  • No-load power consumption<0.2W
  • High efficiency, long life and high reliability

Meanwell's LRS-50 series is a 50W single-output enclosed type power supply with 30mm of low profile design. The AC input is  85-264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 24V.  The SMPS has high efficiency up to 88%, the design is of metallic mesh case which enhances the heat dissipation of  LRS-50 that the whole series operates from -30°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.2W), which allows the end system to easily meet the worldwide energy requirement.

Meanwell's LRS-50 has complete protection functions and 5G anti-vibration capability; it complies with international safety regulations such as TUV EN60950-1, EN60335-1, EN61558-1/-2-16, UL60950-1 and GB4943. LRS-50 series can be used for many purposes with the best performance from it.

Pinout:

Pin No. Pin name Description
1,2 AC/L&N Supplied AC Voltage (85 ~ 264VAC)
3 FG GND
4 V- DC OUTPUT -V
5 V+ DC OUTPUT +V (24V)



Features:

  • Universal AC input/ Full range
  • Protections from Short circuit, Overload and Overvoltage
  • Cooling by free air convection
  • It has a LED for indicating power on.
  • 100% full load burn-in test
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70°C
  • Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances
  • Withstand 5G vibration test
  • No-load power consumption<0.2W
  • High efficiency, long life and high reliability
Input Voltage 115V~240V AC
Output Voltage 24V DC
Output Current 2.2A
Rated Power 52W
Efficiency 88%
Operating Temperature -30°C to 70°C
Size 99x82x30mm
