Description

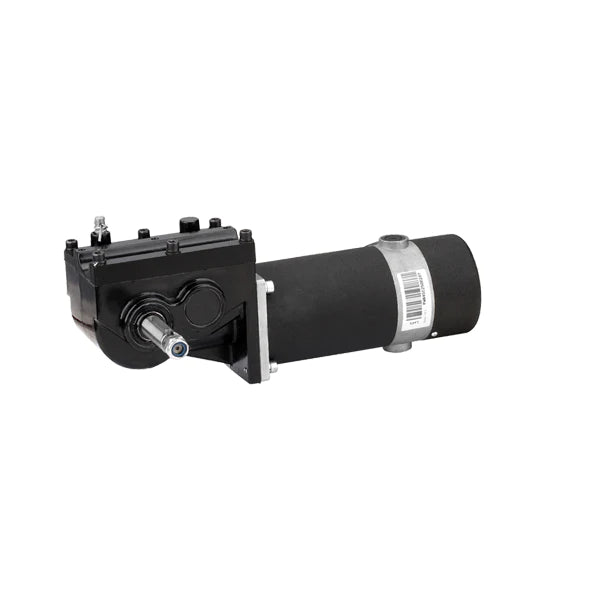

The 200W 4400RPM Electric Wheelchair Powertrain PMDC Motor, designated as SCD2-B, is a compact and powerful motor designed specifically for electric wheelchair applications. With its high RPM rating of 4400, this motor provides efficient and smooth operation, ensuring a comfortable and responsive driving experience for wheelchair users. The PMDC (Permanent Magnet DC) design offers reliability and durability, making it suitable for long-term use. Its 200W power rating strikes a balance between performance and energy efficiency, ideal for electric wheelchair powertrains. The SCD2-B motor is engineered to meet the demanding requirements of wheelchair mobility, delivering dependable performance and ease of use.
Specifications:
- Operating Voltage (VDC): 24
- Output Power (W): 200

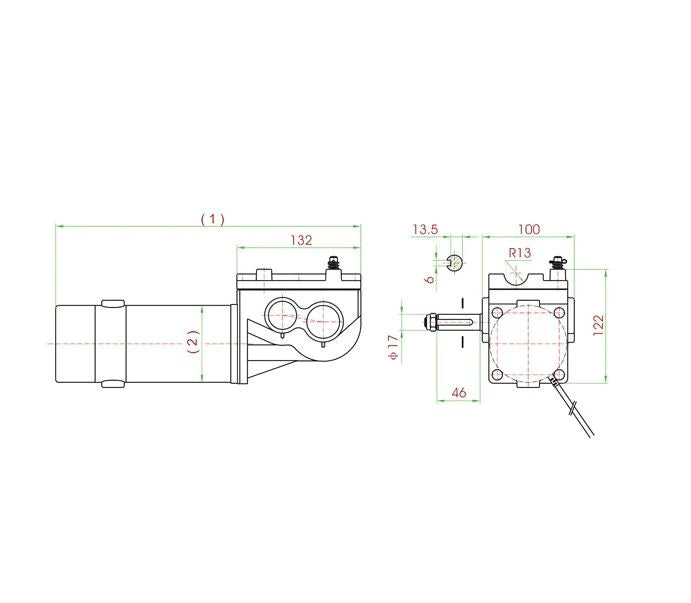

- Dimensions (1) : 325mm
- Dimensions (2) : 82mm
- No-load Current (A): 3.6
- Motor Speed ±5% (RPM): 4400
- No-load Output Speed (RPM): 135
- Gear Ratio: 32 : 1
- Sound Level (dB(A)): 60
- Brake Torque (Nm): 33.4
- Gear Motor Rated Torque (Nm): 16.95
- Motor OD (mm): 79
- Output Shaft OD (mm): 17 (with 6mm keyway and key)
- Weight: 15.5lbs per motor
- Efficiency : 80%
