Description
LI30-20BxxPR2 is Mornsun’s AC-DC series featuring a cost-effective, energy-efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international IEC62368 standards for EMC and safety specifications that meet IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These lightweight AC-DC converters also have an extremely compact design for space-saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.
FEATURES
- Universal 85-264VAC or 120-370VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range -40℃ to +70℃
- High I/O isolation test voltage up to 4000VAC
- Industrial product technology design
- Over-voltage class III (Designed to meet EN61558-1 safety standards)
- Low standby power consumption, high efficiency
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Withstand 300VAC surge input for 5s
- DIN rail TS35X7.5/ TS35X15 mountable
Specifications
| Brand | Mornsun |

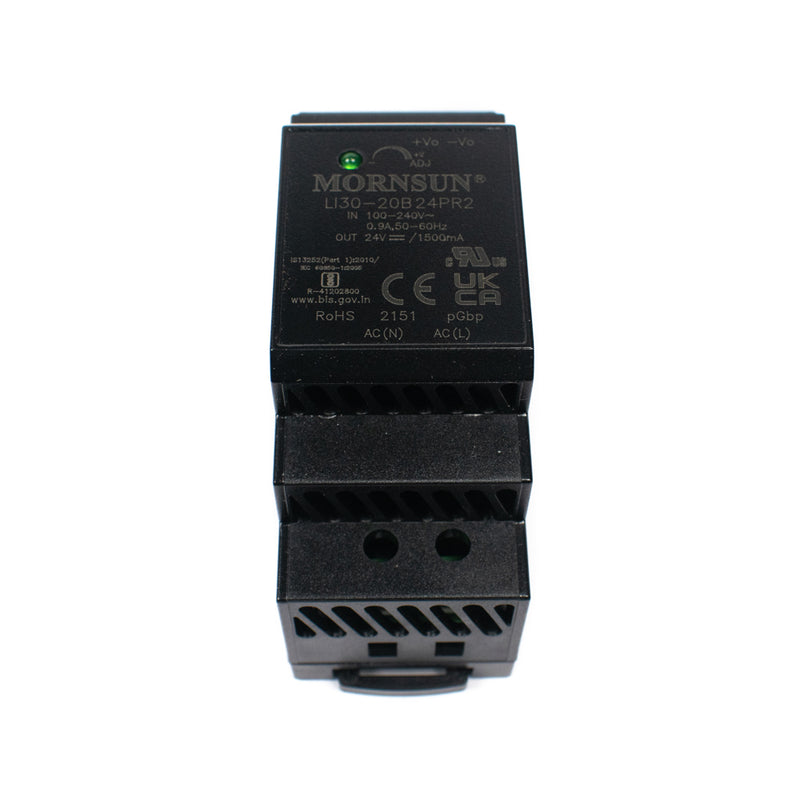

| Model | LI30-20B24PR2 |
| Output Voltage | 24V |
| Max. Output Current | 1.5A |
| Power | 36W |
| Adjustable Voltage | 21.6-29V |
| Country of Origin | China |
