Description

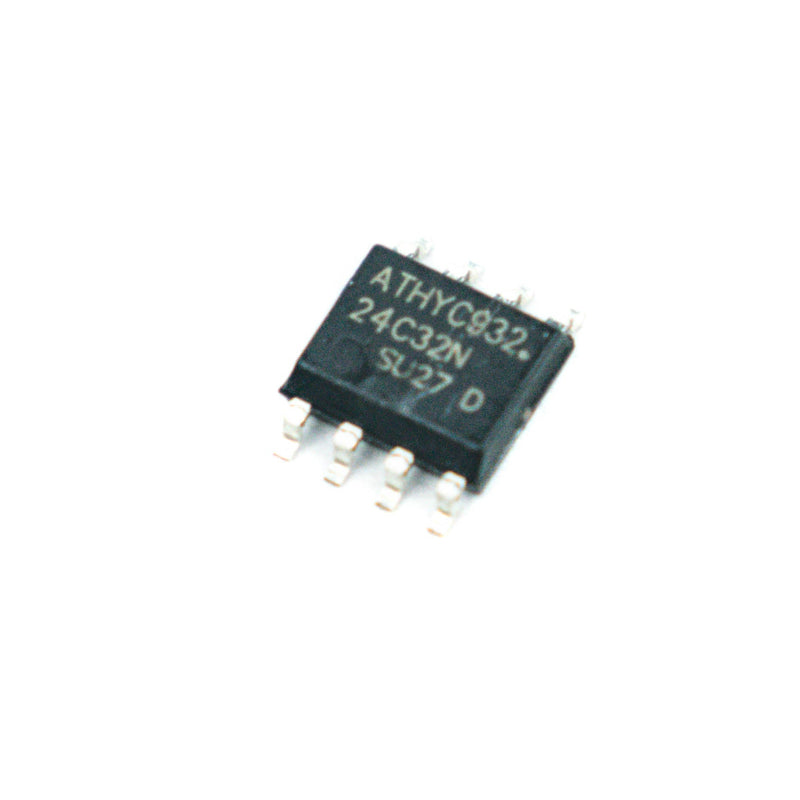

The 24C32 provides 32,768 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 4096 words of 8 bits each. The device’s cascadable feature allows up to 8 devices to share a common 2- wire bus. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. And it uses a 2-wire serial interface.
Features
- 32K Memory, 4k x 8 bits
- Two-Wire Serial Interface
- Write Protect Pin for Hardware Data Protection
- Wide Supply Voltage 2.7V to 5.5V
- Partial Page Writes Allowed
- Data Retention 100 years and 1 Million Write Cycles
Specification
| Model |
24C32 |
| Packaging type | SMD |
| Memory | 32K bits |
| Operating Temperature | -55°C to +125°C |
| Storage Temperature | -65°C to +150°C |
| Operating voltage | 2.7 V - 5.5 V |
|
Current consumption Stand by Active |
2 μA at 5.5V 2-3 mA at 5.5 v |
| Quantity | 500 |
| Country of Origin | China |
