Description

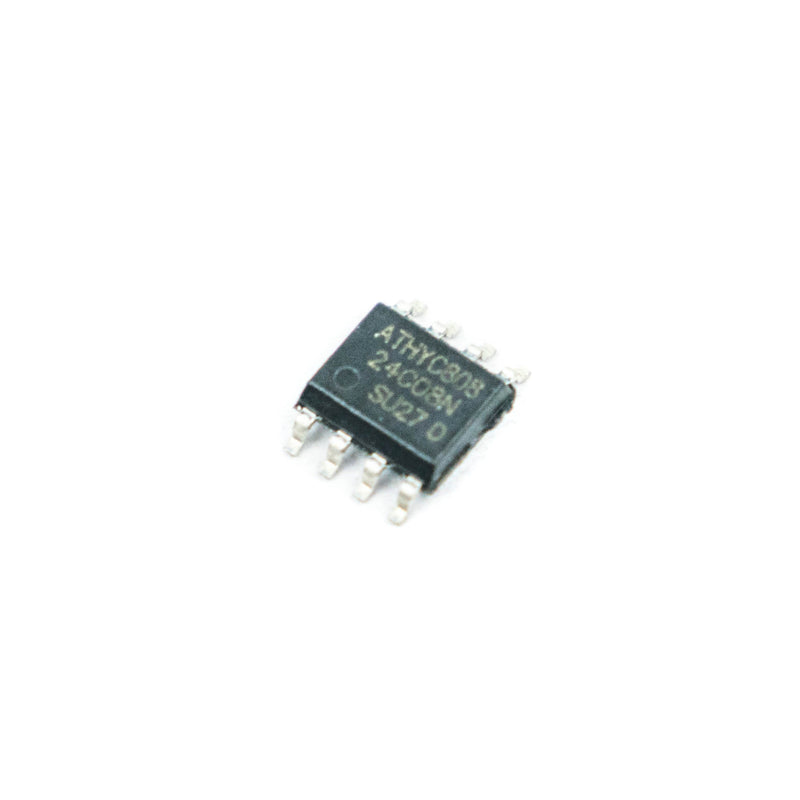

The 24C08 provides 8192 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 1024 words of 8 bits each . The device is optimized for use in many industrial and commercial applications where low- power and low voltage operation are essential. In addition the 24C08 IS is available in 1.8 (1.8V to 5.5 V) version.
Features
- Low-voltage and Standard-voltage Operation 1.8 to 5.5V
- Operating Ambient Temperature: -40°C to +85°C
- Internally organized 1024 X 8 (8K)
- Two-wire Serial Interface
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Bidirectional Data Transfer Protocol
Specification
| Memory | 1024 X 8 (8K) |
| DC Supply Voltage | 4.5V to 5.5V |
| Mounting style | SMD |
| Ambient temperature with power applied | -65°C to +125°C |
| ESD protection on all pins | ≥ 4 kV |
| Storage temperature | -65°C to +150°C |
| Quantity | 500 |
| Country of Origin | China |
