Description

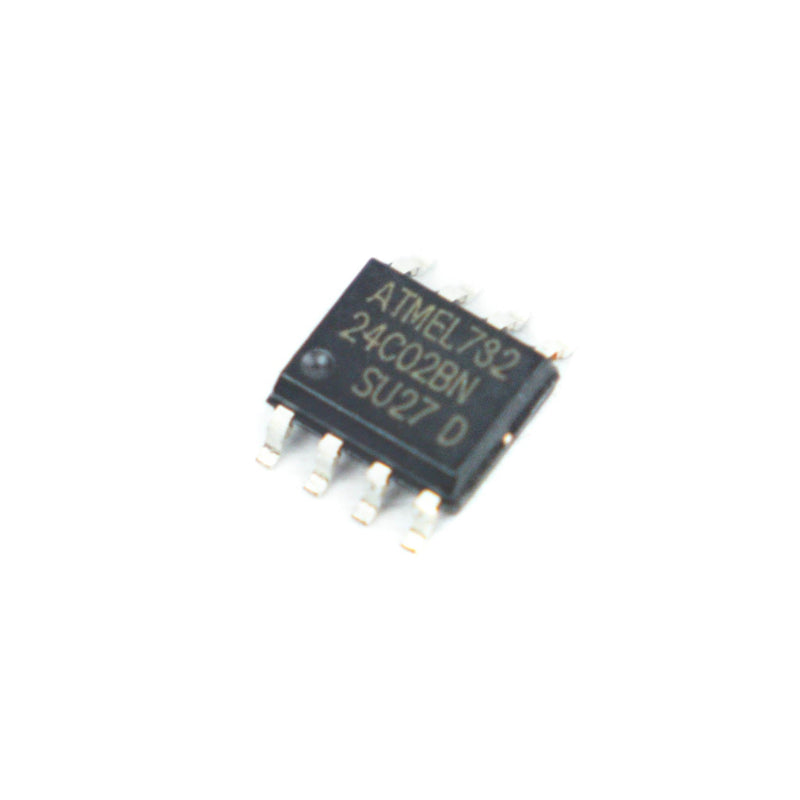

The 24C02 has a total of 2048 bits of serial electrically erasable and programmable read-only memory (EEPROM), which is divided into 256 words of 8 bits each. The device is designed for a variety of industrial and commercial applications that require low-power and low-voltage operation. A 1.8 (1.8V to 5.5 V) version of the 24C02 IS is also available.
Features
- Low voltage and standard voltage operation (1.8 V to 5.5 V)
- Operation ambient temperature -40°C to +85°C
- Two wire serial interface
- Schmitt trigger filtered input for noise suppression
- Bidirectional data transfer protocol
- Data Retention >200 Years
Specification
| Model | 24C02 |
| Memory | Single block of 256 x 8-bit memory |
| Supply voltage |
4.5V - 5.5V |
| Mounting Style | SMD |
| Ambient Temperature (when power is applied) | 40°C to +125°C |
| Storage Temperature | -65°C to +150°C |
| ESD protection on all pins | ≥ 4 kV |
| Quantity | 500 |
| Country of Origin | China |
