Description

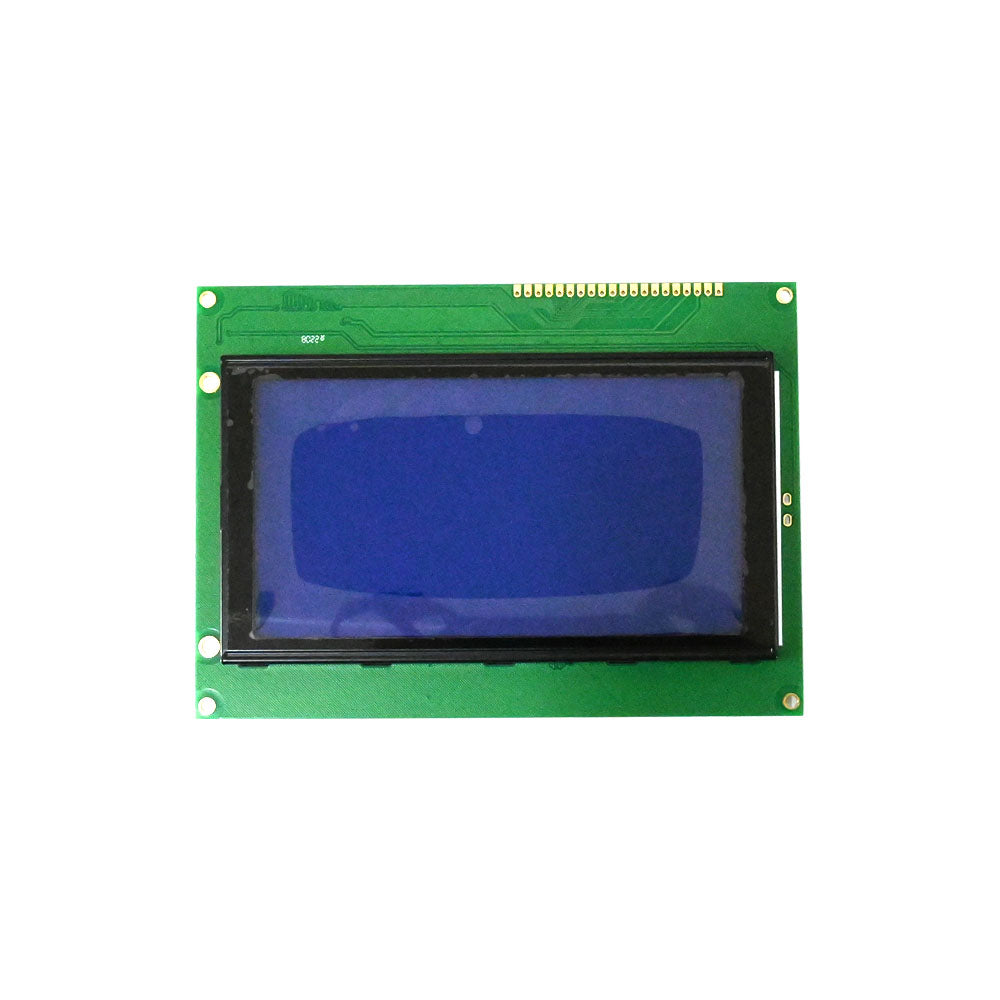

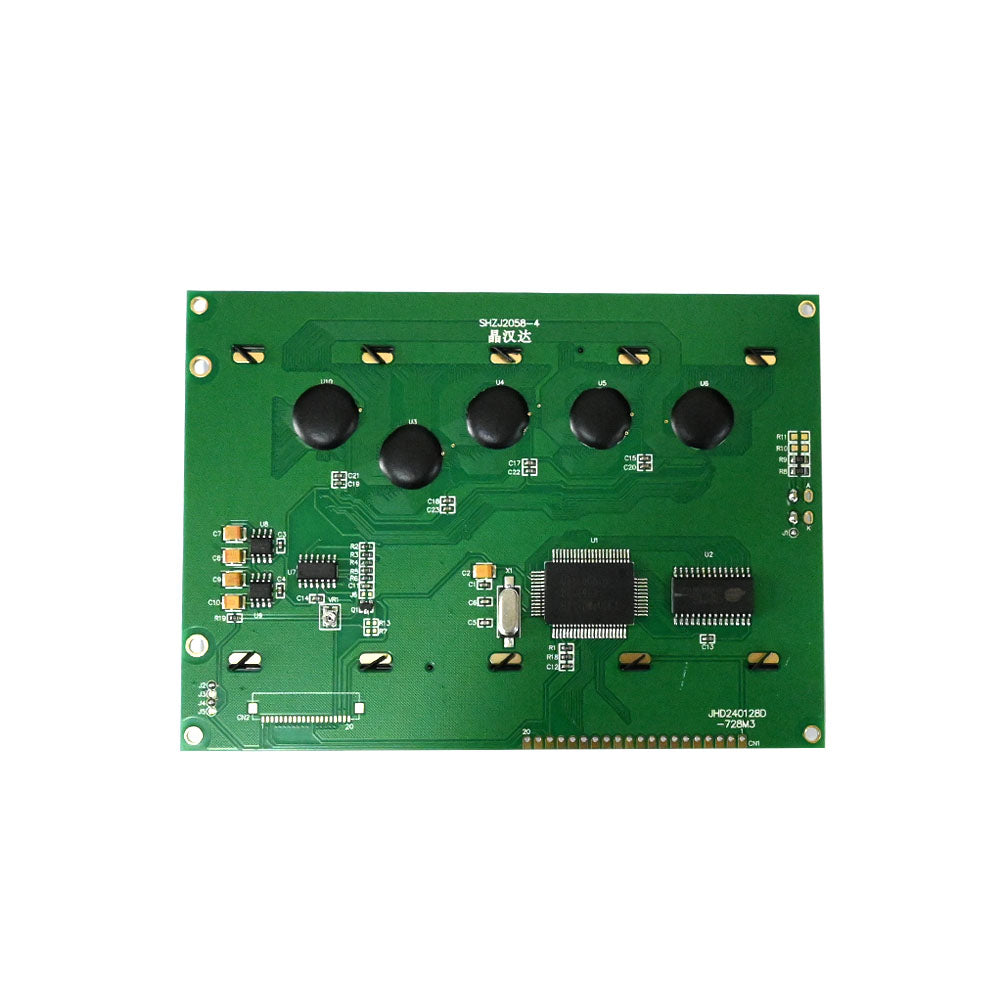

It's a 240x128 Character Blue Backlight LCD Display Module with UCi6963 controller. The display size is 240x128 with very clear and high contrast white text on a blue backlight. It is ideal for Arduino-based projects. This LCD Display with blue backlight is very simple to interface with Arduino or other microcontrollers. The values displayed on the display can be simple text or numerical values read by the sensors, such as temperature or pressure, or even the number of cycles that the Arduino is performing. It has UCi6963 controller. The UCi6963 is a dot matrix LCD Controller, that is fully compatible with T6963C. It supports various LCD Driver for standard or custom-made LCD module.
Features:
- 240x128 Dots
- Blue Backlight
- Standard Type
- Works with almost any Microcontroller
- Displays | LCD Display | 240x128 LCD Display | Robotics | Panel Display | Prototyping | DIY Projects
Specifications:
| Model No. | JHD240128D-728M3 |
| Product | LCD Display |
| Input Voltage | 5 volts |
| Backlight | Blue |
| Character Colour | White |
| Characters x Rows | 240x128 |
| Dimensions | 144x104 mm |
| Country of Origin | China |
