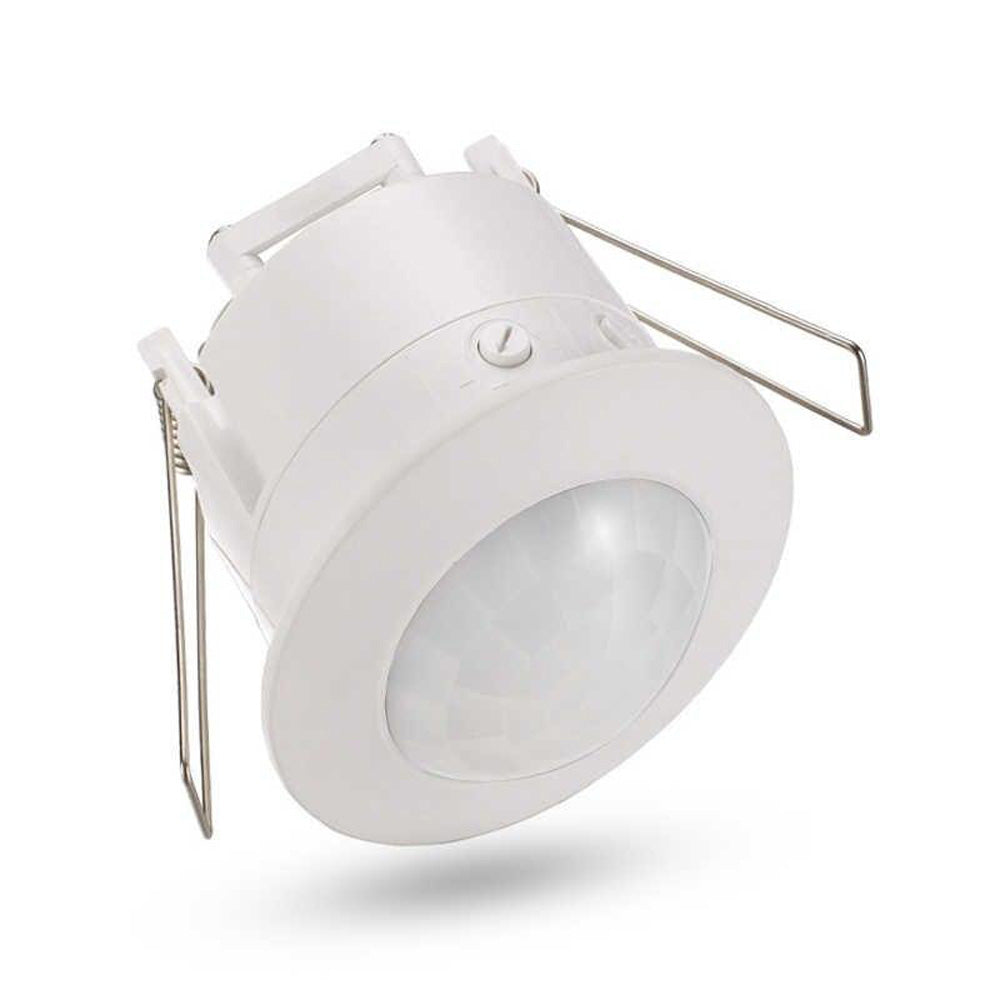

Description
The product adopts a good sensitivity detector, integrated circuit. It gathers automatism, convenient safe, saving-energy and practical functions. It utilizes the infrared energy from humans as a control-signal source, it can start the load at once when one enters the detection field. It can identify day and night automatically. It is easy to install and used widely.
Functions
Identify day and night automatically. Can adjust ambient light according to your desire, when turning to SUN (max), it will work in the daytime and at night. When turning to MOON (min), it will only work under less than 3LUX circumstances. As for Adjustment, please refer to the testing way.
Time-delay is added continually: when it receives the second induction signal after the first inductor, it will compute time once more on the rest of the first time-delay basic (Set time).
Time-delay adjustment: it can be set according to your desire. The minimum is 10±3 sec; the maximum is 7±2min.
Installation
Turn off the power.
Removing the transparent vinyl cover that is at the bottom of the sensor.
Losing the screws in the connection terminal, connecting the power and rated load to the connection terminal of the sensor.
Tighten the screws, put the transparent vinyl cover into the original station.

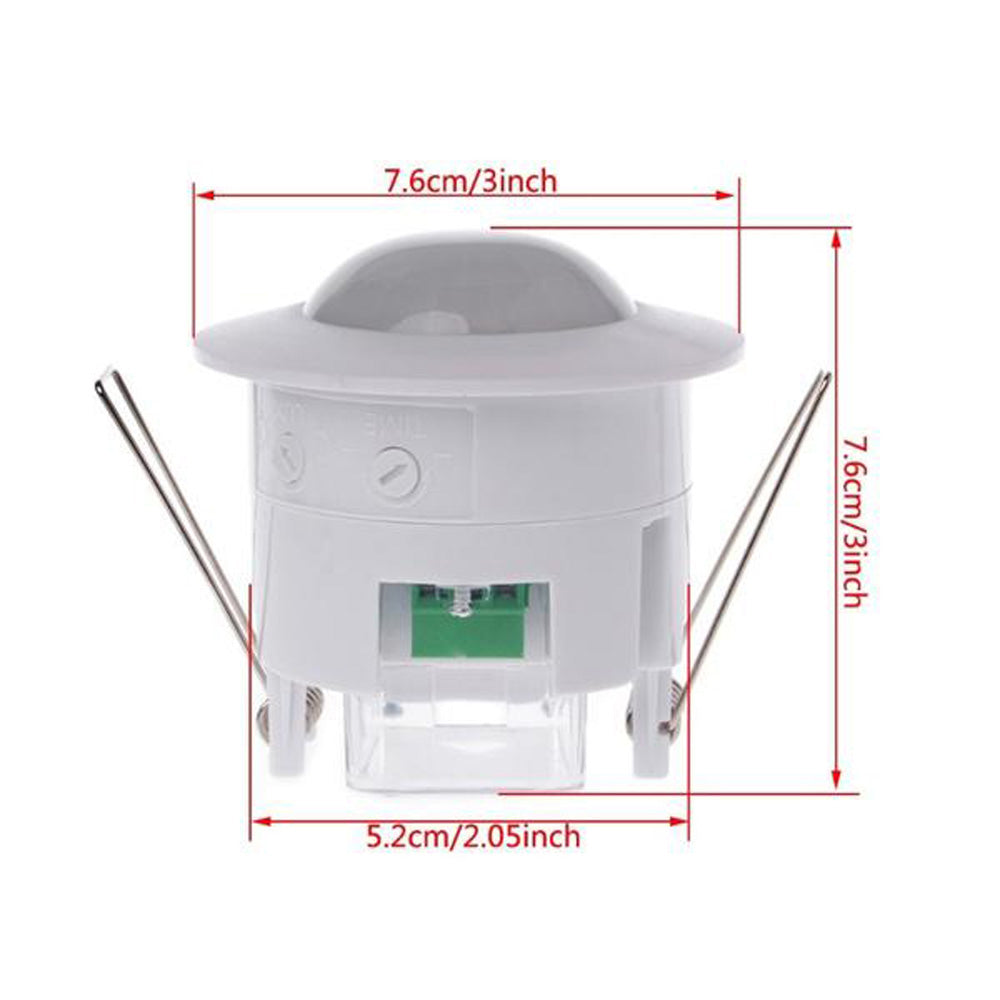

Folding the metal spring of the sensor upwards, until they are in the "I" position with the sensor, then put the sensor into the hole or installation box that is in the ceiling, the size is similar to the item. Releasing the spring, the sensor will be set in this installation position.
After finishing the installation, the sensor could be connected to the power and testing it.
Test
Turn the TIME knob anti-clockwise on the minimum, turn the LUX knob clockwise on the maximum (Sun). TIME LUX Turn on the power, the sensor will be electrified and warm-up, 30 sec later, the item will be entered into the working estate. 5-10 seconds after the light goes out for the first time and then sensing, the load should be worked. Turn the LUX knob anti-clockwise on the minimum (moon). The inductor load should not work after the load stop working. If you cover the detection window with the opaque objects (towel etc), the load work .under no induction signal condition, the load should stop working within 5-15sec.
Specification
| Power Sourcing | 220V-240V AC |
| Power Frequency | 50Hz |
| Detection Range | 360° |
| Working Temperature | -10° to 40° C |
| Ambient Light | 3-2000LUX (Adjustable) |
| Working Humidity | <93%RH |
| Time-Delay | min. 10sec±3sec and Max. 7mint±2min |
| Installing Height | 2.5m-3.5m |
| Power Consumption | 0.45W (work) and 0.1W (static) |
| Rated Load | 1200W Max. Tungsten and 300W Max. Fluorescent |
| Detection Motion Speed | 0.6-1.5m/s |
| Detection Distance | 6m max (<24° C) |
