Description

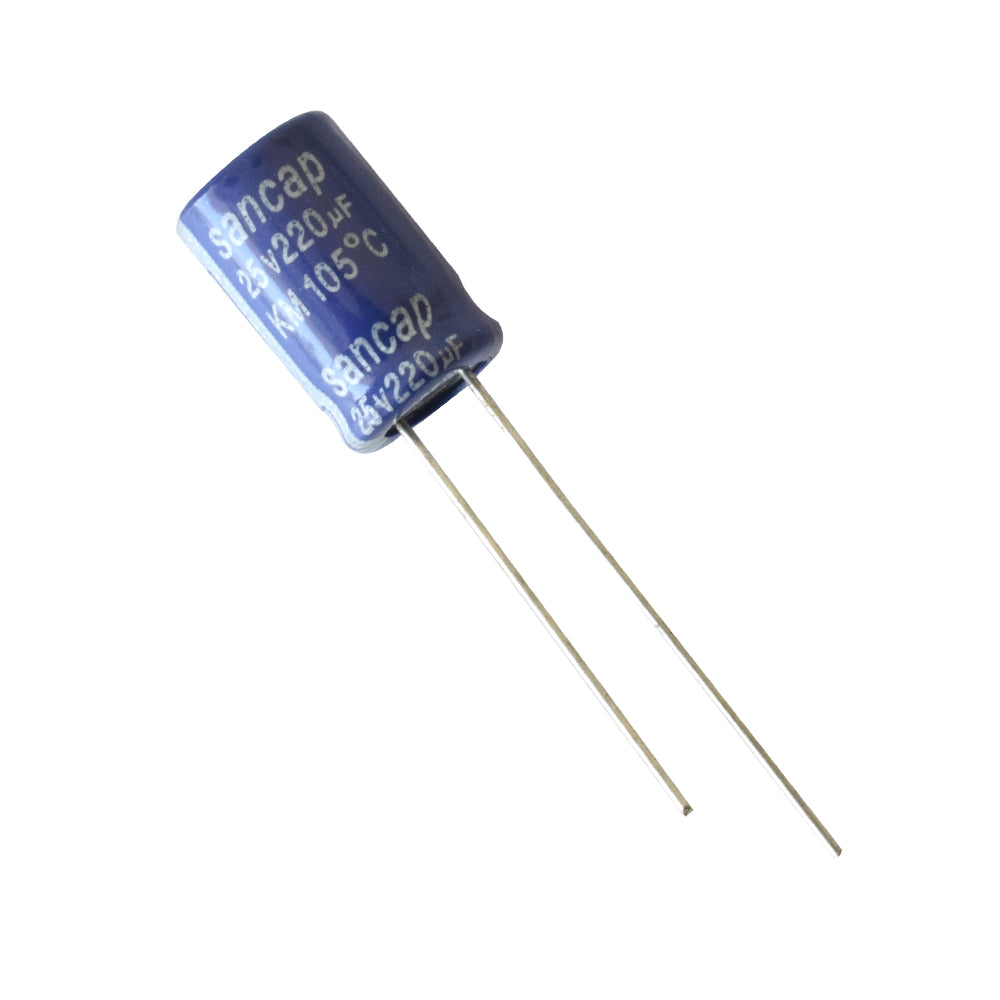

This is a 220µF 25V Electrolytic Capacitor made with high purity Etched and Formed Aluminum foil with aluminum oxide dielectric barrier as anode foil. An aluminum cathode foil is concentrically wound with a layer of condenser-grade paper in between. After impregnation with electrolyte, the wound element is housed in an Aluminium can and then hermetically sealed using a rubber bung to form an Aluminium electrolytic capacitor. The most crucial advantage of electrolytic capacitors is the higher capacitance ratio to dimensions compared with other capacitors. This is principally due to the microscopically thin dielectric layer, which produces large capacitance per unit area.
Specification
| Make |
Not Specified |
| Capacitor Value | 220µF |
| Voltage | 25V |
| Type | Electrolytic Capacitor |
| Size | 8x12mm |
| Max Operating Temperature | 105°C |
| Tolerance | ±20% |
| Mounting Type | Through Hole |
| Quantity |
100 |
| Country of Origin | China |
