Description

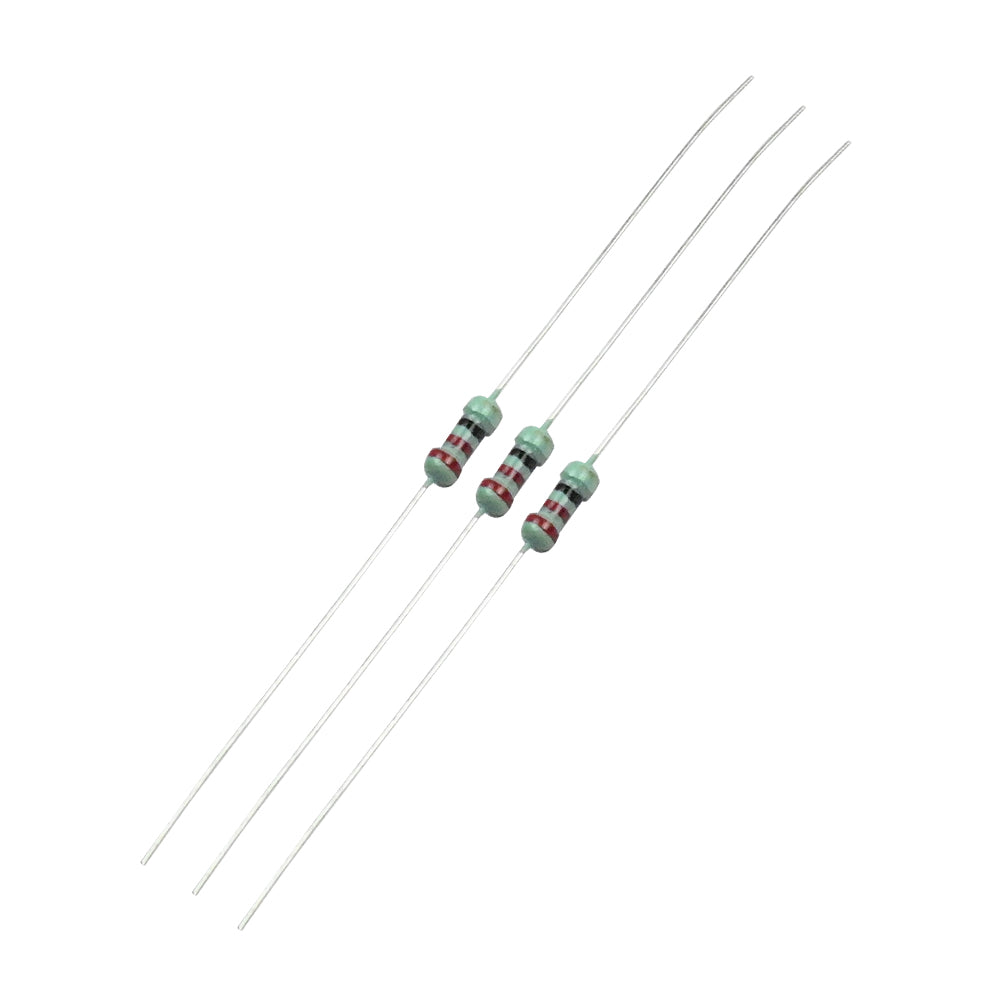

These are Carbon Film Resistor with a value of 22 ohm 1/4W and tolerance of ±5%. These Axial resistors are cylindrical in shape with copper plated steel leads extending from each end. Carbon Film Resistor limit the flow of electric current using a Carbon Film. The printed colour code rings, which are Red, Red, Black and Gold for these 22 Ohm resistors, make it easy to identify the value of these resistors.
Applications
- Its used in Current limiting circuit
- Its used in voltage divider applications
- Its used for the biasing circuit
- Resistors are used in sensor circuits and measurement systems to convert physical quantities such as temperature, light, or strain into electrical signals
- It can be employed to drop voltage across a circuit, acting as voltage dividers or voltage-dropping elements.
Features:
- Its mounting style is Through hole
- Its has two pins
| Specifications | |
|---|---|
| Resistance | 22 Ohm |
| Tolerance | 5% |
| Mounting Type | Through hole |
| Type | Carbon Film Resistor |
| Power | 1/4W |
