Description
This Three Wheel DIY Programmable Multiple Project Car Chassis Kit is the perfect mechanical platform for your robotics projects. All of the hardware and mechanical components needed to make your robot are included in this kit, including motors, motor driver, wired remote, IR Transmitter and Receiver, LDR Module, Wifi Module, wheels, chassis, nuts & bolts, and more. Simply connect your electronics (Arduino and Motor Driver) and begin programming your robot with different modules. It has a big surface area with predrilled holes for installing sensors and electronics according to your needs. This robot chassis allows you to quickly prepare your mechanical platform. Instead of making your own chassis, you can focus your time and effort on programming your robot.
Wheeled Robots are the most common robots because they are simple to create, maintain, and operate. This kit is the simplest robot platform to construct and programme. Beginners and even experts can use this kit.
Features
- Easy and Safe
- Learning with fun
- Encourage creative thinking
- Best for beginners
Specifications
| Wheel Diameter | 66mm |
| Chassis Size | 177mm*115mm |
| Source/Battery Required | Yes |
| Battery Included |
No |
| BO Motor L-Shape ( DC Plastic Gear Motor) Speed | 150rpm |
| USB Type | B-Type USB |
| USB Cable Include |
Yes |
| Included Wire(Female-Female) | 20 |
| DTMF Included | Yes |
| LDR Included | Yes |
| IR Included | Yes |
| Motor Driver Included | Yes |
| WIFI Included | Yes |
| Sound Sensor Included | Yes |
| RF Receiver and Transmitter | Yes |
| Programmable Board | Yes |
| Country of Origin | China |

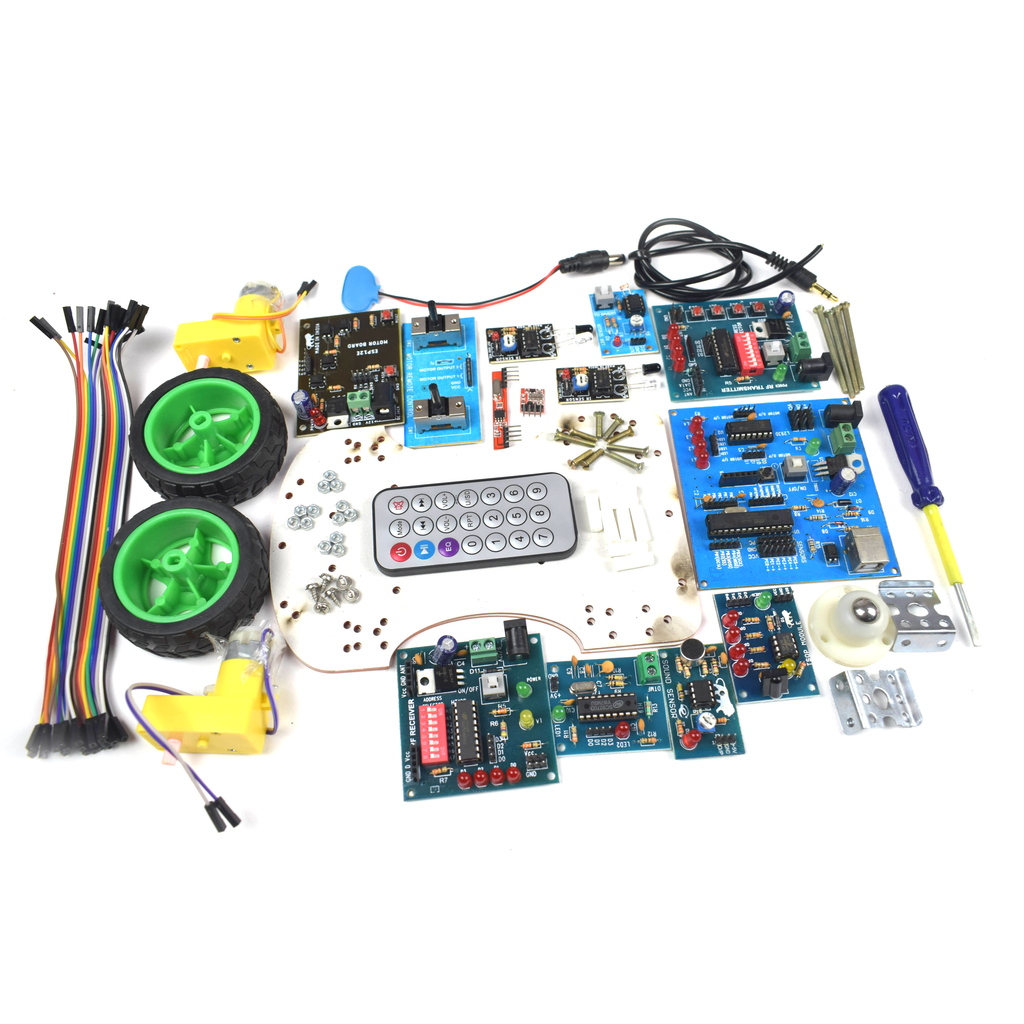

Package includes:
- 2 x Acrylic Car chassis.
- 2 x BO L-Shape Motor
- 2 x Wheel (Tyre)
- 1 x Caster (or Castor) Wheel
- 1 x Main Programming Board with inbuild Motor Driver
- 1 x Wired Motor Remote Control Module

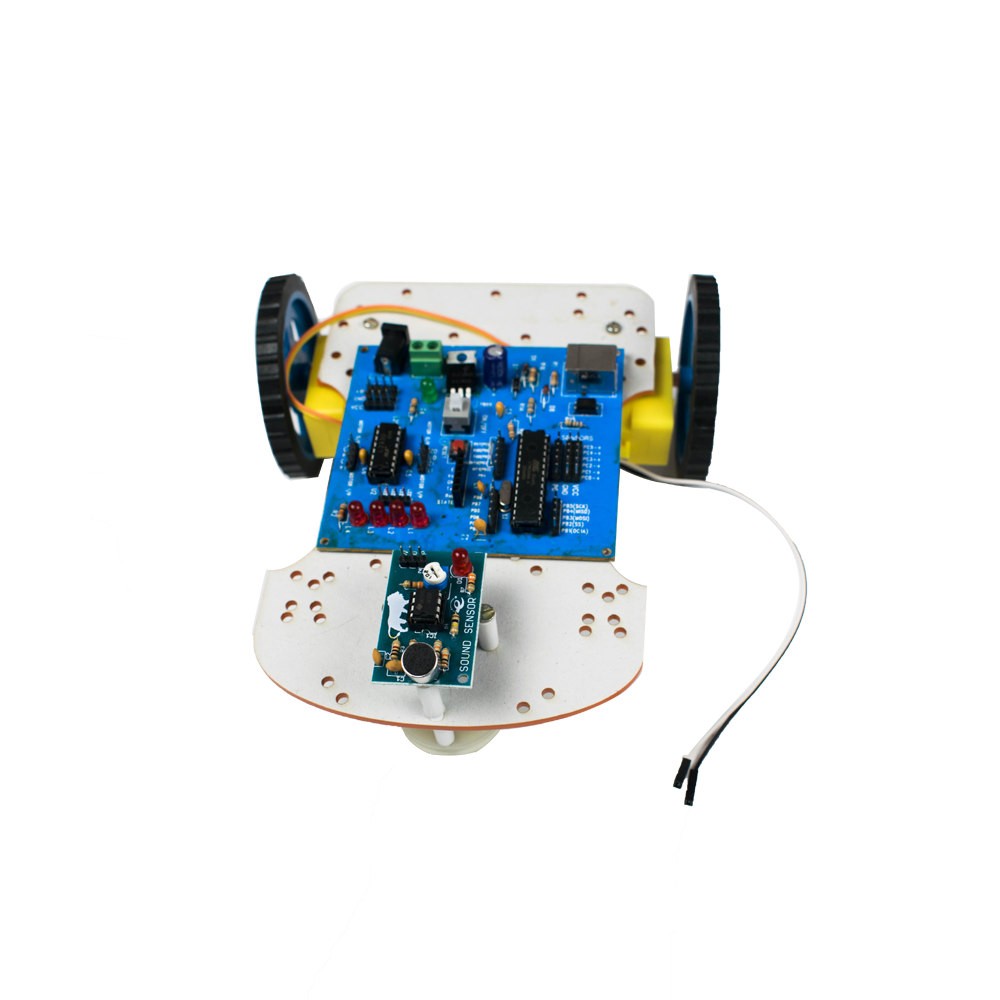

- 1 x Sound Sensor Module

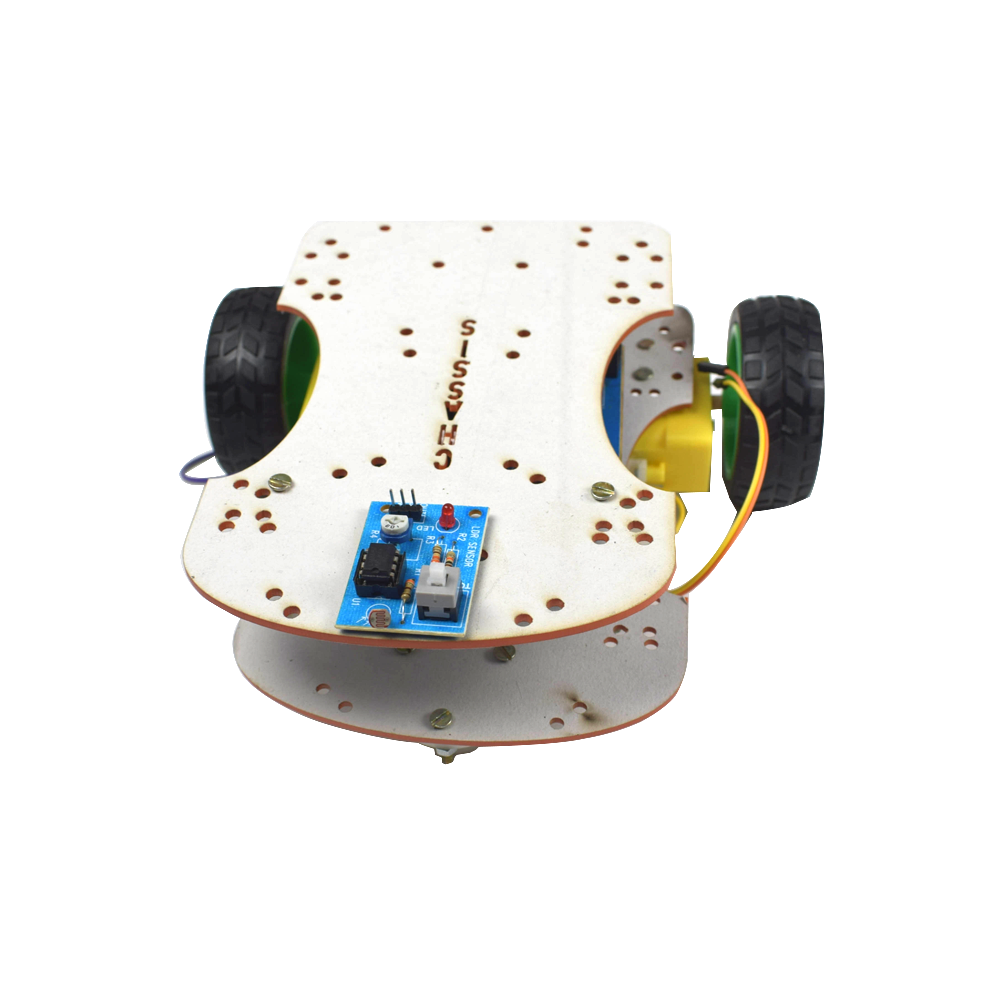

- 1 x LDR Sensor Board
- 1 x ESP12E WIFI MOTOR BOARD
- 1 x IR Tx(Remote) and Rx(TSOP Receiver) Board

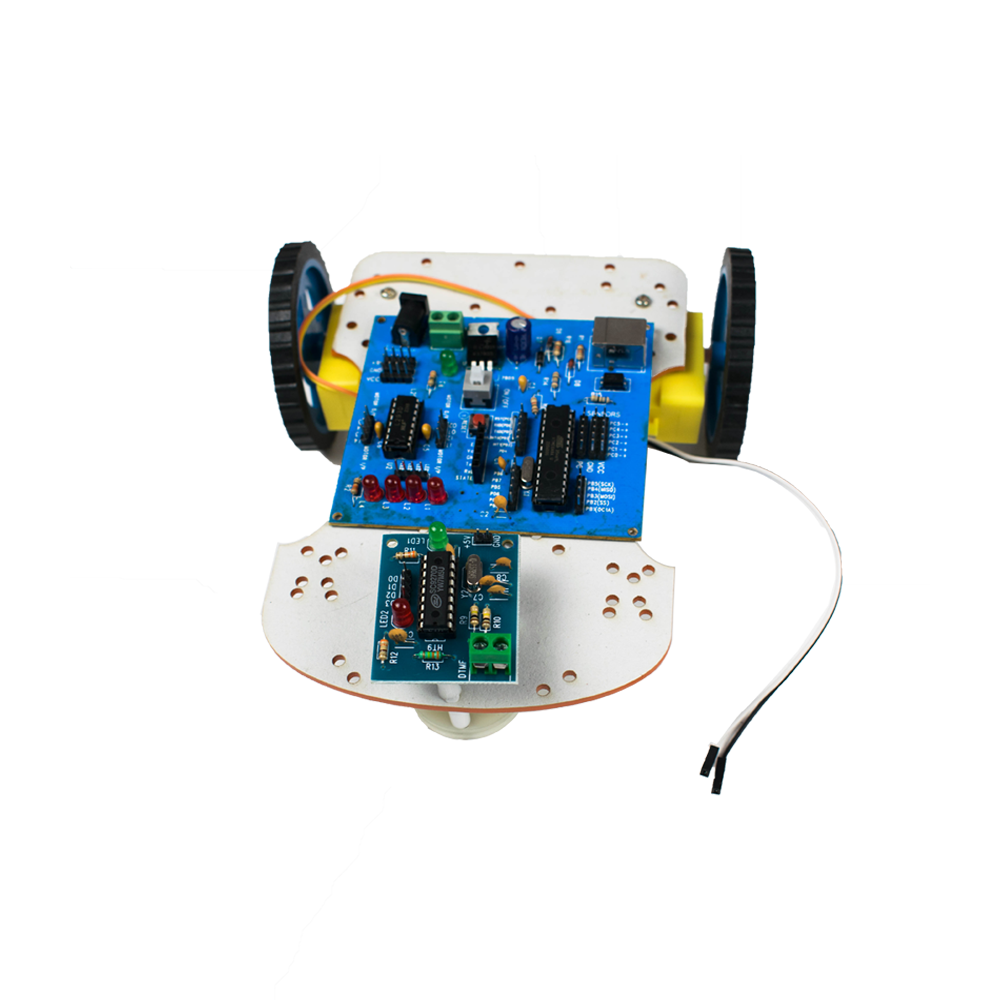

- 1 x DTMF Board

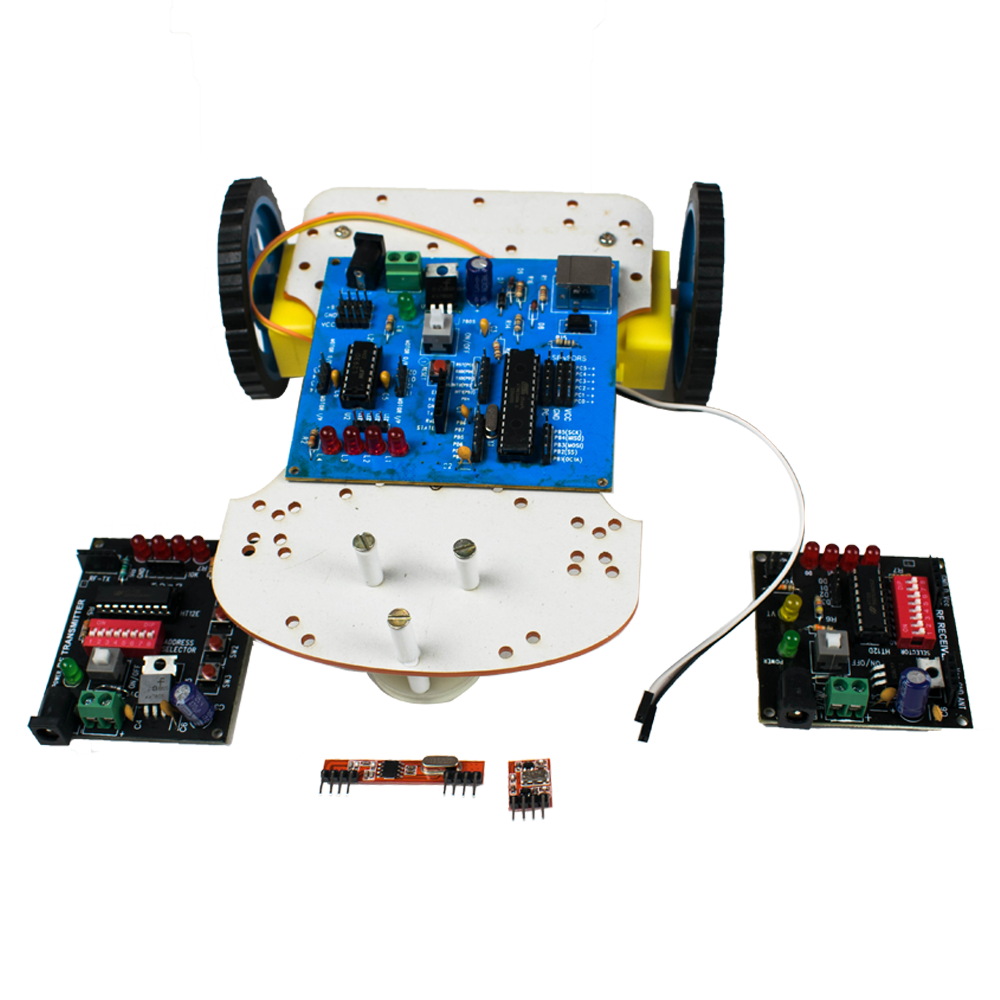

- 1 x RF Transmitter and Receiver with (RW-639, RW-630 Module)
- 20 Wire Connection

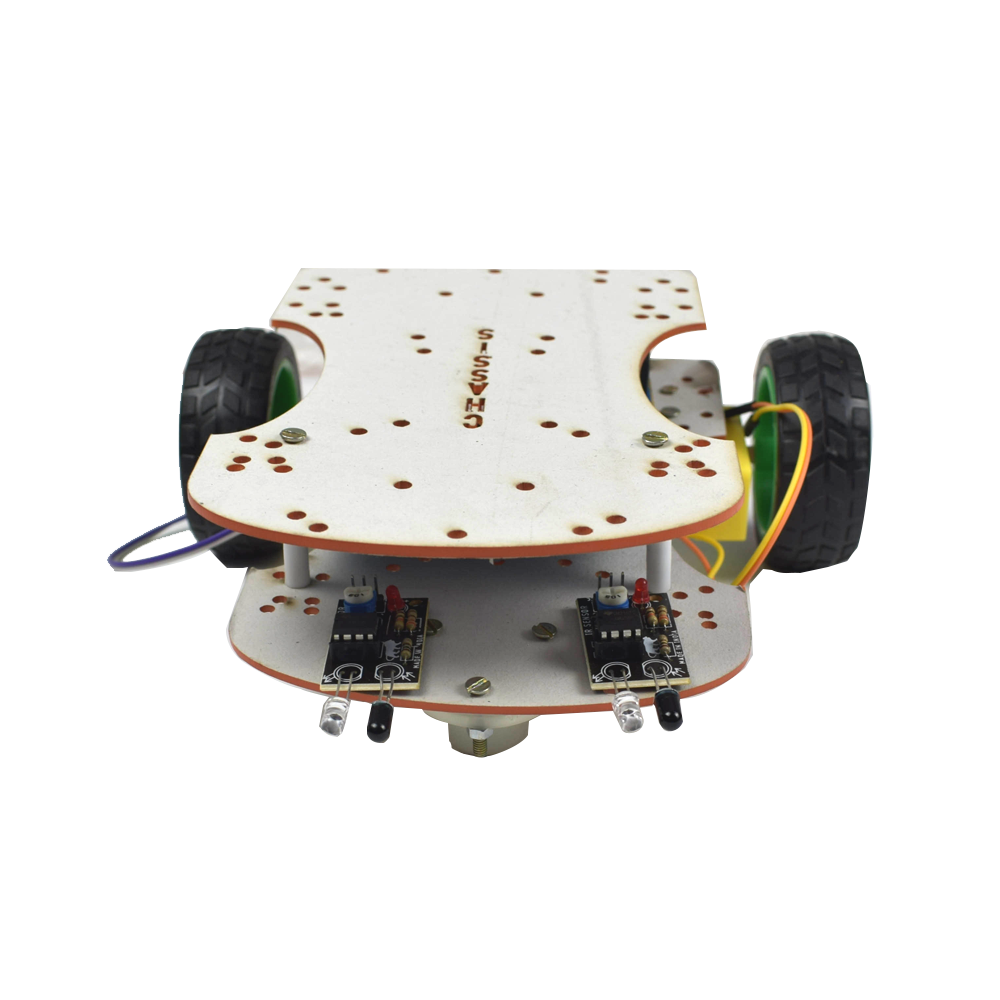

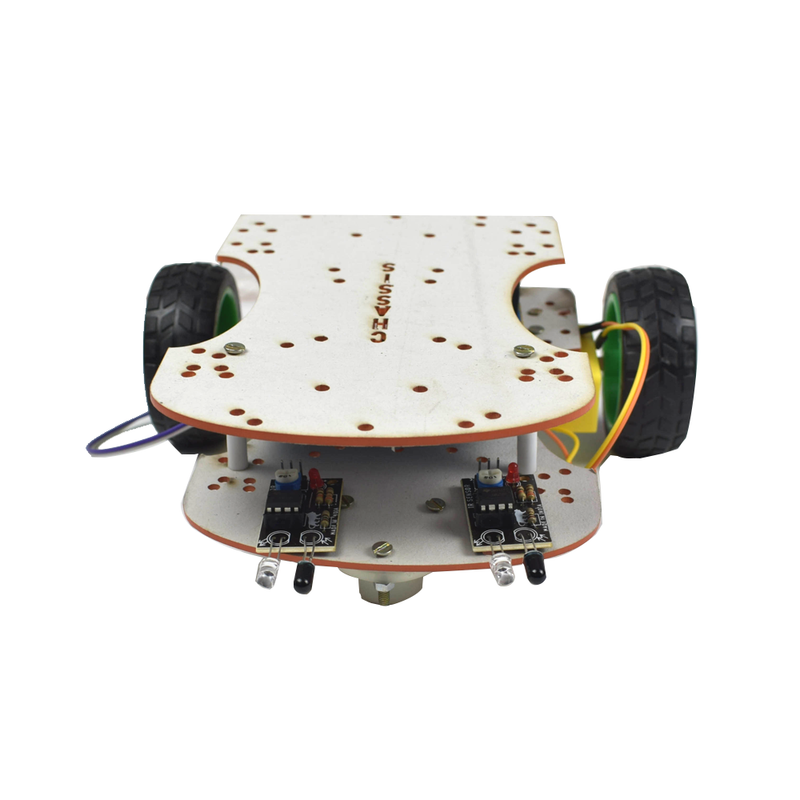

- 2 x IR Sensor Board
- 1 x Screw Driver
- 1 x USB Cable
- 1 x 9V Jack Connector
- 1 x Aux Cable
- All necessary screws and nuts
