Description

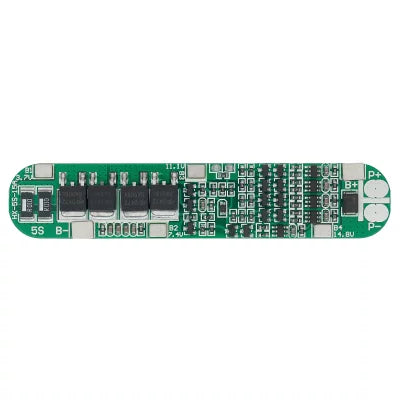

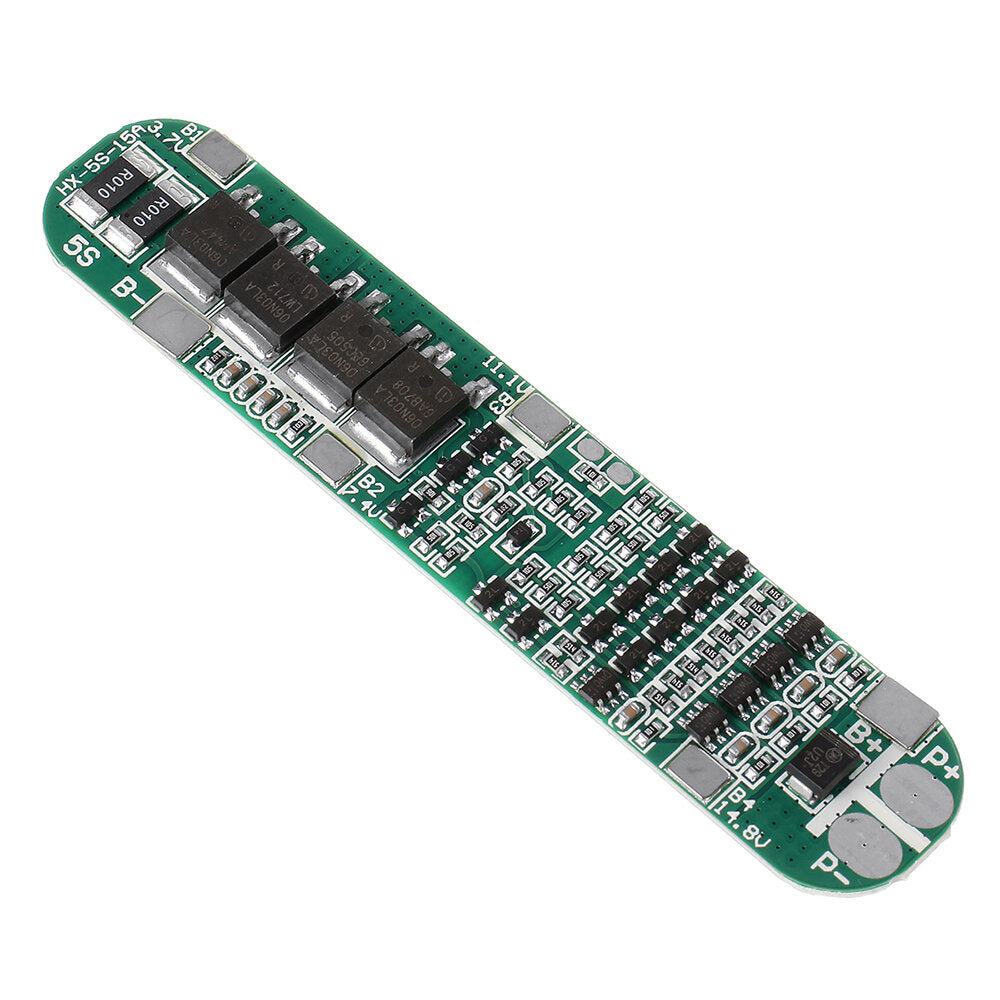

BMS (Battery Management System) a battery management system that is designed to monitor the status of batteries, control the process of charging/discharging the battery etc.
Five batteries (18650) can be connected simultaneously to this charge-discharge controller module. The module has protection against short circuit, overcharge and over-discharge. One of the functions of the charge controller is to turn off the power supply for the batteries when the maximum capacity of at least one battery is reached. This BMS controller is designed for more than 30,000 hours of operation. The maximum allowable current is 15 A.
Features
- Small size designed for a Five-cell battery pack.
- Simple and convenient circuit for easy connections
- Over-charge/Over-discharge Protection
Specifications
| Model | 21V BMS 5S 15A |
| Type | Lithium Battery Protection board |
| Charge Voltage | 21 V |
| Charging current | 15A |
| Continuous discharge current | 15A |
| Instantaneous discharge current | 25A |
| Over charge detect | 4.28V +- 0.05v |
| Working current | ≤30uA |
| Country of Origin | China |
