Description

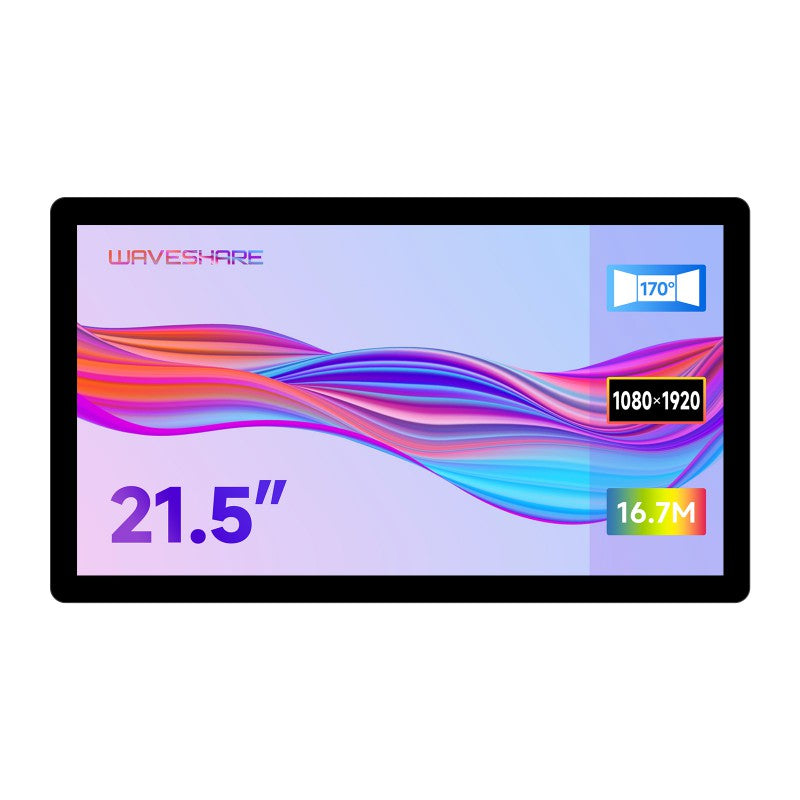

21.5″ Capacitive Touch Display
Industrial Quality, Suitable For Industrial,
Commercial, and Medical Applications, etc.
Size
21.5″ |
Resolution
1080×1920 |
Display Interface
HDMI |
Display Color
16.7M |
Viewing Angle
170° |
Touch Type
Capacitive |
Touch Port
Type-C |
Touch Points
10-Point |
Touch Panel
Toughened Glass |
Touch Panel Tech
Optical Bonding |
Temperature Range
-5 ~ 60℃ |
OSD Menu
Brightness/Contrast |
Brightness
600cd/m² |
Audio Output 1
3.5mm Jack |
Audio Output 2
4Pin Header |
Device & System Support
 |
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free Jetson NanoSupports Ubuntu, single point touch, driver free PCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free |
Connection Examples
Working With Raspberry Pi 5
Working With Raspberry Pi 4B
Working With Raspberry Pi 3B+
Working With Raspberry Pi 2 W
You need to prepare additional mini HDMI adapter and USB cable
Working With Jetson Nano
Working With Mini PC
for reference only, the Raspberry Pi boards and the hosts above are NOT included.
Configurable Display Orientation
The Display Orientation Is Portrait By Default, 1080×1920 Resolution (H×V).
Change The Software Config For Landscape Display
Wide Viewing Angle IPS Display Panel
Excellent Display & Color Performance
Wide Viewing Angle Up To 170°, Color Gamut Up To 72% NTSC
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof

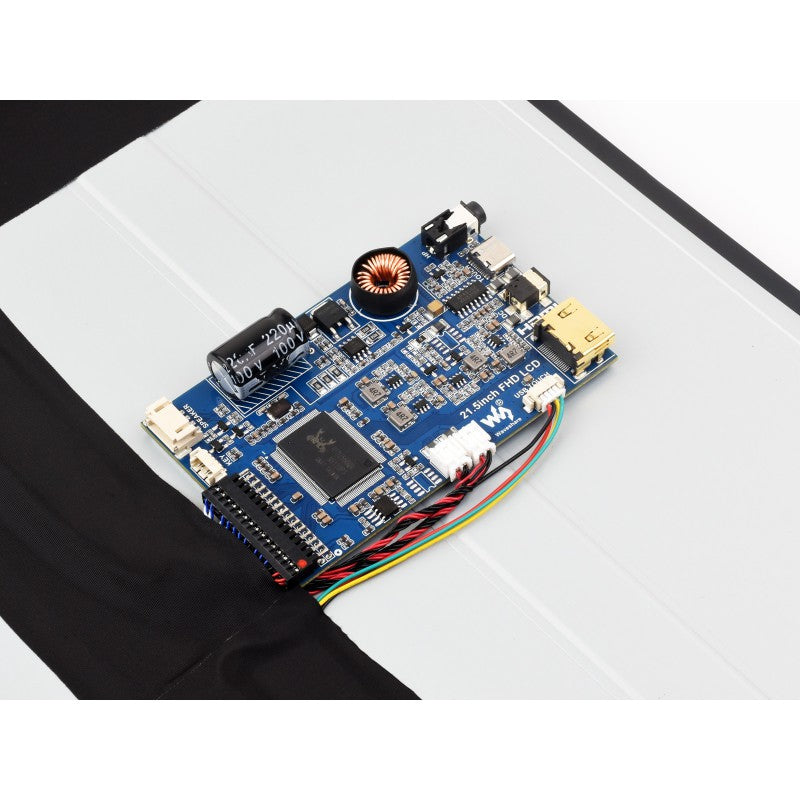

Interface Introduction
Application Scenarios
Suitable For Industrial, Commercial, Medical And Other Applications
Dimensions
Resources
Wiki: www.waveshare.com/wiki/21.5inch_FHD_LCD
Package Contains:
Weight: 4.573 kg
- 21.5inch FHD LCD x1
- HDMI cable ~1m x1
- HDMI to Micro HDMI adapter x1
- USB Type A to Type C cable ~1m x1
- OPTIONS 12V 2A power adapter x1
- Triangular stand x1
- Button board x1
- 1.27H 4PIN button board cable x1
- Capacitive touch pen ×1
