Description

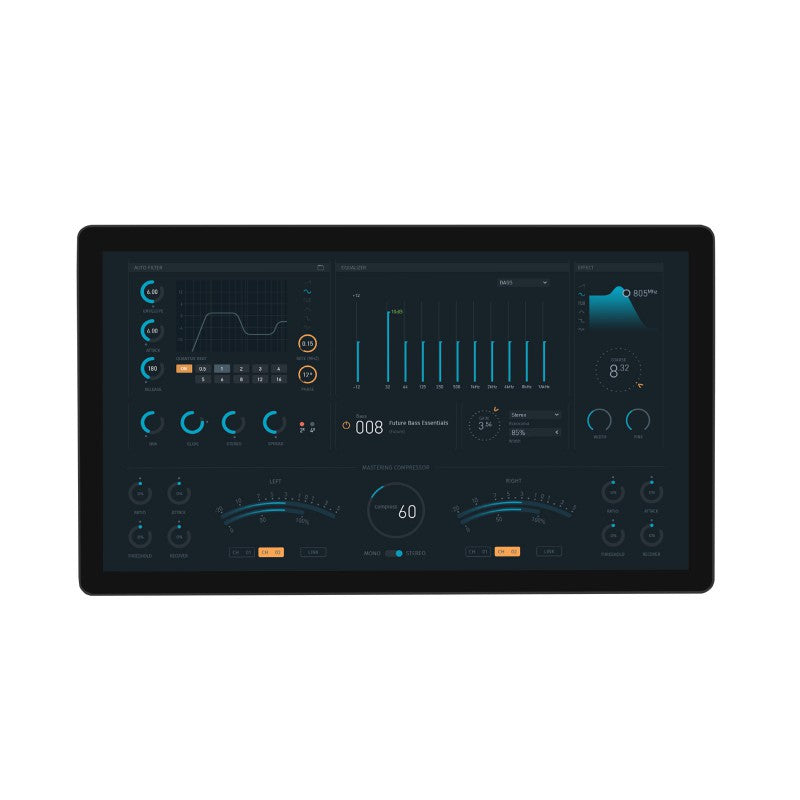

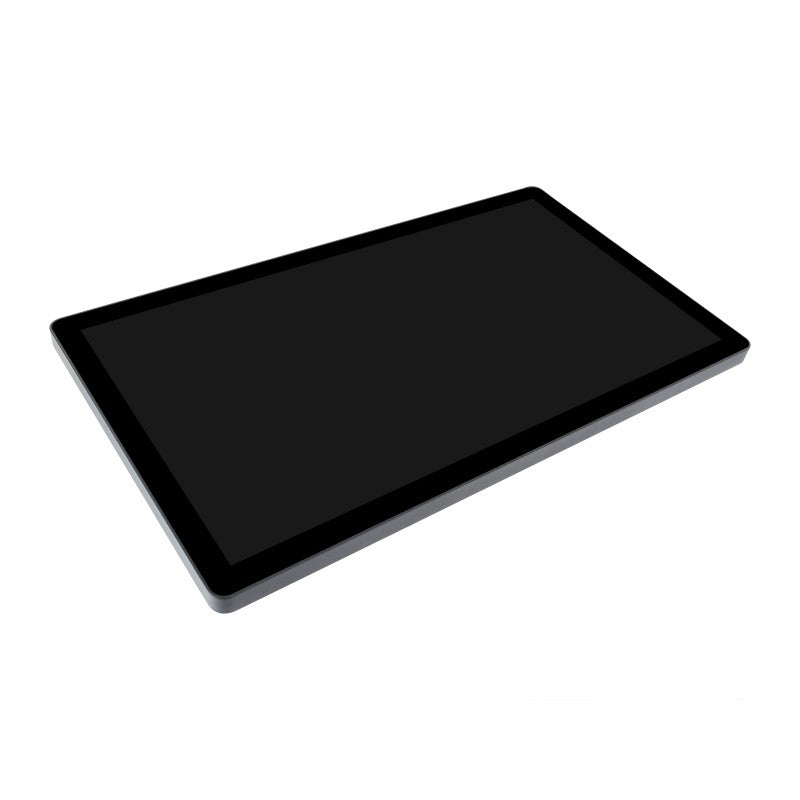

21.5inch Capacitive Touch Monitor
1080×1920 Full HD, HDMI, 10-Point Touch
Optical Bonding Toughened Glass Panel
Size
21.5″ |
Resolution
1080×1920 |
Display Interface
HDMI |
Display Color
16.7M |
Viewing Angle
170° |
Touch Type
Capacitive |
Touch Port
Type-C |
Touch Points
10-Point |
Touch Panel
Toughened Glass |
Touch Panel Tech
Optical Bonding |
Temperature Range
-5 ~ 60℃ |
OSD Menu
Brightness/Contrast |
Sound
Hi-Fi Speaker |
Enclosure
Aluminum Alloy |

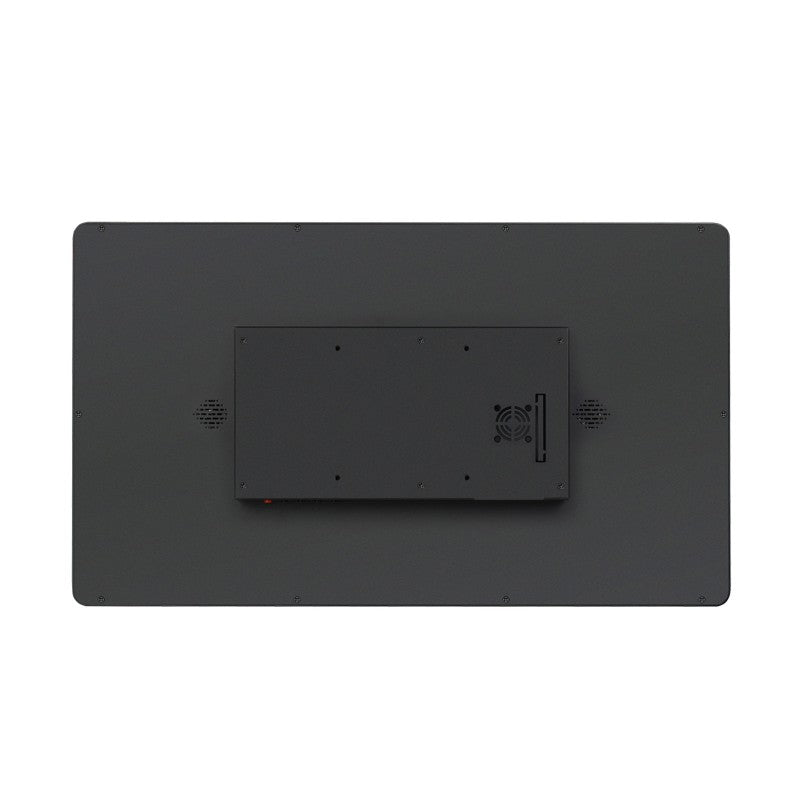

VESA Wall Mount
100 × 100mm |
Device & System Support
 |
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free Jetson NanoSupports Ubuntu, single point touch, driver free PCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free |
Connection Examples

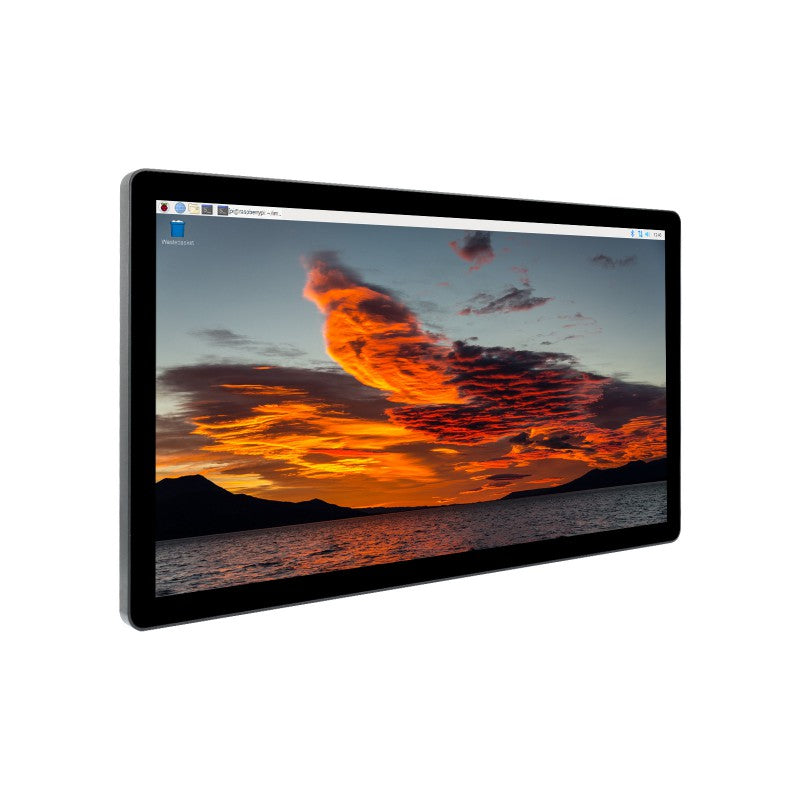

Working With Raspberry Pi 4B
Working With Raspberry Pi Compute Module 4
Working With Jetson Nano
Working With Mini PC
Configurable Display Orientation
The Display Orientation Is Portrait By Default, 1080×1920 Resolution (H×V).
Change The Software Config For Landscape Display
Wide Viewing Angle IPS Display Panel
Excellent Display & Color Performance
Wide Viewing Angle Up To 170°, Color Gamut Up To 72% NTSC
FHD High Resolution
1080×1920 Pixels, Clearer Display
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Audio Feature
Built-In Ferrite Hi-Fi Speaker, Dual-Track Support

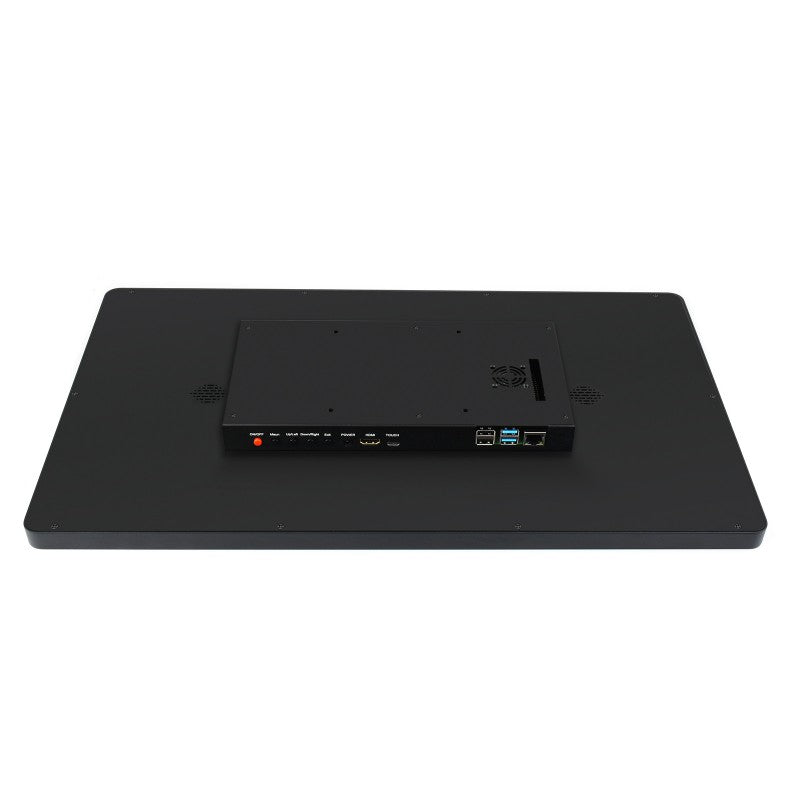

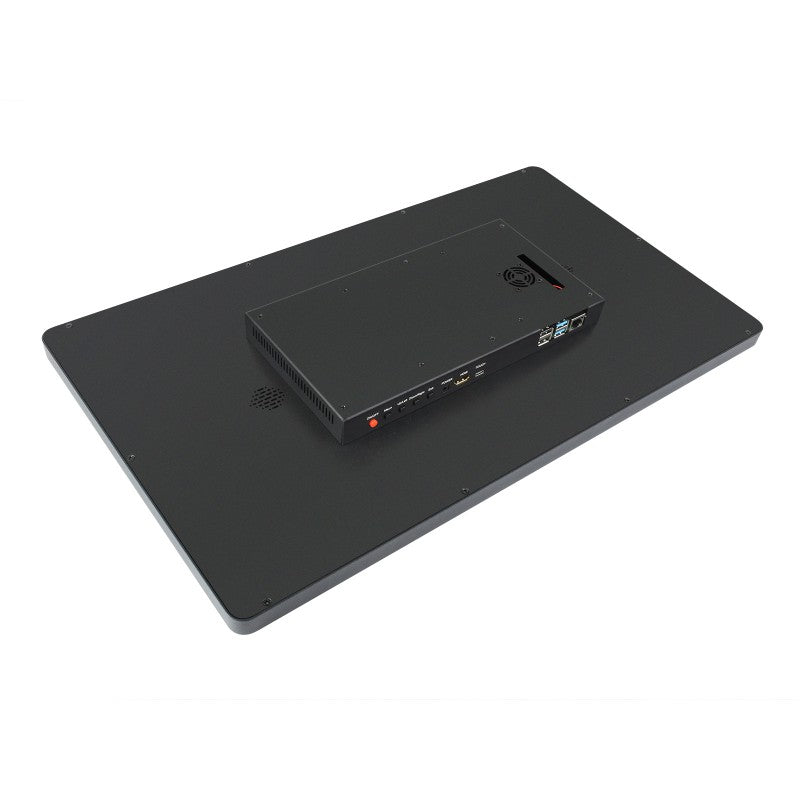

Interface
for reference only, the monitor arm is not included.
Application Scenarios
Suitable For Industrial, Commercial, Medical And Other Applications
Dimensions
Resources
Wiki: www.waveshare.com/wiki/21.5inch_FHD_MonitorPackage Contains:

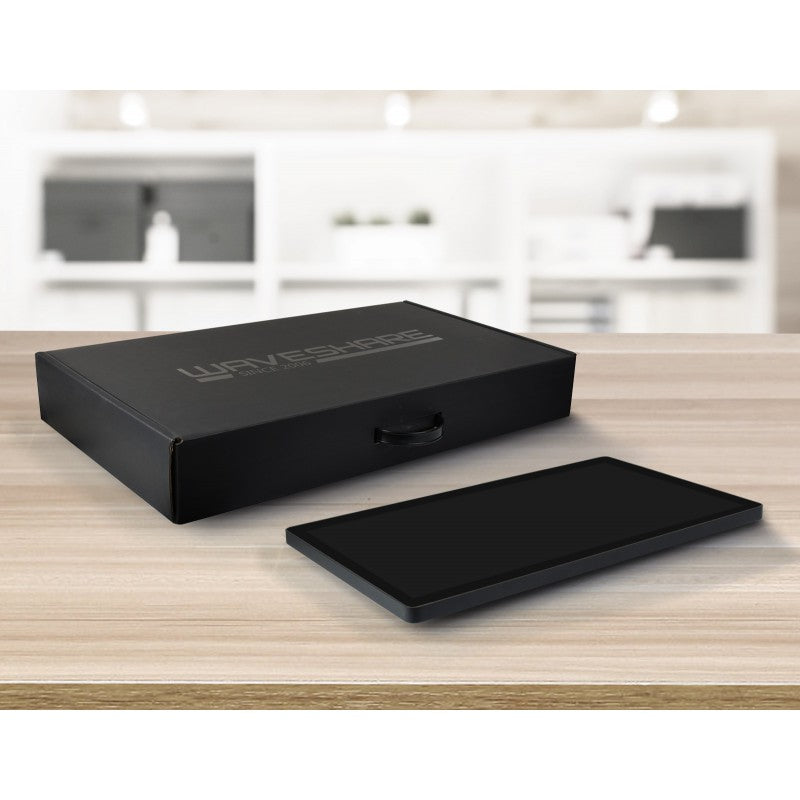

- 21.5inch FHD Monitor ×1
- USB-A to USB-C cable ~1m ×1
- HDMI flat cable ~1m ×1
- 12V 3A Power supply ×1
- Packaging box ×1
