20uF 206J 250V Polypropylene Film Capacitor

Save 19%
Sold By: HatchnHackSKU: 0

Price:
Sale price₹ 105.72 Regular price₹ 131.12

Tax included Shipping calculated at checkout

Out of stock

Description

The 20uF 250V Polypropylene Film Capacitor is used for high-frequency high-power applications such as induction heating, for pulsed power energy discharge applications, and as AC capacitors for electrical distribution. Polypropylene film is largely used for power capacitors, that provide high power and energy efficiency for a very wide range of applications. Typical applications of power capacitors extend from industrial drives and green power systems (wind, solar, etc.), Film capacitors can also be used in a more conventional way as voltage smoothing capacitors, in filters, audio crossovers. They can be used to store energy and release it in a high-current pulse when needed. High-current electrical pulses are used to power pulsed lasers or generate lighting discharges.

Applications

  • Its used for industrial Drives
  • Its used for Green power systems (Wind, Solar etc.)
  • Its used for high frequency
  • Its voltage smoothing capacitors
Specification
Model CBB19 206J
Capacitor Value 20uF
Rated Voltage 250V AC
Tolerance ±5%
Mounting Type Through Hole
Type  Polypropylene Film Capacitor
Height 56mm
Diameter 28mm
Lead Thickness 0.8mm

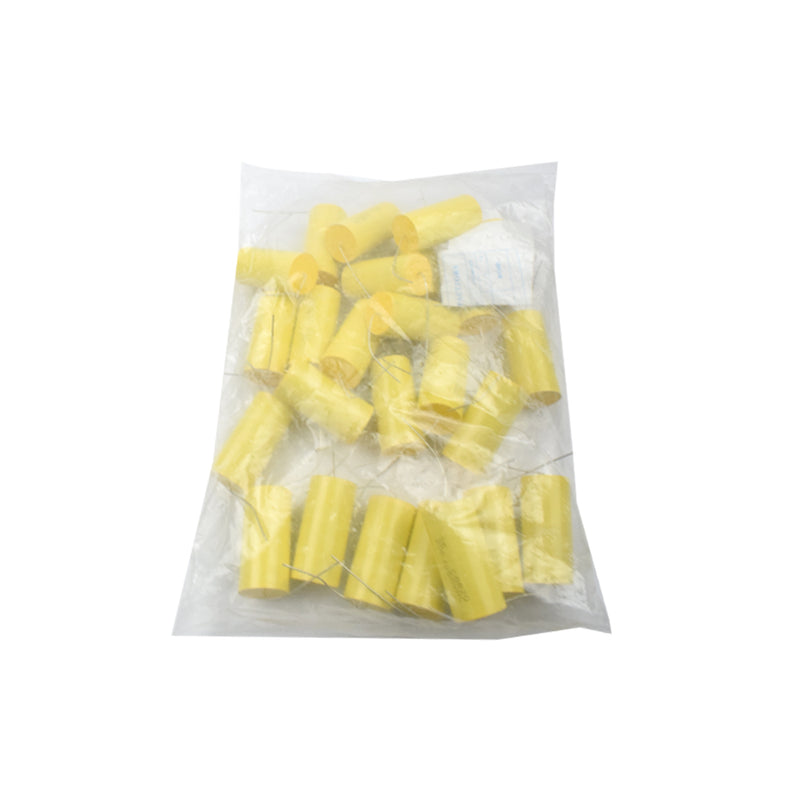

Quantity 25Pcs
Country of Origin China
