Description
- Adjustable speed range: 0%-100%.
- Speed adjustment way: Potentiometer.
- Output voltage: Linear under load.
- Speed control type: Basins.
- Output voltage: Load Linear
- Type: Adjusting flow
- The motor running condition adjustment: Forward / Stop / Reverse
| Driver Model |

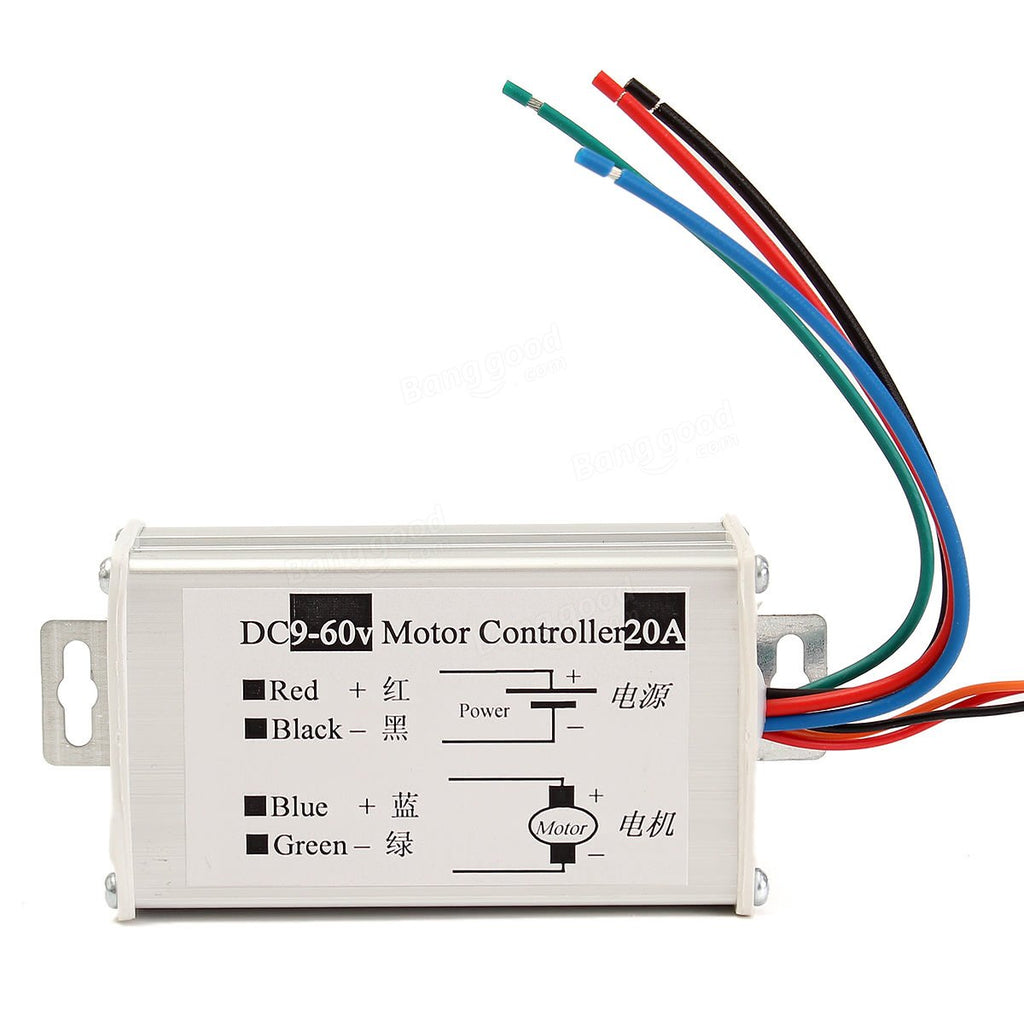

20A PWM DC Motor Speed Regulator |
|---|---|
| Operating Voltage (VDC) |
9 ~ 60 |
| Peak Current (A) |
20 |
| Continuous Current (A) |
18 |
| Continuous power |
1200W |
| PWM frequency |
25KHz. |
| No. of Channels |
1 |
| Battery Protection Mode |
No |
| Thermal Protection |
Yes |
| LED Indicator |
Yes |
| Cable Length (cm) |
13 |
| Cooling Fan |
No |
| Arduino Sheild |
No- can be used with Wire connection |
| Speed Control |
Yes |
| Polarity Protection |
Yes |
| Dimensions in mm (LxWxH) |
90 x 50 x 35 |
| Weight (g): |
135 |
| Shipping Weight | 0.15 kg |
| Shipping Dimensions | 12 × 6 × 5 cm |
