Description

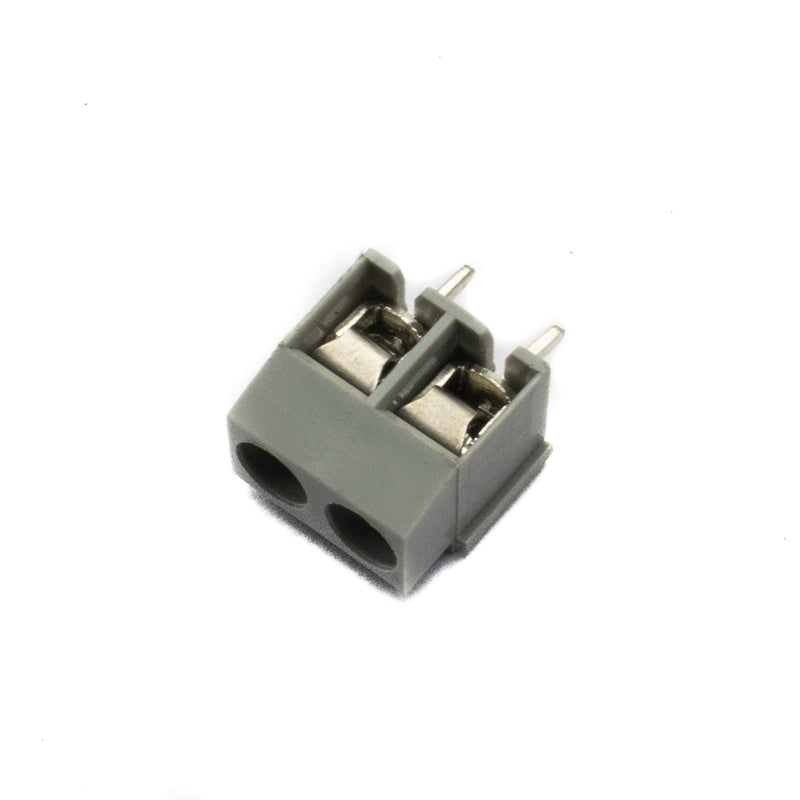

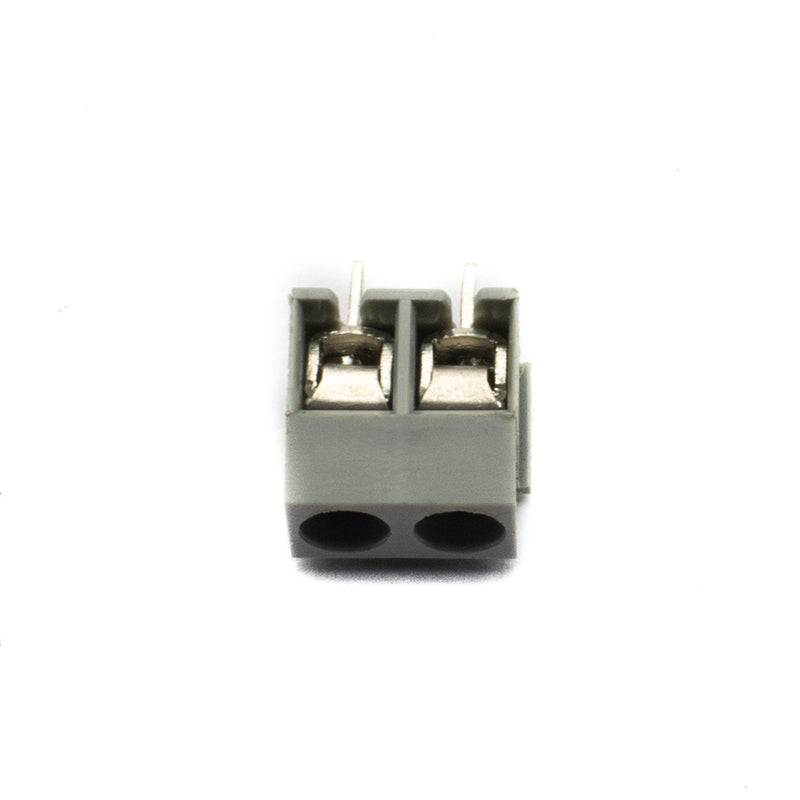

This 2 Pin Screw Type PCB Terminal Block - 5mm Pitch YX126 (Grey) is a Pluggable Screw Terminal Block with a compact and versatile design. It finds its use in connecting wires to the PCB. Due to its small size, the terminal block connects two conductors on a PCB, where space is a concern. Wires ranging from 26 to 14 AWG can be screwed into this YX126 2 Pin PCB Mount Screw terminal block. These terminal blocks have a 300V voltage rating and a current rating of up to 10 amps.
One of the coolest features of the 2 pin and 3 pins YX126 Terminal Connector is that you can slide lock them together to make any size you want, such as 4, 5, 10, or even 20.
Specification
| Connector Type | Screw Terminal Block |
| Voltage Rating | 300V |
| Current Rating | 10A |
| Pin Pitch | 5mm |
| Wire Range | 26-14 AWG |
| Colour | Grey |
| Country of Origin | China |
