2 Pin Screw Type PCB Terminal Block - 3.8mm Pitch ZB128

Save 9%
Sold By: HatchnHackSKU: CBD189

Price:
Sale price₹ 6.37 Regular price₹ 7.00

Tax included Shipping calculated at checkout

Out of stock

Description

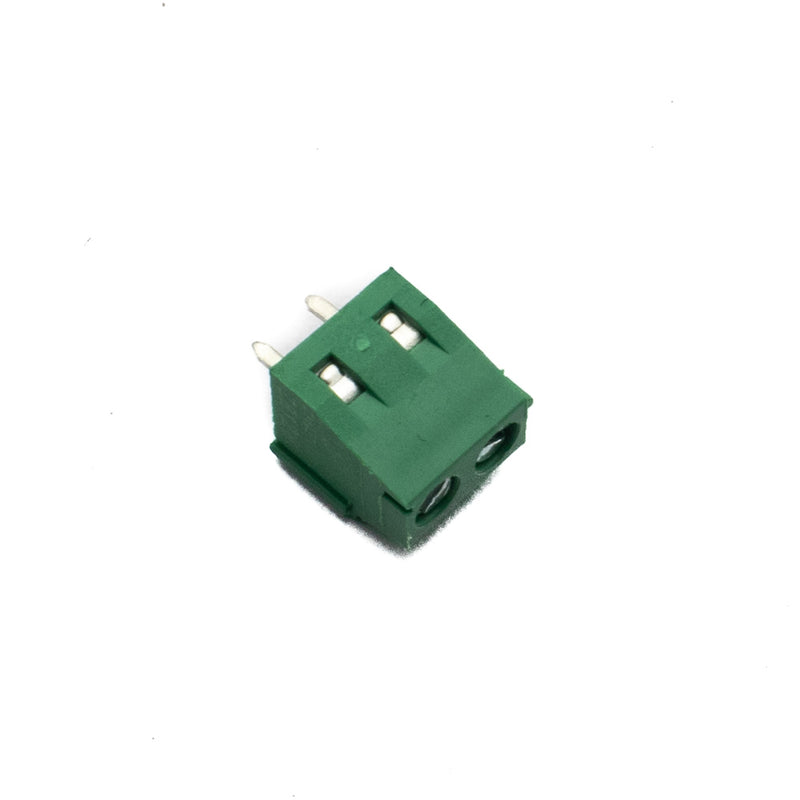

This 2 Pin Screw Type PCB Terminal Block - 3.8mm Pitch ZB128 is a Pluggable Screw Terminal Block with a compact and versatile design. It finds its use in connecting wires to the PCB. Due to its small size, the terminal block connects two conductors on a PCB, where space is a concern. Wires ranging from 26 to 16 AWG can be screwed into this ZB128 2 Pin PCB Mount Screw terminal block. These terminal blocks have a 150V voltage rating and a current rating of up to 10 amps. One of the coolest features of the 2 pin and 3 pins ZB128 Terminal Connector is that you can slide lock them together to make any size you want, such as 4, 5, 10, or even 20.


Specification
Connector Type Screw Terminal Block
Voltage Rating 150V
Current Rating 10A
Pin Pitch 3.8mm
Wire Range 26-16 AWG
Colour Green
Country of Origin China
