Description

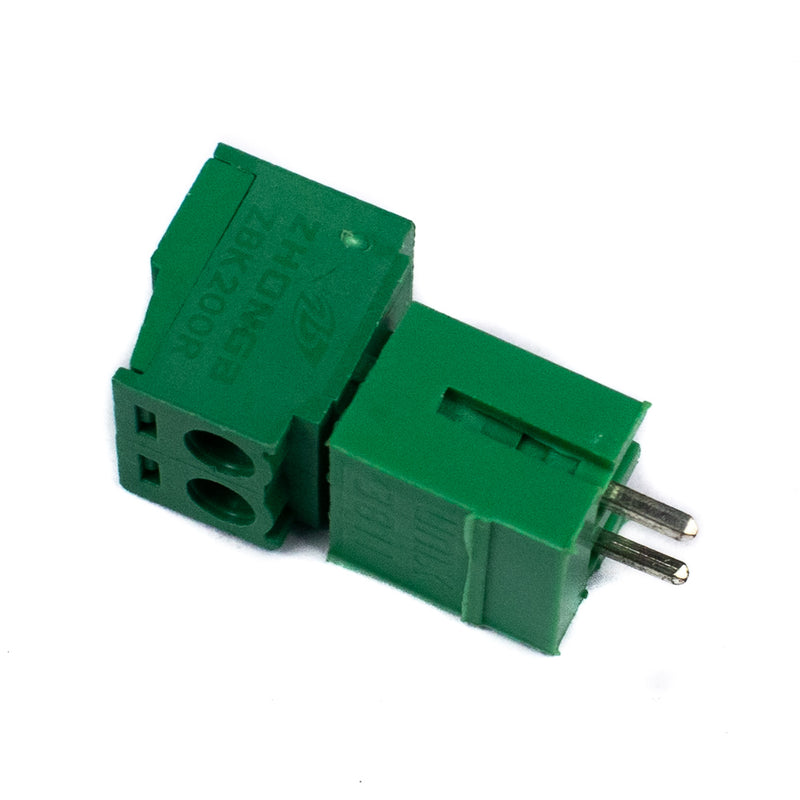

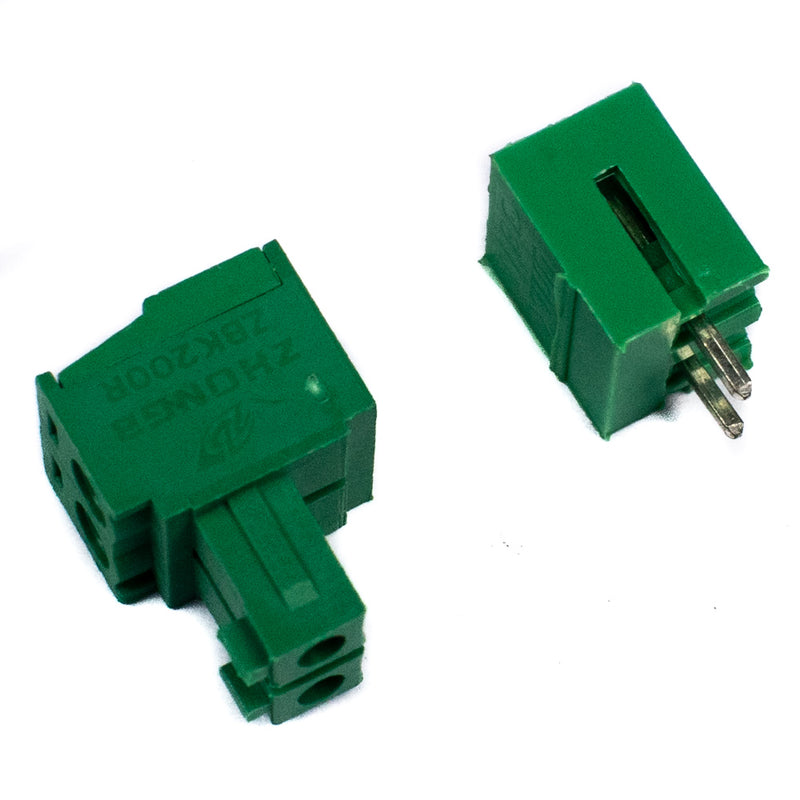

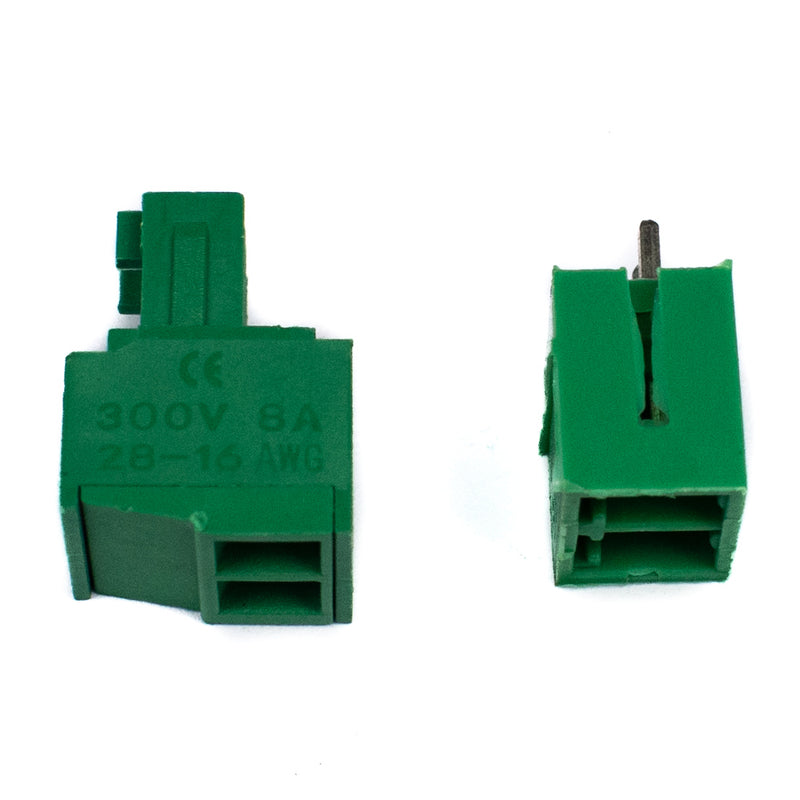

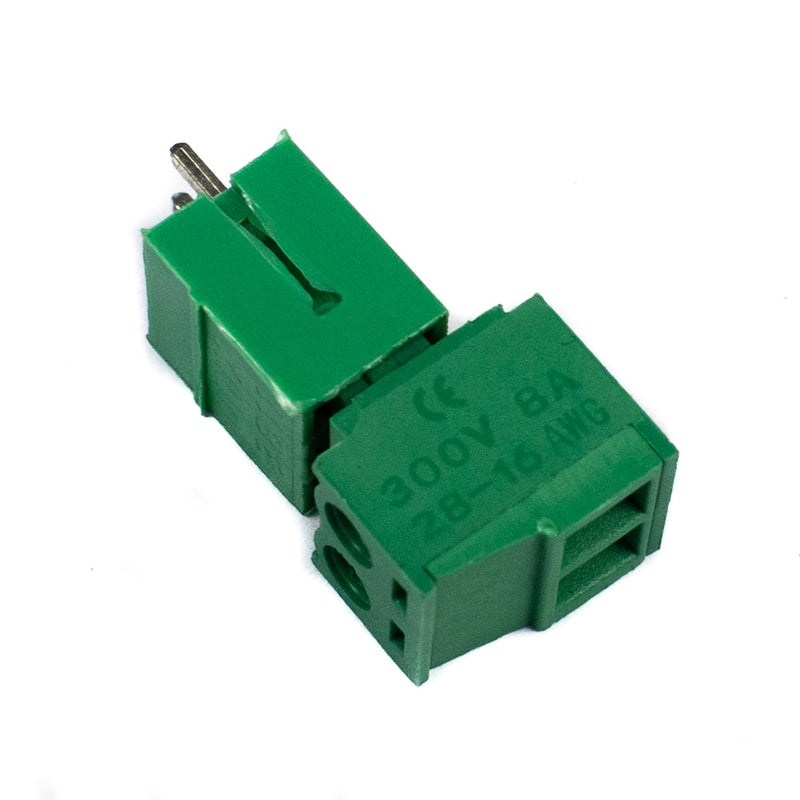

It is a 2 Pin Plugin Terminal Right Angle 3.81mm Male-Female Pair ZBK200R (Combicon Connector). This screwable 2 pins Right Angle connector pair is also known as a "pluggable terminal block" or a "two-piece terminal block" ZBK200R 3.81 series. Along with this Screw Type 2 Pin Right Angle female plug, you will get a 2 Pin Male PCB Mount Right Angle Header 3.81 mm pitch.
Specifications
| Voltage Rating | 300V |
| Current Rating | 8A |
| Number of Pins | 2 |
| Mounting | Free hanging and PCB mount |
| Operating Temperature | -40°C to 105°C |
| Wire Gauge | 14~24 AWG |
| Pitch | 3.81mm |
| Colour | Green |
| Type | Combicon |
| Country of Origin | China |
