Description

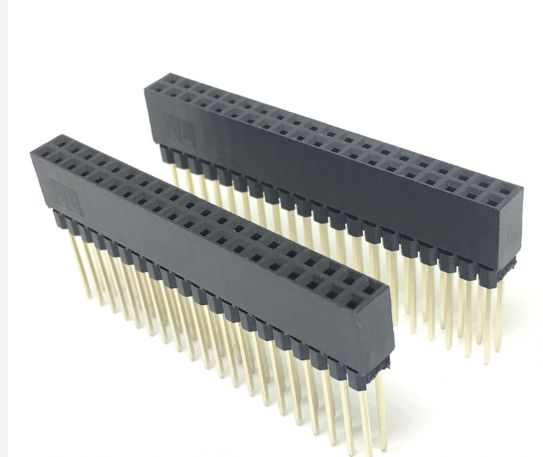

It's a 2.54mm 2x20 40Pin Female dual Row Header strip. This dual-row female header is the most basic and is usually included with any board that uses them. If you wish to build your idea into a breadboard - solderless or permanent - use male headers. If you wish to stack your boards together‚ you can use them in combination with male headers.
Features
- It's a high-quality dual-row header
- Its pitch is 2.54mm
- It has no pin 40
- Its gender is Female
- Dimension 50x10x5mm
- Its mounting type is Through Hole
| Specifications | |
|---|---|
| Connector Type | Straight Long Header |
| Pin Pitch | 2.54mm |
| Height | 10mm |
| Type | header |
| Material Used | contactor Phosphor Bronze |
| No. of Pins | 40 |
| Dimensions | 51x10x5mm |
