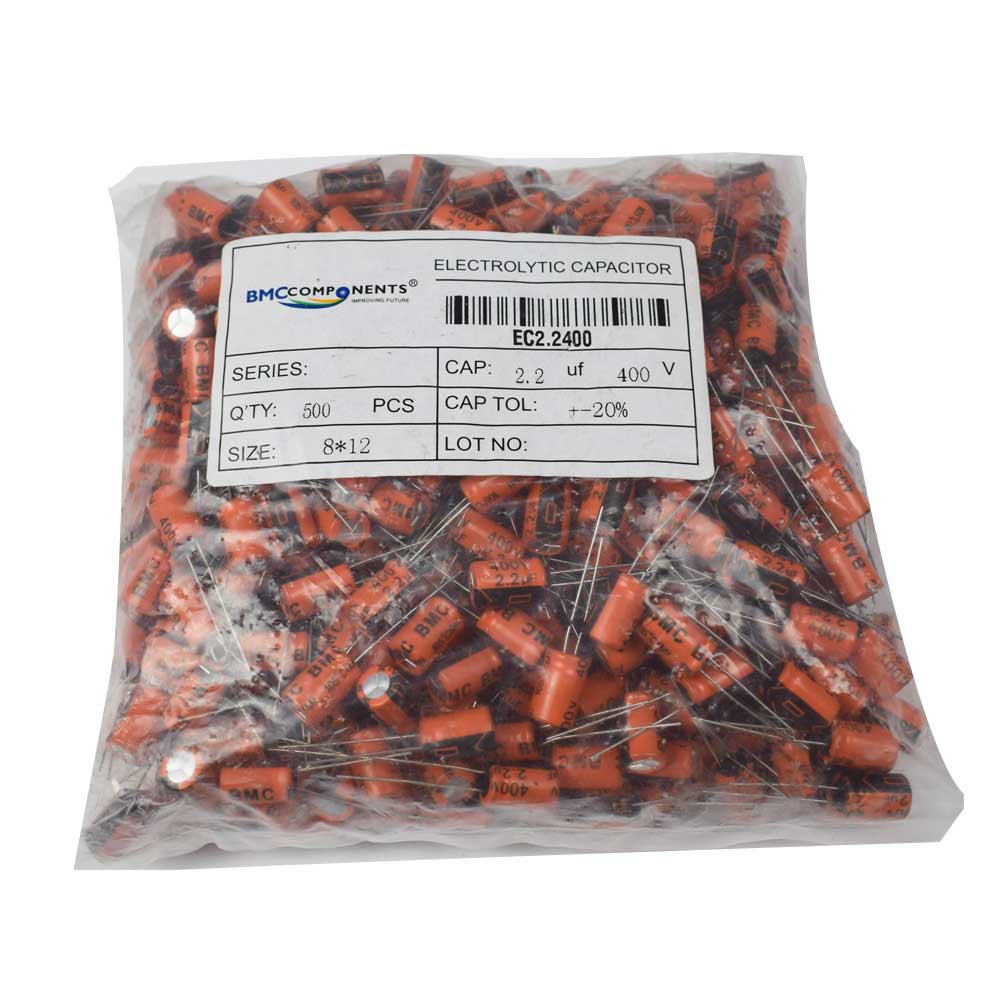

2.2µF 400V Electrolytic Capacitor

Save 15%
Sold By: HatchnHackSKU: G12-14

Price:
Sale price₹ 1.84 Regular price₹ 2.17

Tax included Shipping calculated at checkout

Out of stock

Description

This is a 2.2µF 400V Electrolytic Capacitor made with high purity Etched and Formed Aluminium foil with aluminium oxide dielectric barrier as anode foil and an aluminium cathode foil are concentrically wound with a layer of condenser grade paper in between and after impregnation with electrolyte, the wound element is housed in an Aluminium can and then hermetically sealed using a rubber bung to form an Aluminium electrolytic capacitor. The most important advantage of electrolytic capacitors is the higher capacitance ratio to dimensions when compared with other capacitors. This is principally due to the microscopically thin dielectric layer, which produces large capacitance per unit area.

Specification
Capacitor Value 2.2µF
Voltage 400V
Type Electrolytic Capacitor
Size 8x12mm
Operating Temperature -40°C to 85°C
Tolerance ±20%
Mounting Type  Through Hole
Make BMC Component
Quantity
1
Country of Origin China
