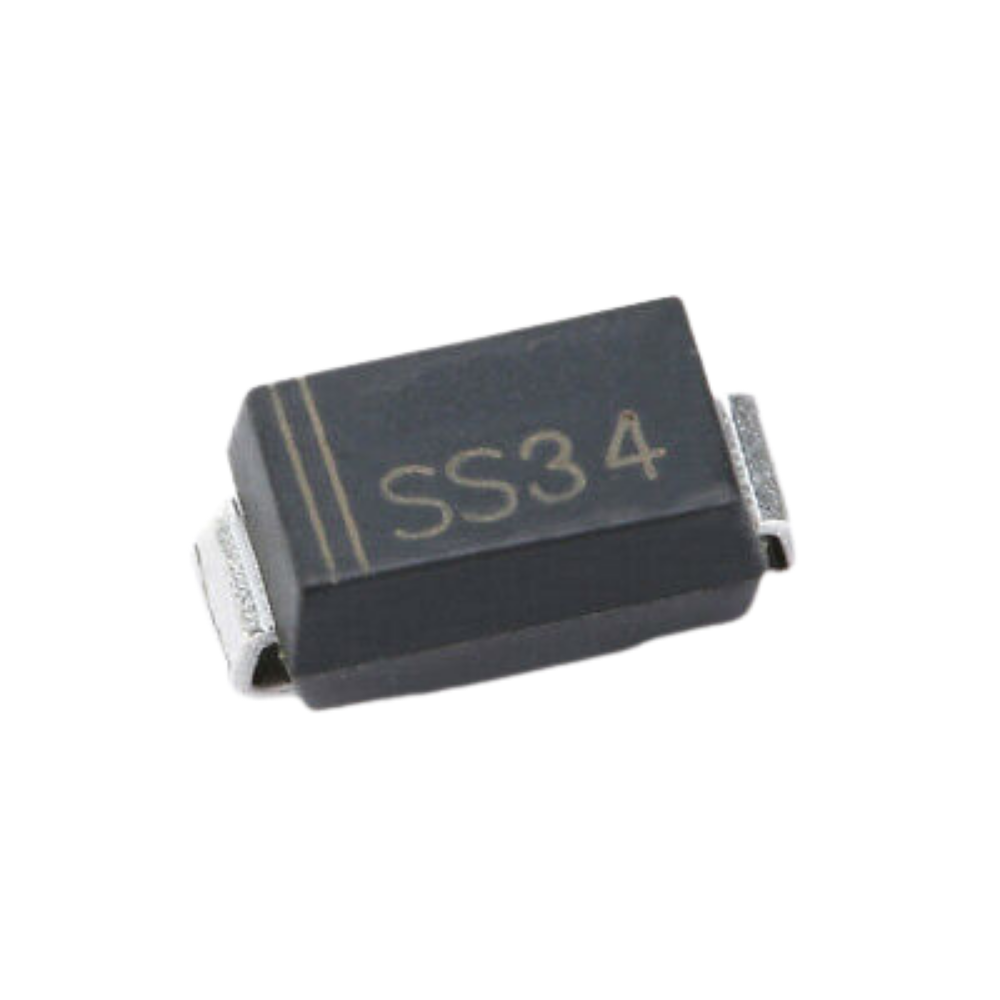

SS34 (1N5822) SMD Schottky Diode

Save 35%
Sold By: HatchnHackSKU: A01-05

Price:
Sale price₹ 1.30 Regular price₹ 2.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

The SS34 is a surface mount High Power Schottky Diode with a 0.5V voltage drop and a 3A forward current. This diode has high efficiency and a 100A surge current capacity. It is often employed in applications such as freewheeling, DC/DC converters, and reverse polarity protection.

Features

  • Low profile package
  • Built-in strain relief
  • Metal silicon junction, majority carrier conduction
  • Low power loss, high efficiency
  • High current capability, low forward voltage drop
  • High surge capability
  • For use in low voltage high-frequency inverters, freewheeling, and polarity protection applications
  • Guarding for overvoltage protection
  • High-temperature soldering guaranteed:260C/10 seconds, at the terminal



Specifications

Maximum average forward rectified current- If(AV)

3.0 A

Maximum repetitive peak reverse voltage- VRRM

40 V

Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load -Ifsm

100 A

Reverse Current (IR)

0.5mA

Maximum RMS voltage

28V

Package

SMD (DO-214AC)

Operating junction temperature range TJ max

-55°C to +150°C

Circuit configuration

Single

Country of Origin China
