Description

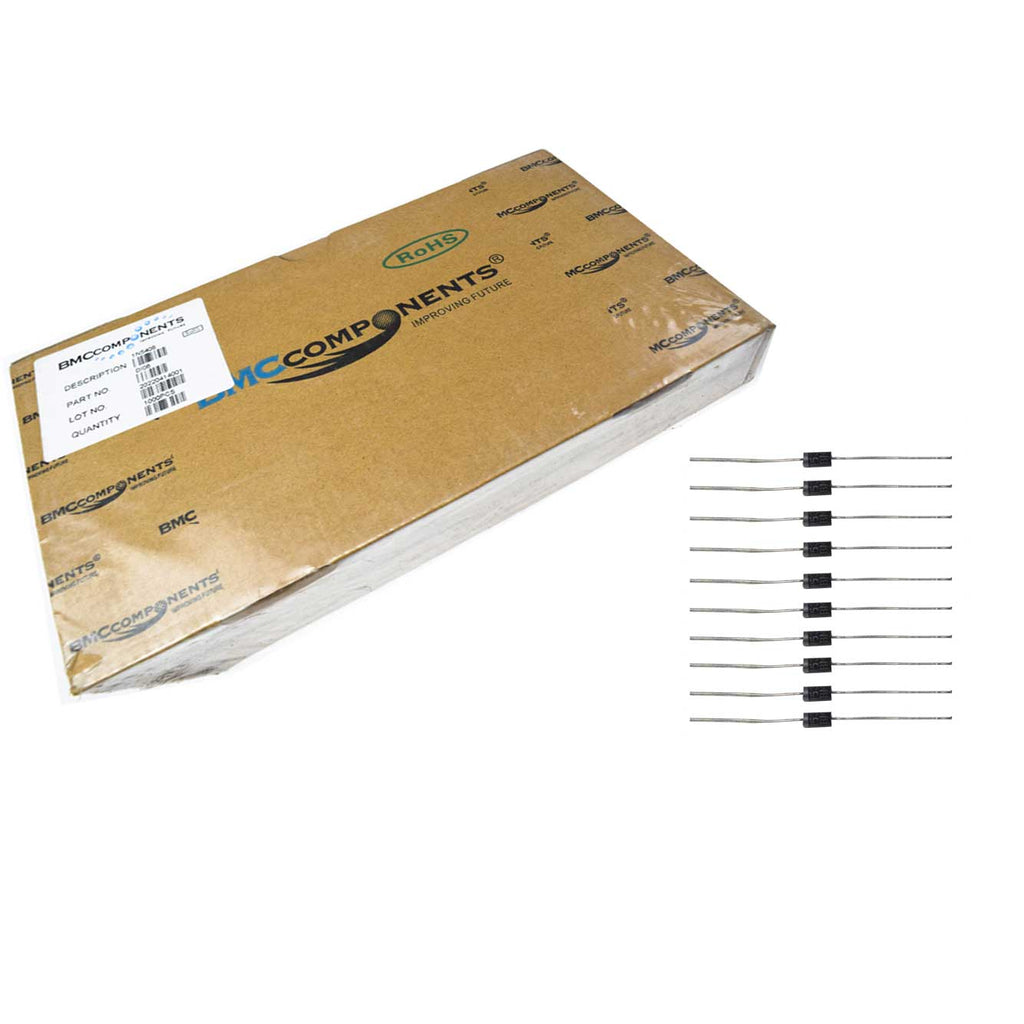

The 1N5408 Diode is an axial leaded general-purpose rectifier in the DO-201 Package. The device features diffused junctions, high current capability and low forward voltage and low reverse leakage current.
Features
- Low forward voltage drop
- Low leakage current
- High forward surge capability
Specifications
| Model | 1N5408 |
| Make | BMC Components |
| Type | Standard Recovery Rectifier |
| Max. Average Forward Rectified Current | 3.0A |
| Max. Recurrent Peak Reverse Voltage | 1000V |
| Max. DC Blocking Voltage | 1000V |
| Case | DO-201 |
| Mounting Type | Through Hole |
| No of Pin | 02 |
| Operating Temperature Range | -55 to +150 °C |
| Quantity | 1000 |
| Country of Origin | China |
