Description

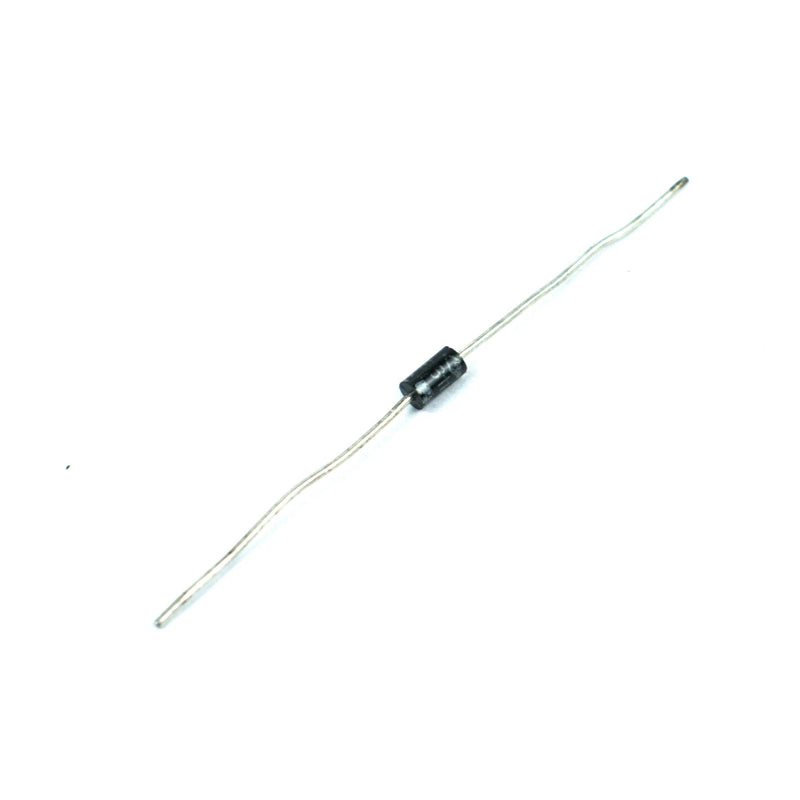

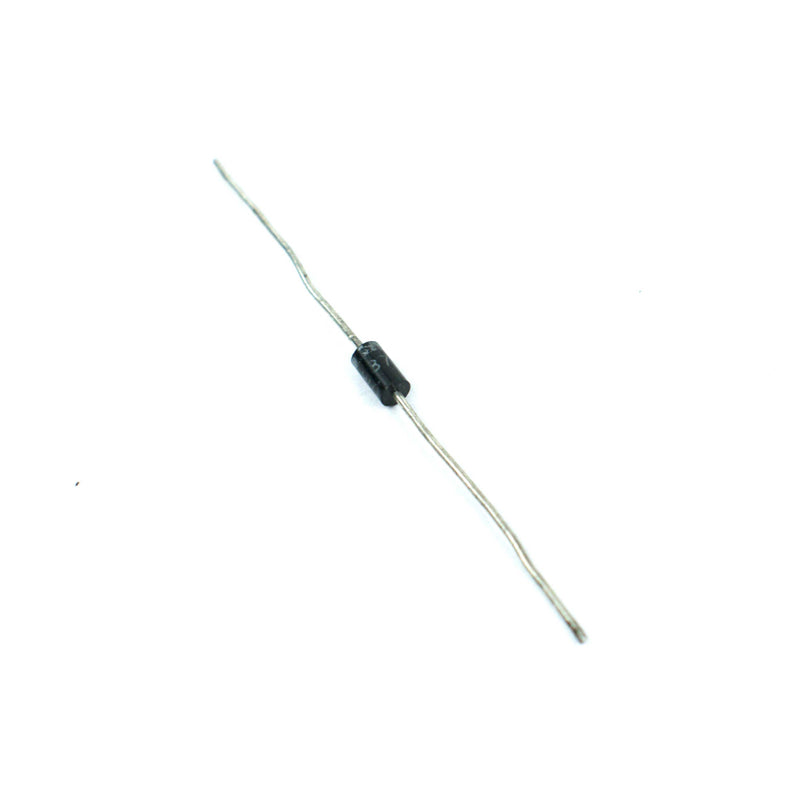

IN4937 is a fast recovery diode; typically fast recovery diodes are used for rectification purposes. It is a Through-hole(THD) active component. Its construction is similar to an ordinary diode. It has a P-N junction which consists of two terminal anodes (A) and a Cathode(K).
Features
- Fast switching for high frequency
- Low forward voltage drop
- Low leakage current
- High voltage surge capability
- High current capability
Specifications
| Model | 1N4937 |
| Mounting Type | Through Hole |
| Repetitive Peak Reverse Voltage (VRRM) | 600V |
| RMS Voltage (VRMS) | 420V |
| DC Blocking Voltage (VDC) | 600V |
| Forward Rectified Current (IF) | 1A |
| Forward Surge Current (IFSM) | 30A |
| Reverse Recovery Current (IRM) | 2A |
| Operating Junction and Storage temperature | -55~150 degree C |
| Country of Origin | China |
