Description

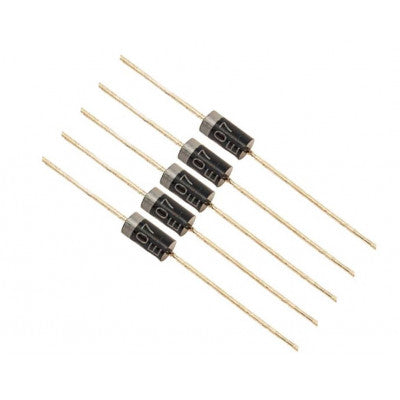

The 1N4007/1N4007S Diode is a component that only permits one direction of current flow. Thus, the current must always move from the anode to the cathode. The maximum current carrying capacity of the 1N4007 Diode is 1A, while it can resist peak currents of up to 30A. As a result, we can apply this to circuits that are intended to handle less than 1A. A insignificant 5uA is the reverse current. This diode has a 3W power dissipation.
Features:
• Available in DO-41 Package
• High Surge Current Capability
• Low Forward Voltage Drop
• Diffused Junction
• Surge Overload Rating to 30A Peak
• Low Reverse Leakage Current
Specifications:
| Part Number | IN4007 / 1N4007S |
| Type | Diode |
| Peak Repetitive Reverse Voltage | 1000V |
| Forward Current | 1A |
| Rating for fusing | 30A |
| Mounting Style | Through Hole |
| Country of Origin | China |
