Description

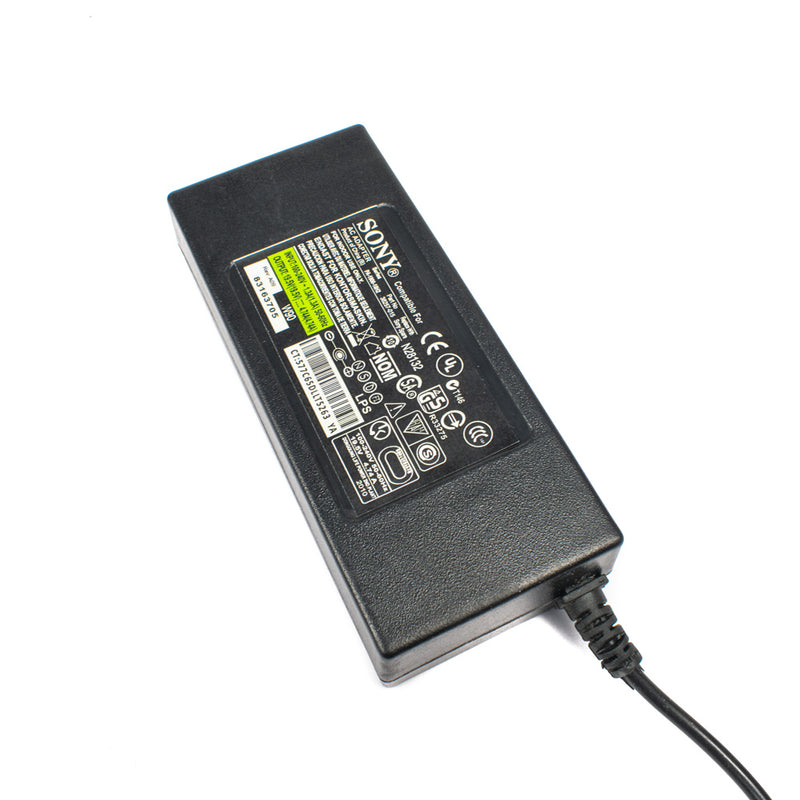

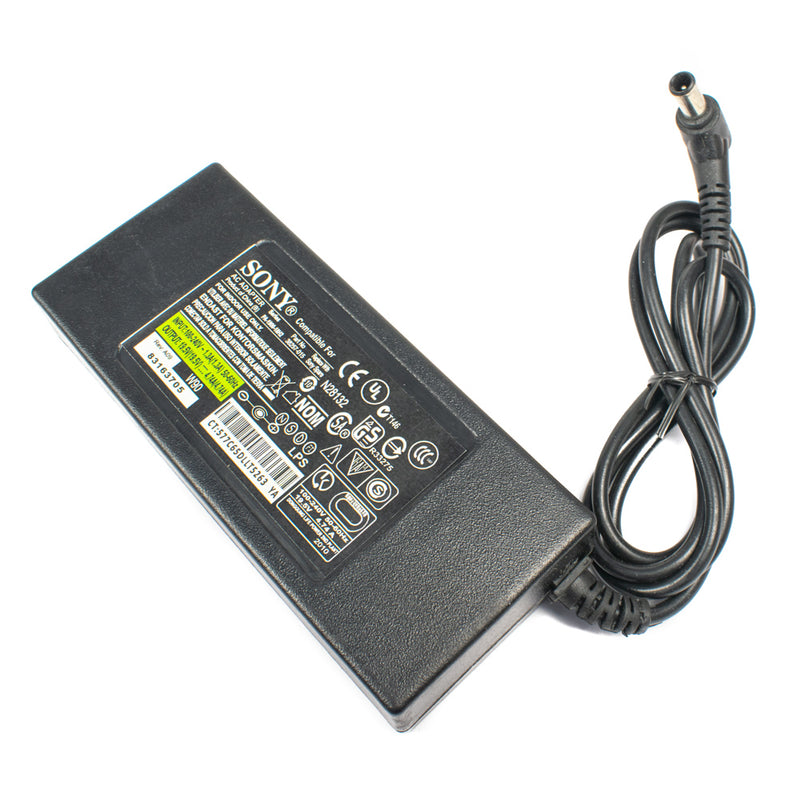

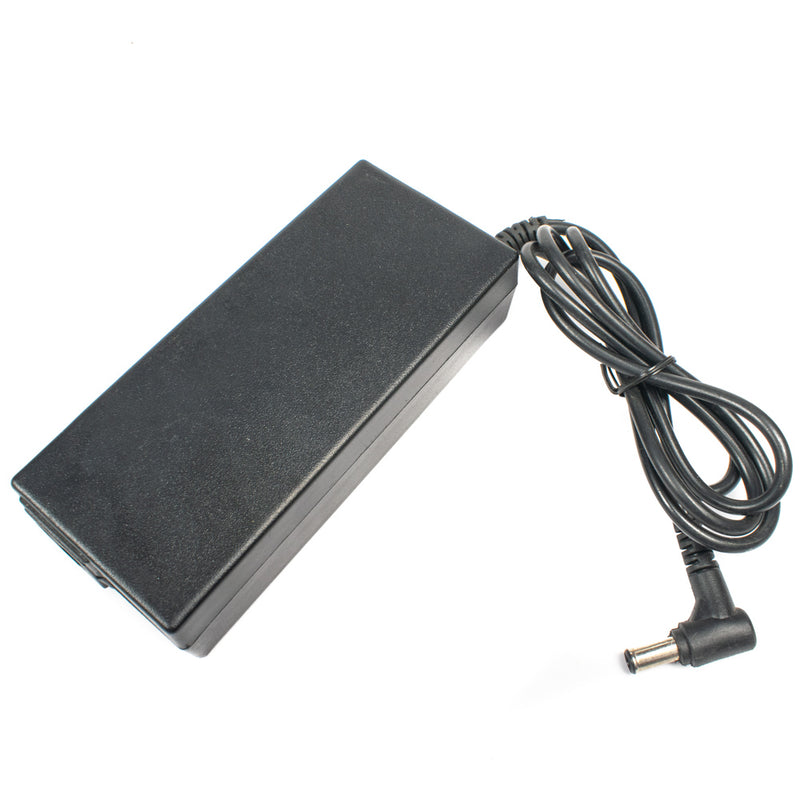

This is the switched-mode power supply (SMPS) AC-DC power adapter which converts 100-240V AC to 19.5V DC. It can provide up to 4.74A maximum current. All types of protections are provided in the supply.
Features
Features
- Output Over Voltage Protection, Over Current Protection, Short Circuit Protection and Surge Protected output are provided.
- Universal AC Range
- No Minimum load is required
- High Efficiency, Reliability & low energy consumption
Specifications
| Input Voltage | 100-240V |
| Frequency | 50-60Hz |
| Output Voltage | 19.5V DC |
| Max. Output Current | 4.74A |
| Dimension | 135x59x33.4mm |
| Wire length | 1 meter |
| DC Jack Outer Diameter | 6mm |
| DC Jack Inner Diameter | 4.5mm |
| Country of Origin | China |
