Description

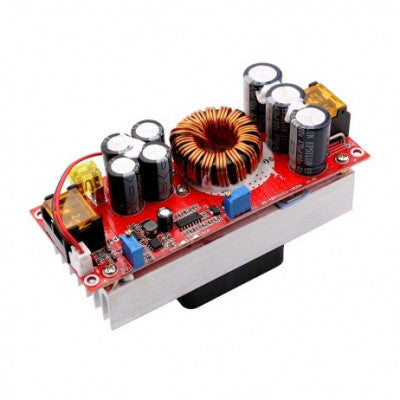

Its 1800W 40A Power Supply Module, It converts 10-60VDC to 12-97V DC with high power and steady output. Excellent conversion efficiency is ensured by high-quality components, up to 97%. has a sophisticated temperature management fan that turns on when the temperature reaches roughly 60 and shuts off when it falls below 60. widely utilized for high power solar street lamp driving, different LED lighting CV driving, vehicle-mounted and mobile device power supply, DIY adjustable CV CC power supply, solar power charging, and different battery charging. It has 7 super capacitor to store charges temporarily, It has an exhaust fan for cooling.
Features:
- The MLCC ceramic capacitor is added to the input and output, and the output ripple is significantly reduced, which is about 100mV at 48V to 72V 4A
- With airfoil-type heat dissipation, the heat dissipation effect is very good, and the output power is even greater (the power of the 48V input and fan can reach around 1800W). The 100V 210A TO-247 large package power tube has a large power margin and good dynamic response
- Temperature-controlled fans, with hydraulic bearing fans, have a very good balance between noise and heat dissipation. When the load is light, the fan does not rotate. After the temperature of the load reaches approximately 60 degrees, the fan automatically turns. Reduce noise and extend life
- Under voltage protection is adjustable, which can effectively protect a variety of batteries and can also be used for solar cells
Specification:
| Model | TR C-80 watt/24 volts |
| Type | Power Supply Module |
| Input Voltage | 8 to 60V |
| Current | 40A |
| Potentiometer's Constant Range | 0.8-28A |
| Operating Frequency | 150KHz |
| Power | 1800W |
| Dimension | 130x66x50mm |
| Country of Origin | China |
