Description

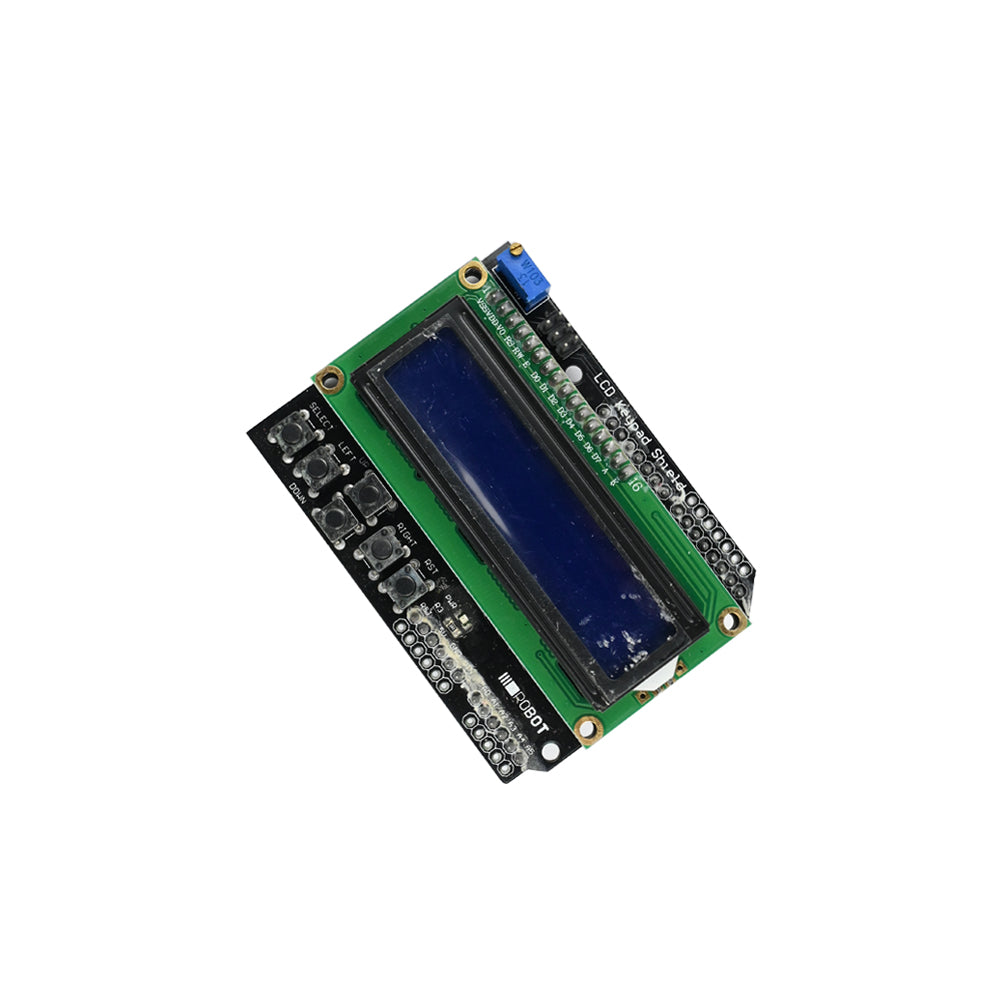

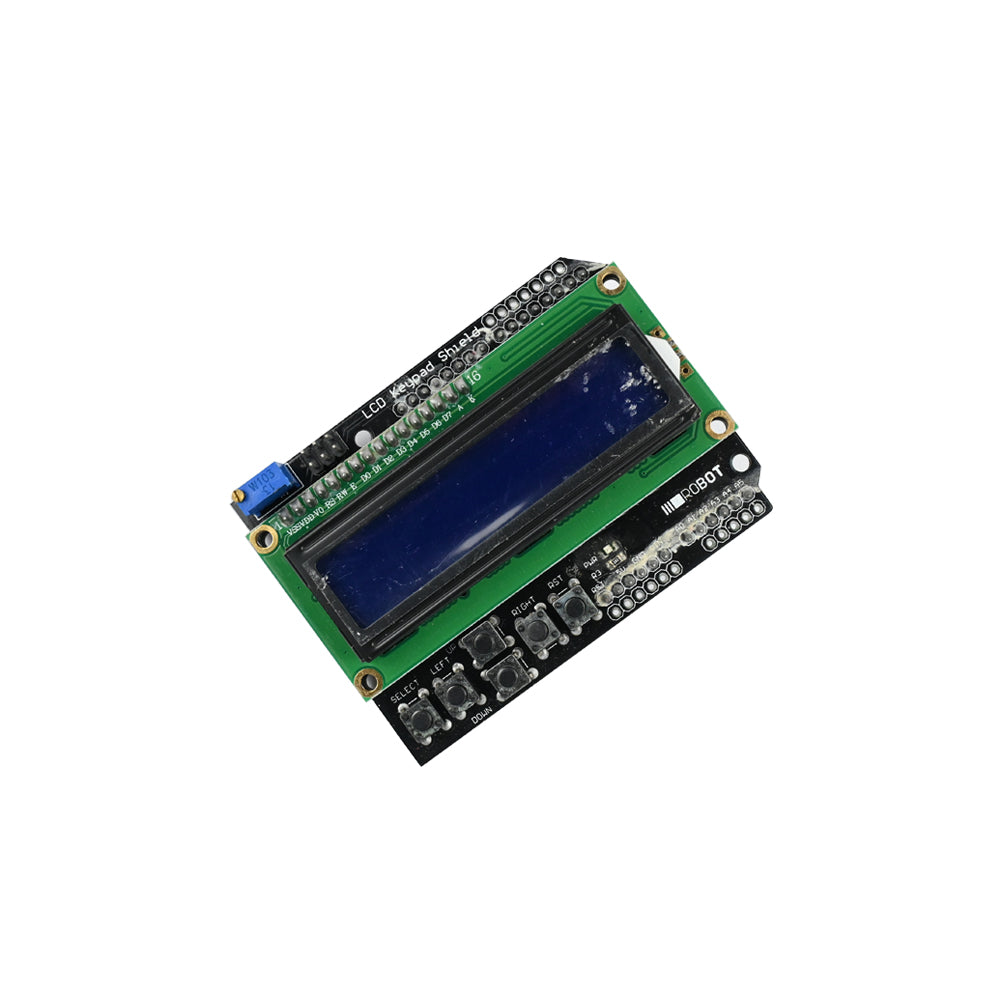

16x2 Keypad LCD Shield is designed for Arduino enthusiasts who want to work with LCD and Arduino without the use of external switches. It has a 2x16 LCD as well as 6 momentary push buttons. The LCD is accessed through Pins 4, 5, 6, 7, 8, 9, and 10. To read the five pushbuttons, just Analog Pin 0 is used. The LCD shield allows you to adjust the contrast and turn off the backlight. It also has five analog pins exposed for simple analog sensor plugging and display. There is also an onboard power LED. This design is wonderful since it allows you to simply connect sensors to the remaining pins and utilize them for monitoring or menu selection with the push buttons, as well as gaming.
Features :
- Blue Backlight with white words
- uses 4 Bit Arduino LCD Library
- Left, Right, Up, Down and Select buttons
- Screen contrast adjustment
- Arduino Reset button
- Operating Voltage is 5V
Specifications :
| Product | 16x2 LCD Keypad Shield - Blue Backlight for Arduino |
| Type | LCD Keypad Shield |
| Size (L,W,H) | 80 x 58 x 13 mm |
| Country of Origin | China |
