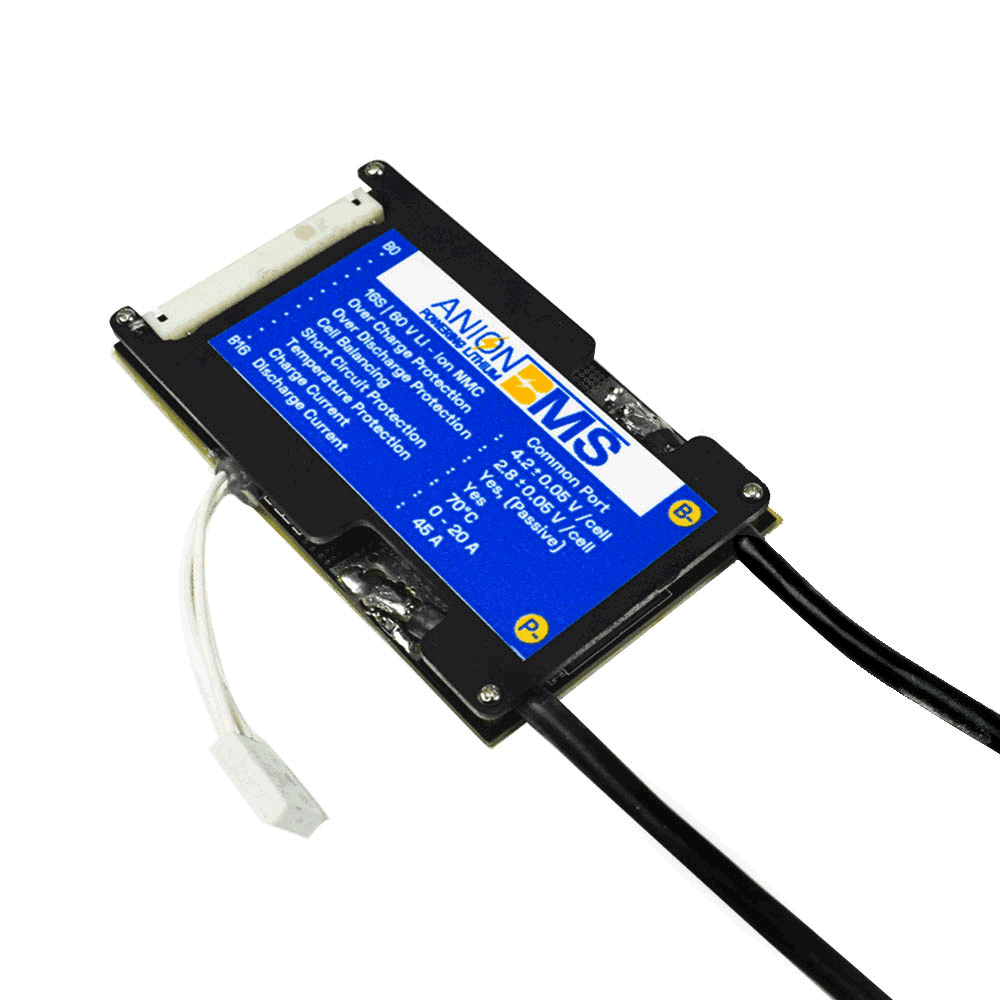

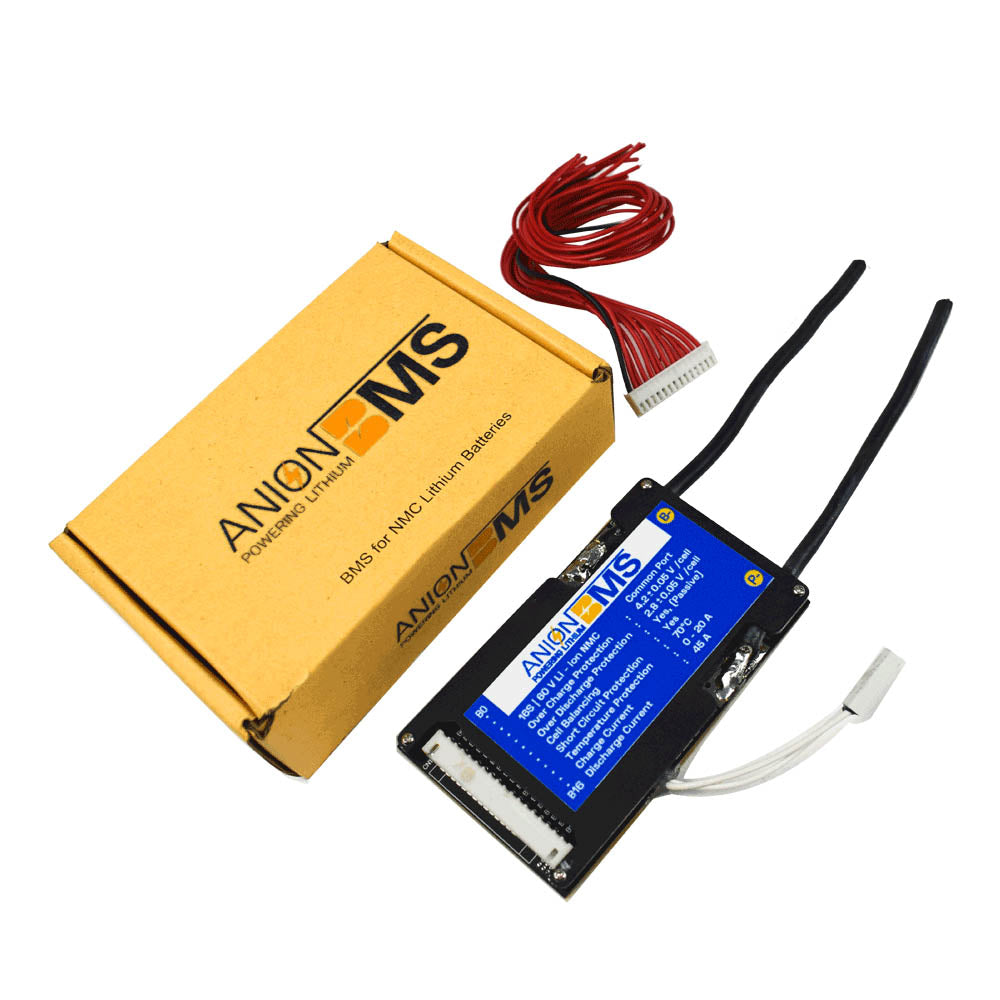

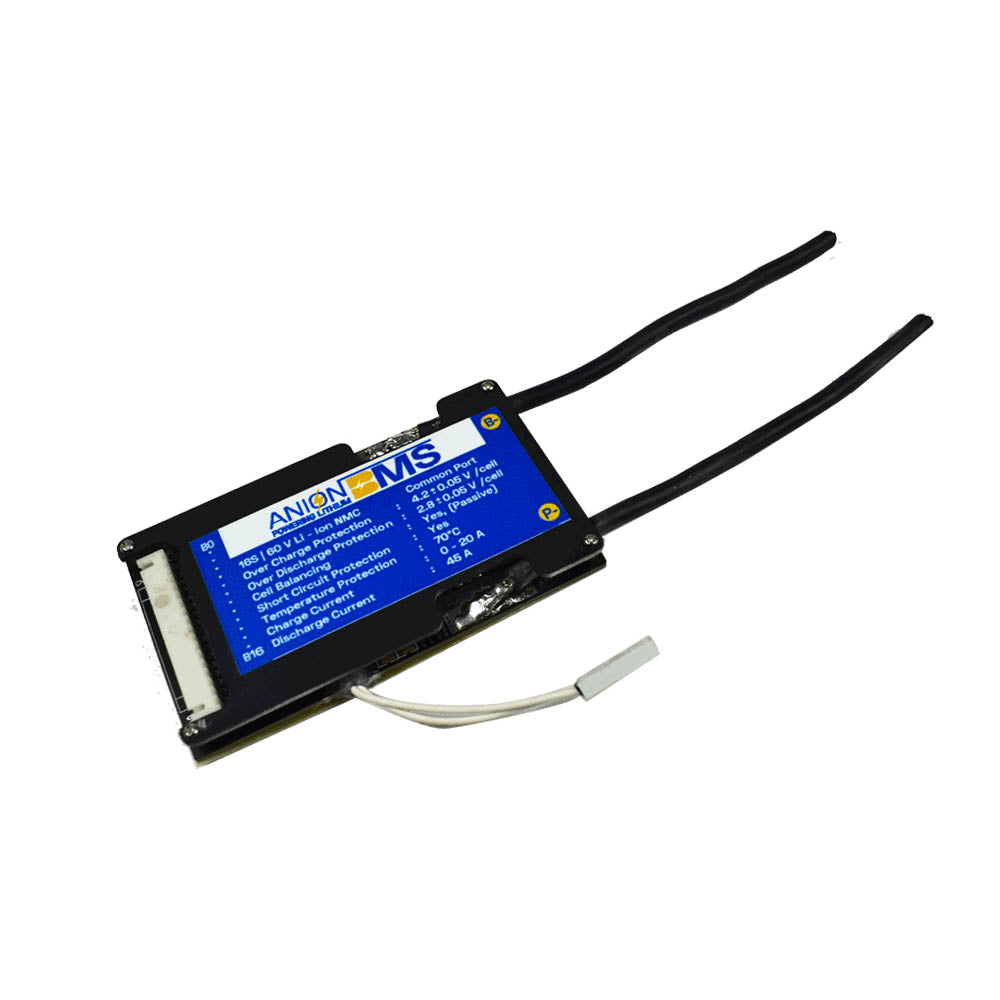

16S 59.2V 45A Anion BMS for Lithium Ion NMC Battery With Cell Balancing (Common Port)

Save 19%
Sold By: HatchnHack

Sale price₹ 1,904.00 Regular price₹ 2,361.00

Tax included Shipping calculated at checkout

Out of stock


A BMS or protection board is any electronic control circuit that monitors, manages, and regulates the charging and discharging of any rechargeable battery (cell or combination of cells called a battery). The lithium-ion batteries can be used only in specified conditions called the safe operating area, and therefore BMS is necessary in order to monitor the battery state, ensure the safety of operation, long battery life. The battery characteristics to be monitored include its state of charge, safe operating area, voltage, current, temperature, individual cell voltage, battery capacity and many more.

Applications: This protection board is widely used in all kinds of 18650 Li-ion battery packs and offers multi-scenario applications.

  • Electric tools
  • Electric Vehicle E-Bicycle / E-Scooter/Bike
  • Battery backup systems
  • Solar/Wind energy storage systems, Solar street lamps
  • Product Type : Battery Management System (BMS)
  • Brand : Anion BMS
  • Variant : 16S | 59.2 V
  • Overcharge Detect Voltage : 4.2±0.05 V/Cell
  • Over-discharge Detect Voltage : 2.8±0.05 V/Cell
  • Cell Balancing : Yes, (Passive)
  • Short Circuit Protection : Yes
  • Temperature Protection : 70°C
  • Charge Current : 0-20A
  • Discharge Current : 45A
  • Size : 10.6x6.2x1.2 cm
  • Country of Origin : India
