Description

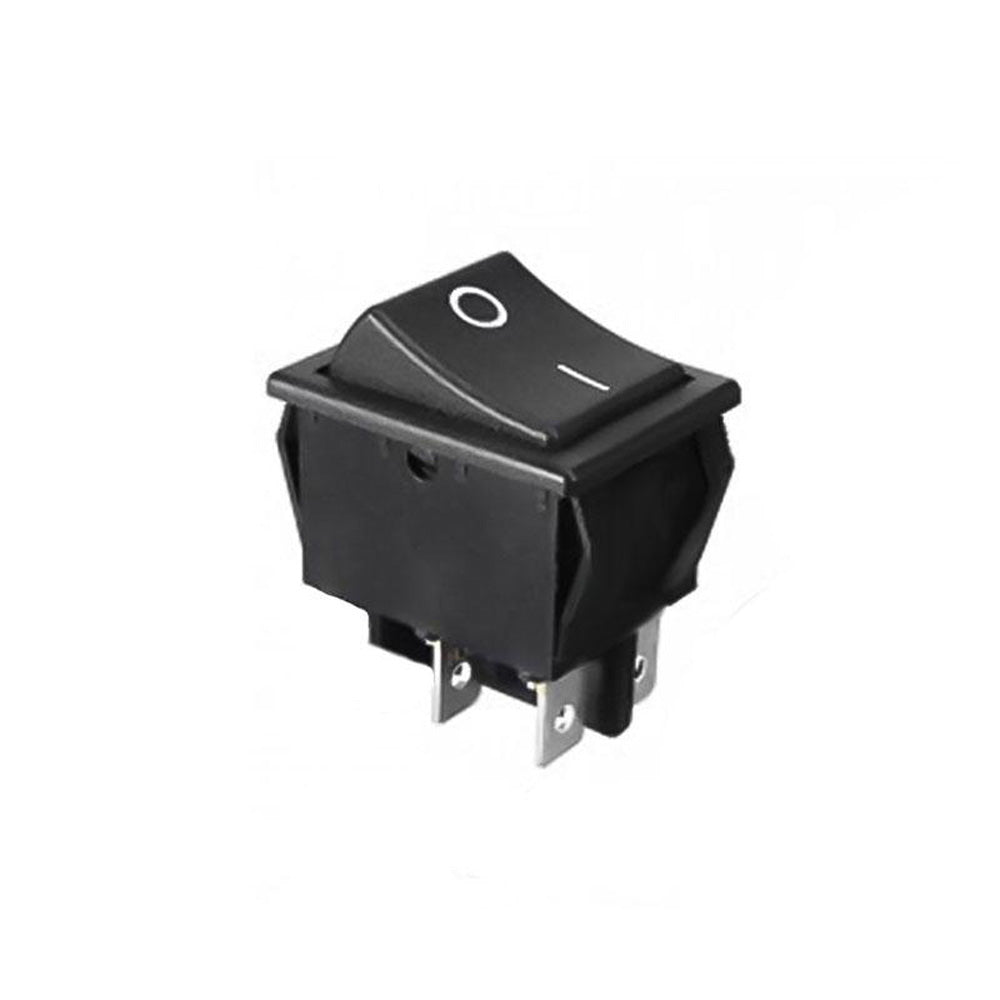

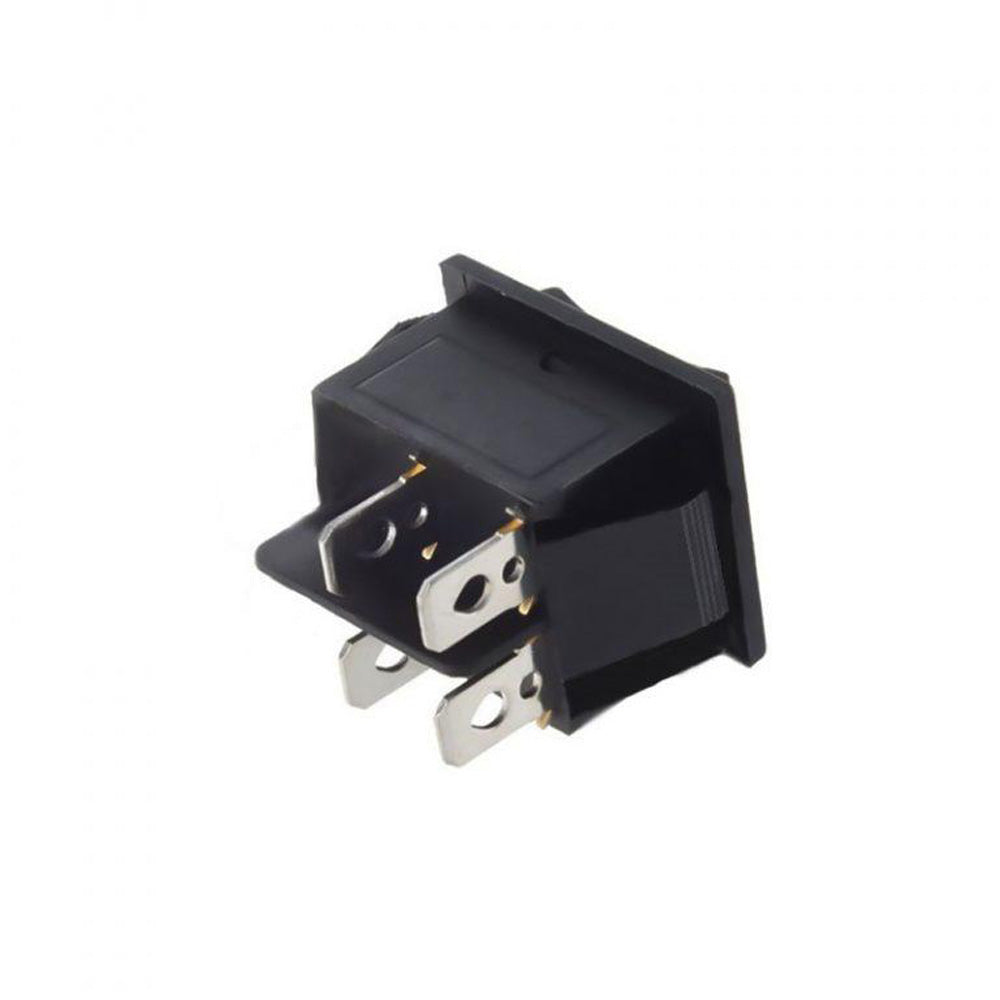

DPST (Double Pole Single Throw) Rocker switch is a 4-pin switch. DPST Rocker switch is very easy to use and install as it requires no screws or nut bolt for its installation. This switch has two positions i.e., ON and OFF. And it stays in its position until it is not pressed again to change its position. ON and OFF positions are clearly marked on the switch as O and I respectively to make it easy to identify the current position of the switch. This switch is rated for the load of 16A 250V and 20A 125V.
Specifications
| Voltage and Current Rating | Max 16A at 250VAC and 20A at 125VAC |
| Switching Mode | ON-OFF |
| Structure | DPST |
| Colour | Black |
| Number of Pins | 4 |
| Dimension (LxWxH) | 21x15x16 (mm) |
| Panel Cut-Out(LxW) | 25x21 (mm) |
| Country of Origin | China |
