Description
Its 16A 250V AC DPDT Rocker Momentary Switch, it has total 6 pins. By switching the supply polarity, the DPDT Rocker Momentary Switch is typically used to cause the motor to rotate both clockwise and anticlockwise. DPDT "Polarity Reversal" is the most common application for this switch. For your projects, here is a straightforward DPDT ON-OFF rocker switch. It merely clips into place; screws are not needed. Just snip one of the two power wires and attach both ends of this two-pin switch to the switch itself to use it. Controlling power to electrical circuits, robotics, etc.
Features:

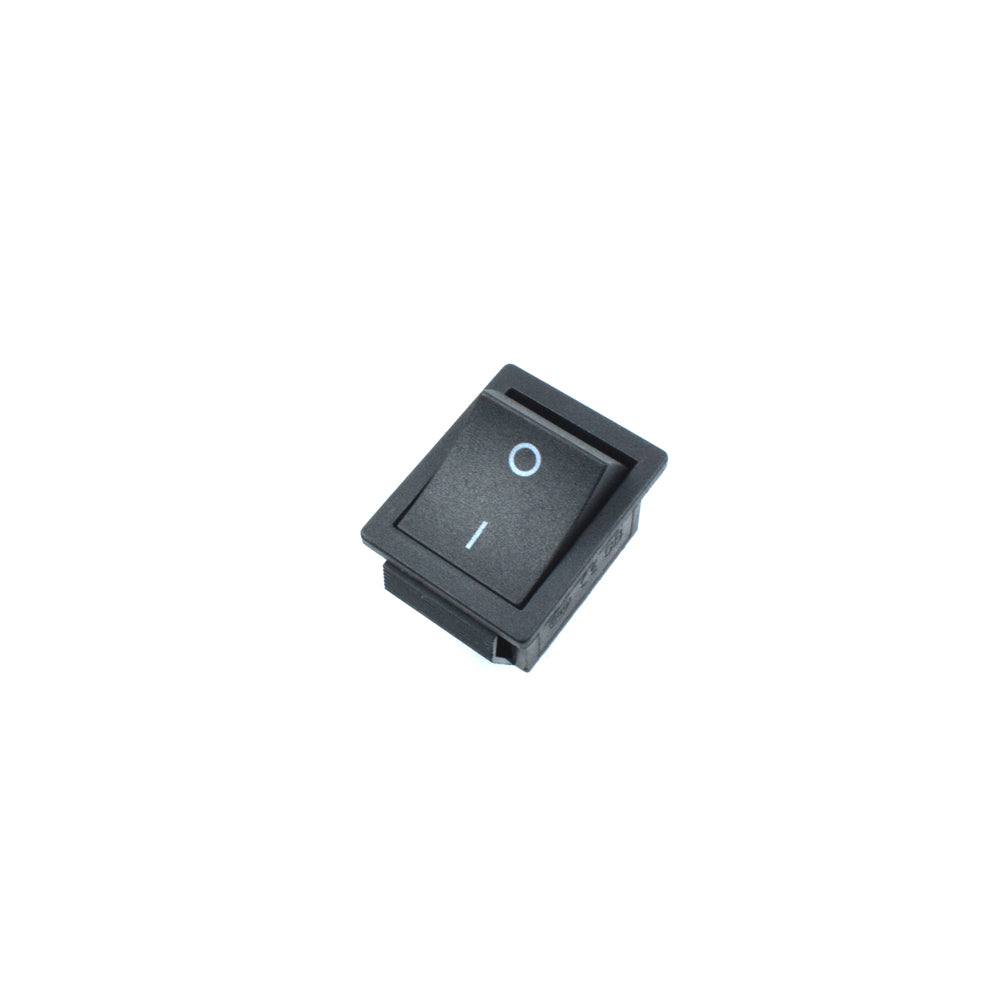

- Its DPDT ON-OFF Switch
- Its Current is 20A at 125V
- Its current is 16A at 250V
Specifications:

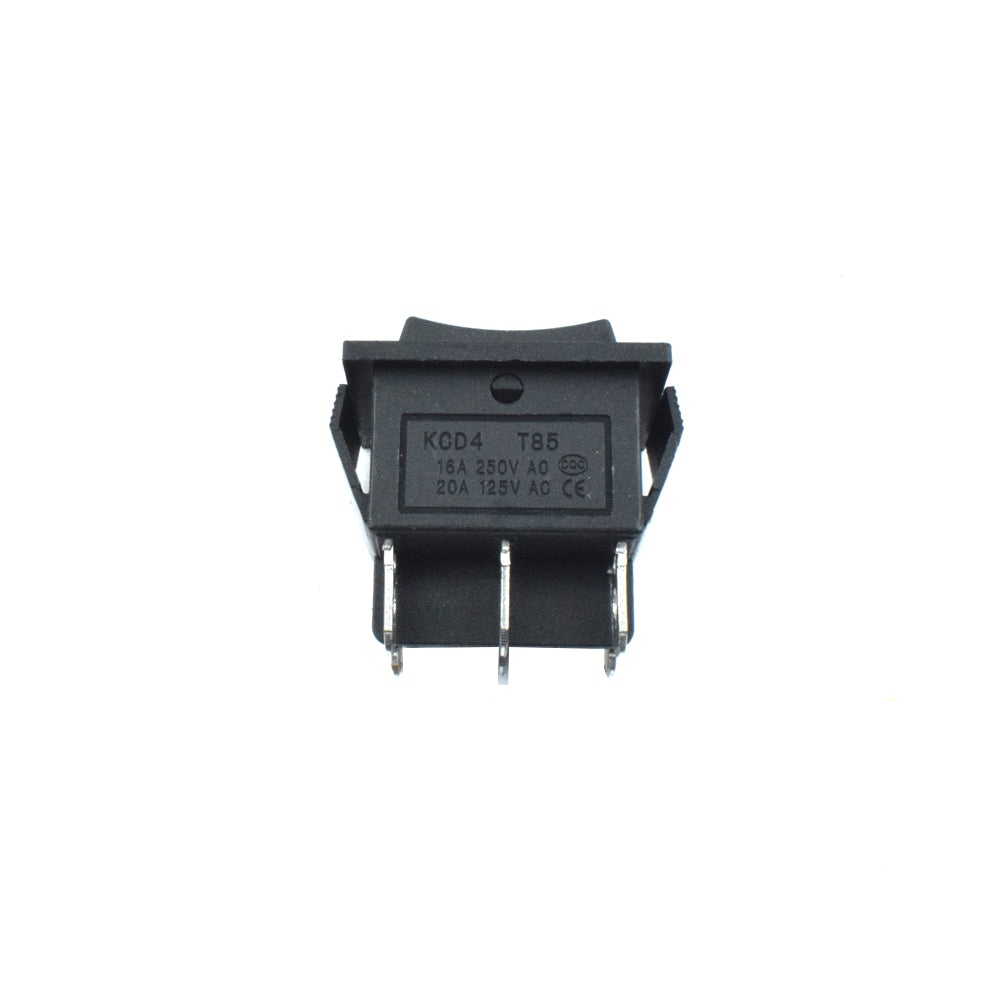

| Model | KCD4 |
| Type | Rocker Momentary Switch |

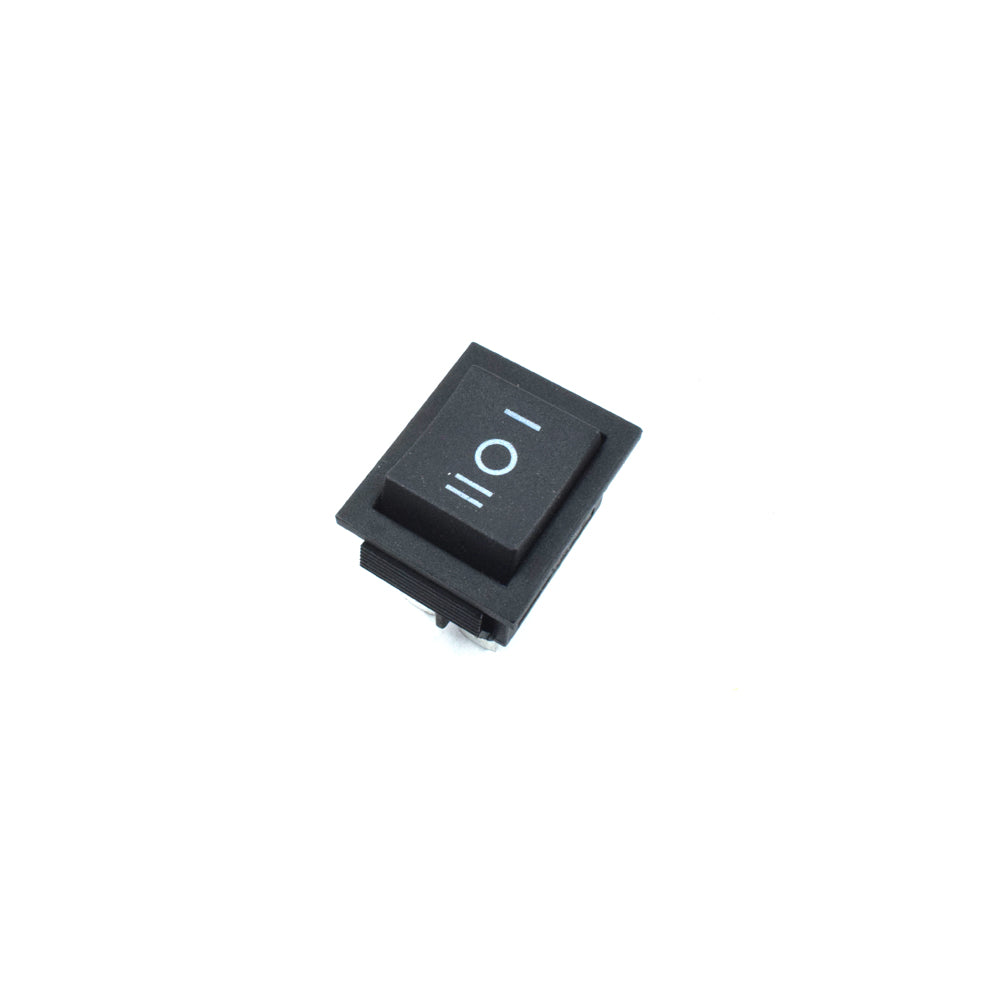

| Switch Type | DPDT Switch(ON-OFF-ON) |
| Voltage | 125/250V |
| Current | 20A/16A |
| No of Pins | 6 |
| Dimension | 32x21x18mm |
| Country of Origin | China |
