Description

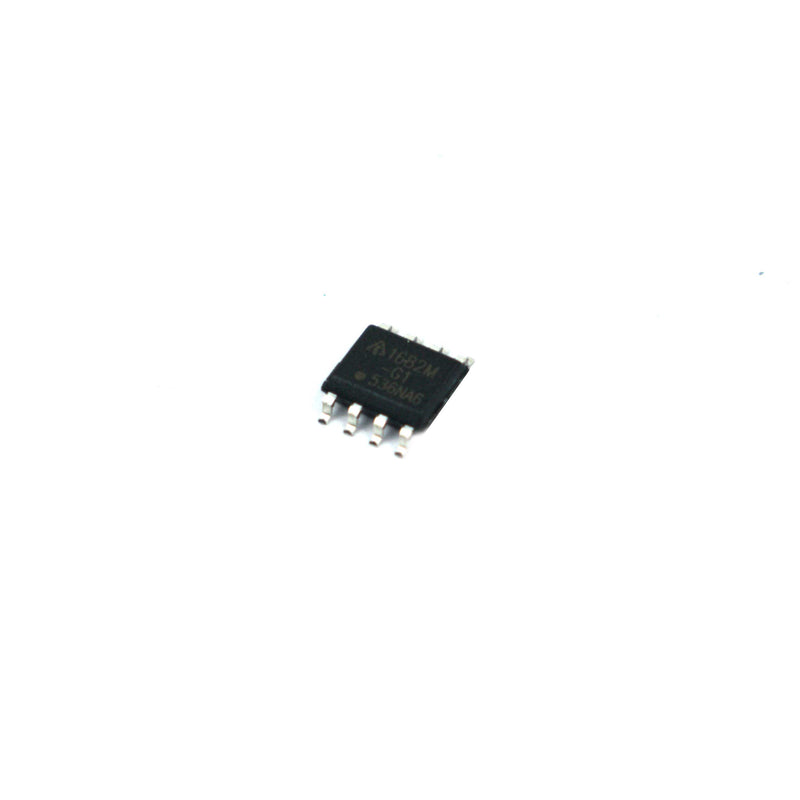

The 1682M-G1 is a single-stage primary side regulation PFC controller for LED drivers in the SOP-8 package. The 1682M is an AC/DC universal input Primary Side Regulation Power Factor Controller with high performance for LED driver applications. The device regulates output current using Pulse Frequency Modulation (PFM) technology to achieve a high power factor and low THD. 1682M eliminates the optocoupler and secondary control circuitry while providing accurate constant current (CC) regulation. It also does away with the need for loop compensation circuitry while maintaining stability.
Features
- Primary Side Control for Output Current Regulation Without Opto-coupler and Secondary CV/CC Control Circuitry
- Low Start-up Current
- High Power Factor and Low THD for Universal Input Range
- Eliminates Control Loop Compensation Circuitry
- Cost Effective Total PFC LED Driver Solution
Applications
- Power Factor Correction in a Single Stage LED Lighting Power Supply
Specification
| Marking/Model | 1682M-G1 |
| Type | Active |
| Min Power Supply Voltage (VCC) | 9 V |
| Max Power Supply Voltage (VCC) | 21 V |
| Package | SO8 |
| Temperature Range | -40°C to +105°C |
| Driver Output Current (IOUT) | 300mA |
| Mounting type | SMD |
| No. of Pins | 8 |
| Storage Temperature Range | -65°C to +150°C |
| Power Dissipation(PD) | 0.65W |
| Country of Origin | China |
