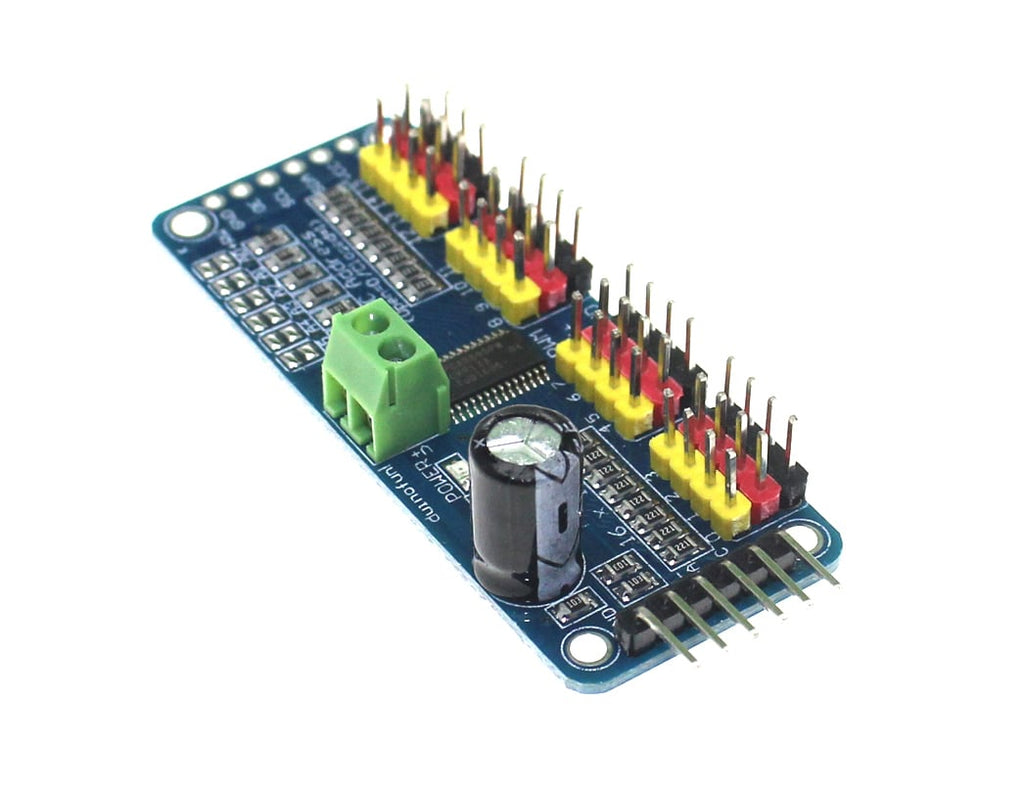

Description
- Adjustable frequency PWM up to about 1.6 KHz
- 12-bit resolution for each output – for servos, that means about 4us resolution at a 60Hz update rate
- Configurable push-pull or an open-drain output
- The output enable pin to quickly disable all the outputs
- Terminal block for power input
- Reverse polarity protection on the terminal block input
- Green power-good LED
| Driver IC |
PCA9685 |
|---|---|
| Length (mm): |
62 |
| Width (mm): |
25 |
| Height (mm): |
15 |
| Weight (g): |
10 |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 8 × 4 × 3 cm |
