Description

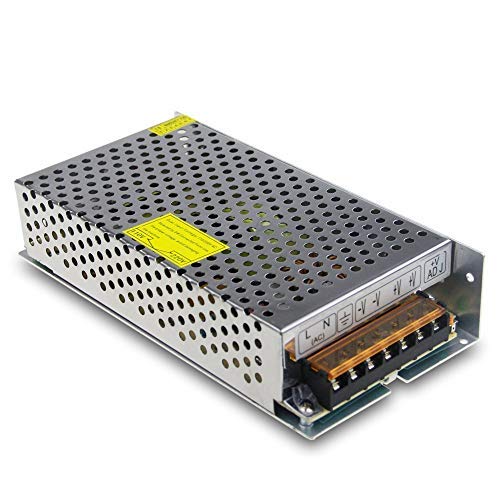

This is the switched mode power supply (SMPS) which convert 100-250V AC to 15V DC. It can provide upto 10A maximum current. All type of protections are provided in the supply. Two connected outputs are provided in the supply.
Features:
- Output Over Voltage Protection, Over Current Protection, Short Circuit Protection and Surge Protected output are provided.
- Universal AC Range
- Metal Case is provided
- No Minimum load is required
- High Efficiency, Reliability & low energy consumption
- Two connected outputs are provided in the power supply.
Specifications
| Input Voltage | 100V-250V AC 50 / 60Hz |
| Output Voltage | 15V DC, 10A |
| Protections | Output Over Voltage Protection, Over-Current Protection, Short Circuit Protection, Surge Protected Outputs |
| Dimensions (LxWxH) | 155x98x43 (mm) |
| Weight | 322 gm |
