Description

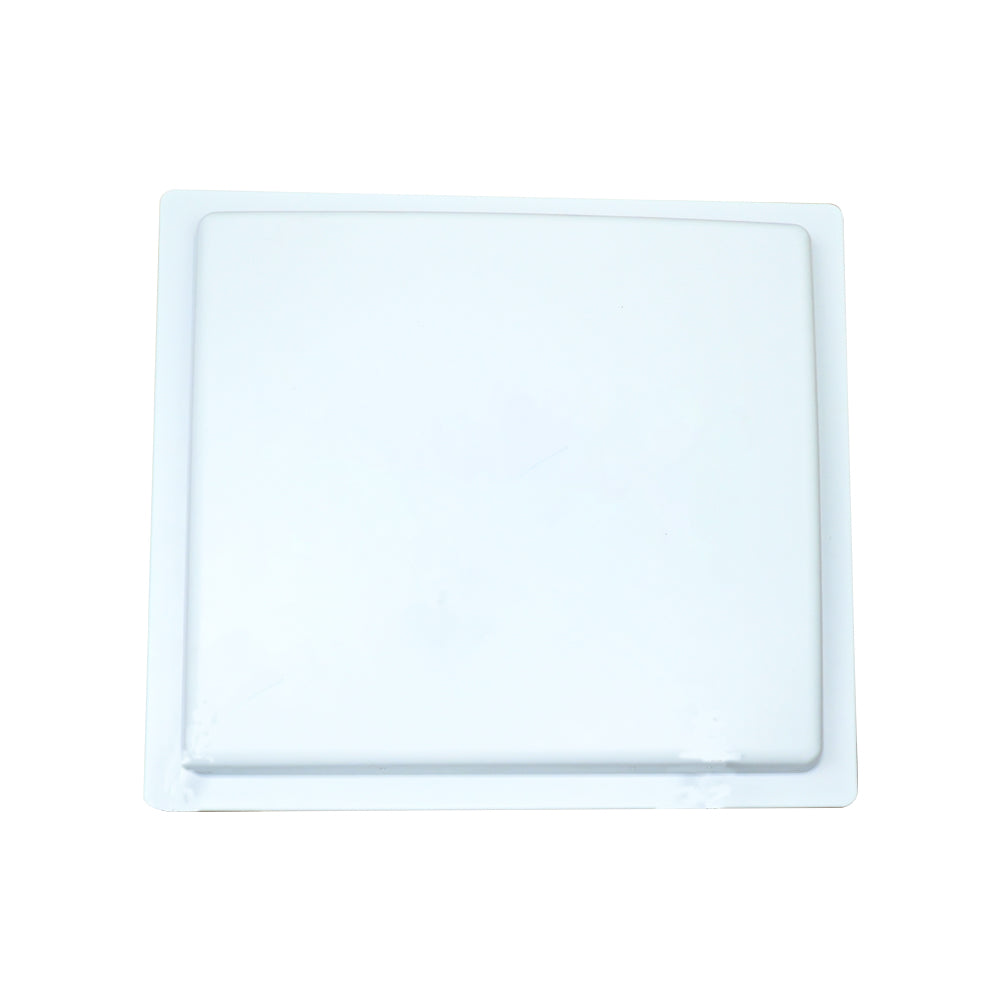

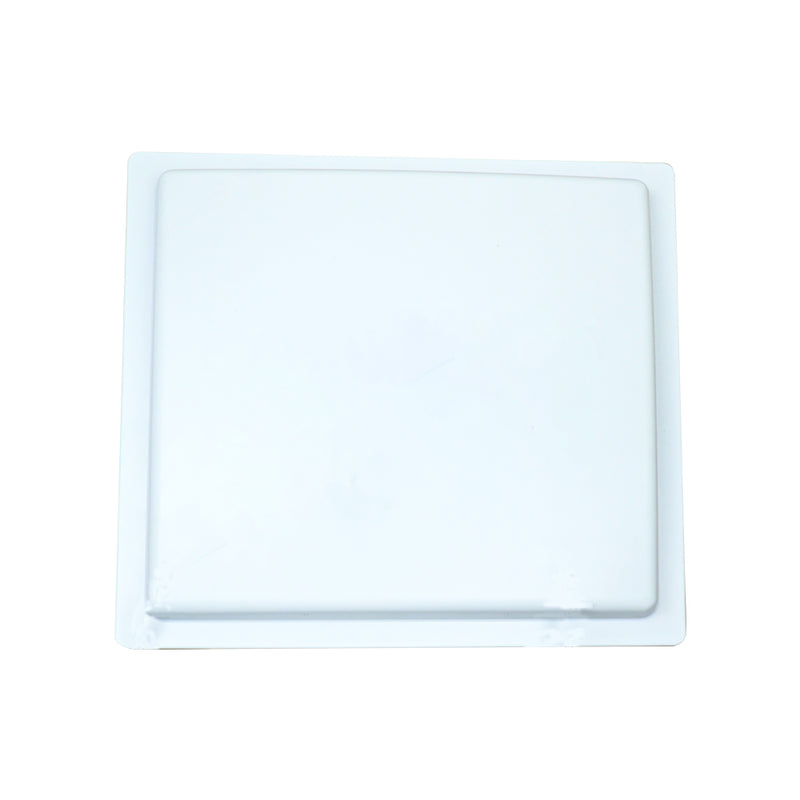

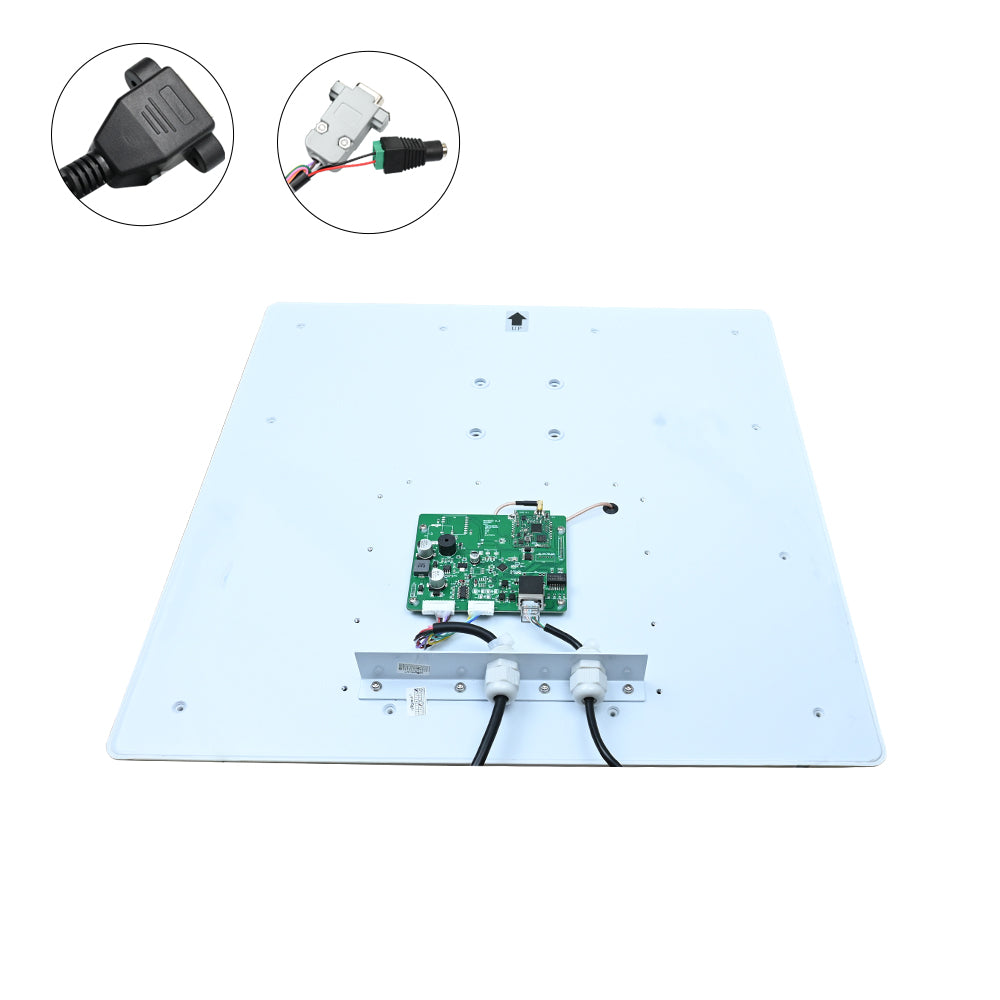

This is a UHF Reader with a frequency range of 865~868MHz/902~928MHz and a range of 15Mtr. It has a Rs232 LAN for communication and connection to a computer. It is suitable for a variety of applications such as access control, industrial automation, and data collection. It is easy to install and use, making it ideal for both home and commercial use. It is highly reliable and offers excellent performance. It is a cost-effective solution for your UHF reader needs.
Features:
- Power Supply 100-240V, DC +9V (Power Adapter Required)
- Output Power 1W 30db Adjustable
- Comm Interface RS232, RS485, Wiegand 26/34 and TCP/IP
- Power Consumption ~10W
- Work Frequency 865-868MHz (ISM Band)
- Air Interface Protocol ISO18000-6B, EPC Class 1 Gen2(ISO 18000-6C)
- Antenna: Integrated 12dbi linear/circular polarised antenna
- VSWR <1.3
- Read Range 0-15m
- Write Range 0-6m
- Indicators Buzzer
- Operating Mode: Answer, Active, Trigger
- Reading Rate Software Programmable
- SDP: Provided DLL and Demonstration Software Source code to Facilitate Further Development
- Frequency Hopping: FHSS
- Protection Class IP-65 and above (Rain Proof)
- Operating Temperature -25 Degrees C to 65 Degrees C
- Operating Humidity 10% RH -95% RH
- Software Support: SDK Required
- Lighting Protection: Required
Applications:
Warehouse Management
Vehicle Tracking
Asset Tracking
Personnel Access Control
Production Line Management
| Specifications | |
|---|---|
| Read Range |
0-15m |
| Technology | RFID |
| Com Interface | RS232, RS485, Wiegand 26/34 and TCP/IP |
| Supply Voltage | 9V DC |
| Dimension | 440 x 455 Cm |
| Frequency | 865~868MHz/902~928MHz |
| Type | RF Reader |
| Write Range | 0-6m |
| Country of Origin | China |
