13S 48V 30A Li-ion Smart Battery Management System

Sold By: OSR EnterprisesSKU: OSR90

Price:
Sale price₹ 7,208.00

Tax included Shipping calculated at checkout

Min Qty:

Description

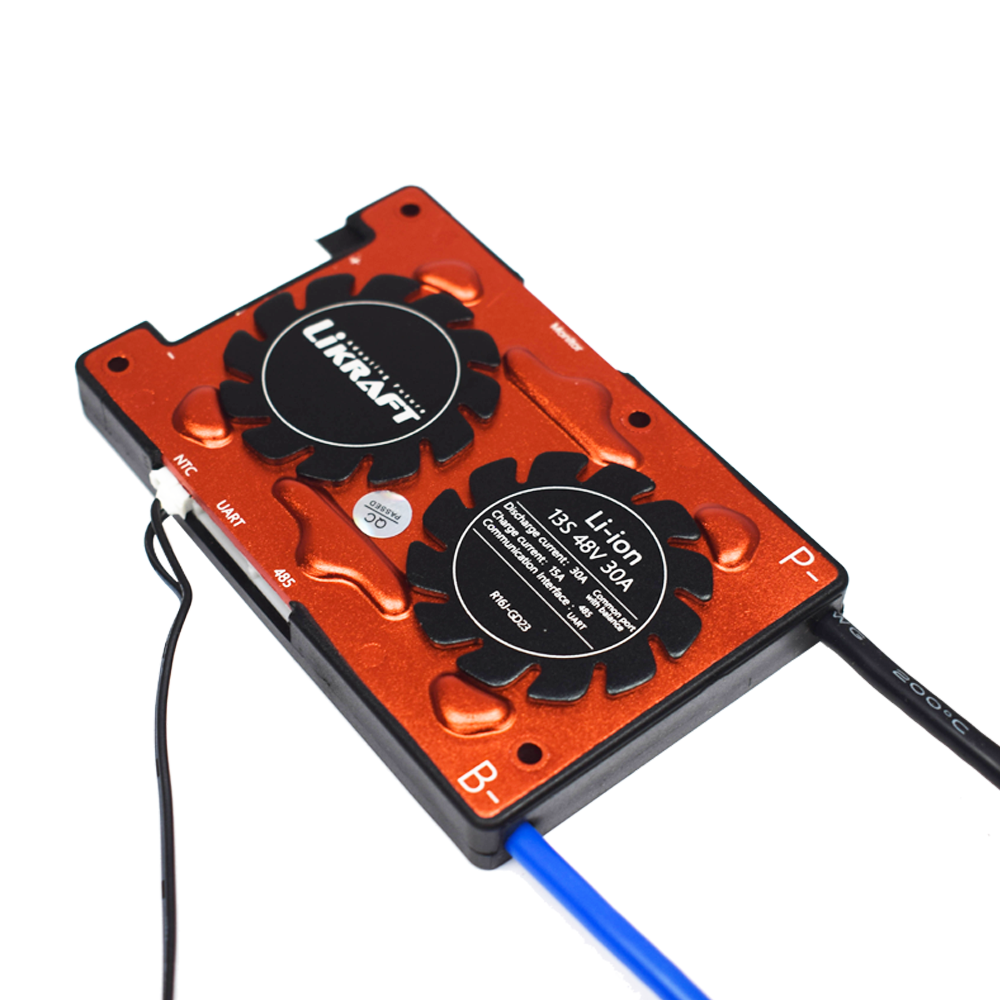

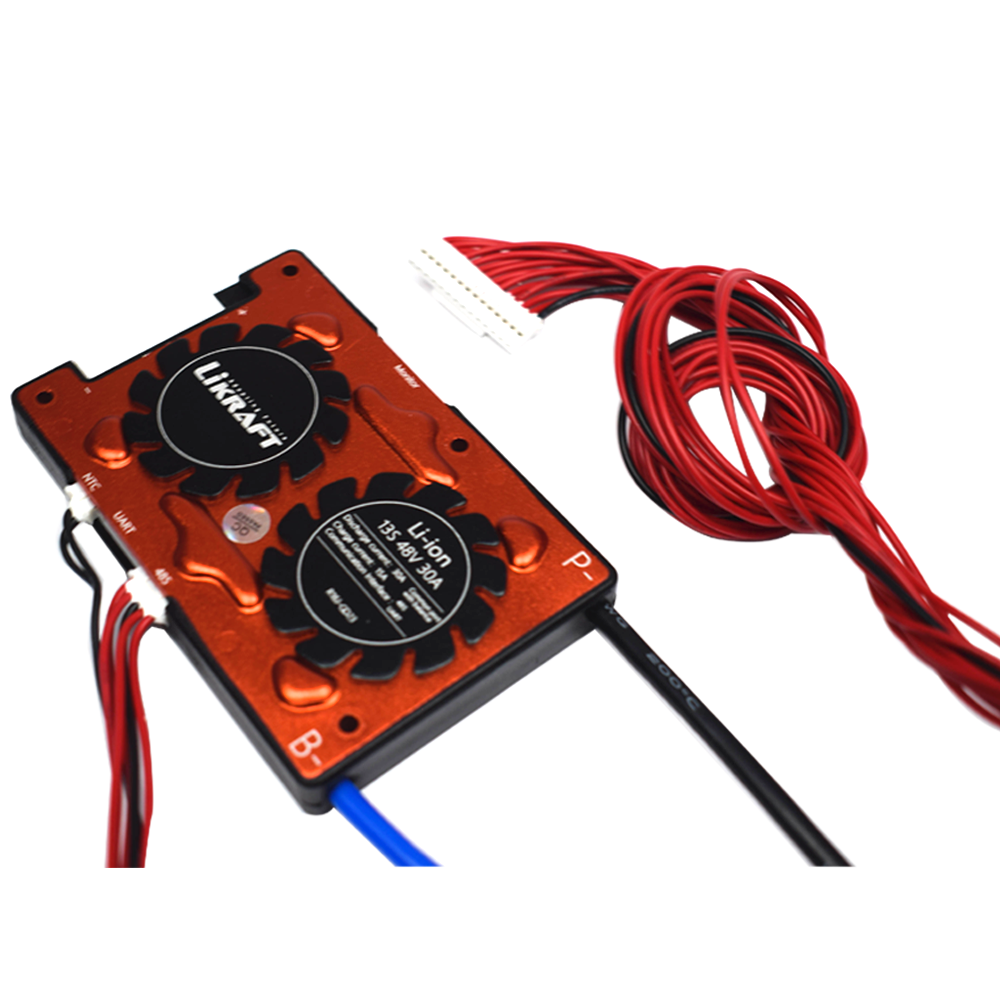

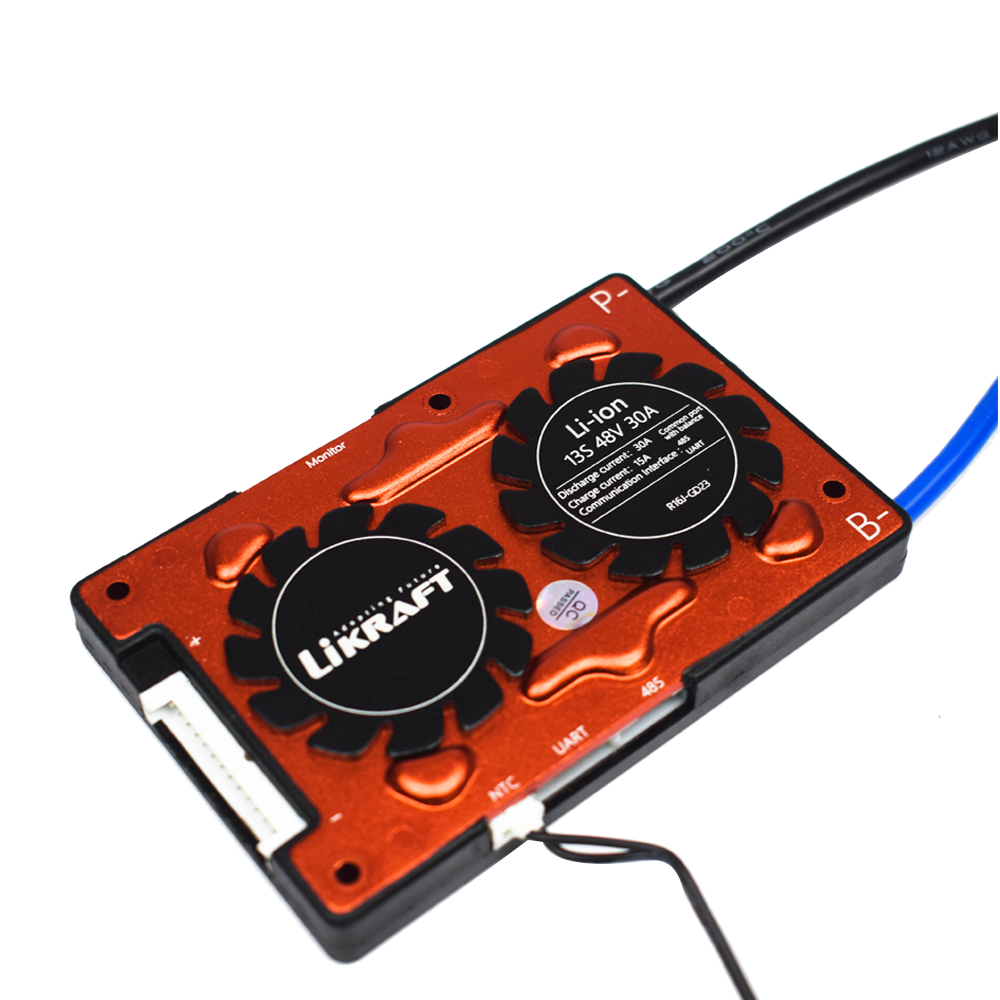

LIKRAFT LI-ION 13S 48V 30A is a BMS - A battery management system designed to monitor battery status and control the charging and discharging process.
This charge-discharge controller module can accommodate a simultaneous connection of 13 rechargeable batteries in series. The module is protected from overcharge, over-discharge, and short circuits. When at least one battery reaches its maximum capacity, the charge controller, among its functions, is to cut off the electricity to the batteries.

30 A is the maximum permitted current. The charge controller engages the protection mode if the supplied voltage exceeds the maximum permitted value. Monitor port is also there to check the battery health status. And it comes with RS - 485 and UART communication protocol. This  BMS  is designed to maximize battery life. The NTC port is there to measure the temperature of BMS

Features

  • Overcharge protection
  • Over-discharge protection:
  • Over-discharge protection recovery:
  • Overcurrent protection:
  • Overcurrent protection recovery:
  • State of charge calculations.
  • Cell overvoltage and under-voltage protection.
  • Intelligent battery balancing

Applications

  • Solar street lamp
  • Backup power
  • Energy storage
  • Electrical vehicle
 Specifications
Model
R16J-GD23
Brand Likraft
Type Battery Management System
Discharge Current 30A
Charge current 15 A
Communication interface UART
Maximum voltage 48V
Dimensions 100 x 65 x 13mm
