Description

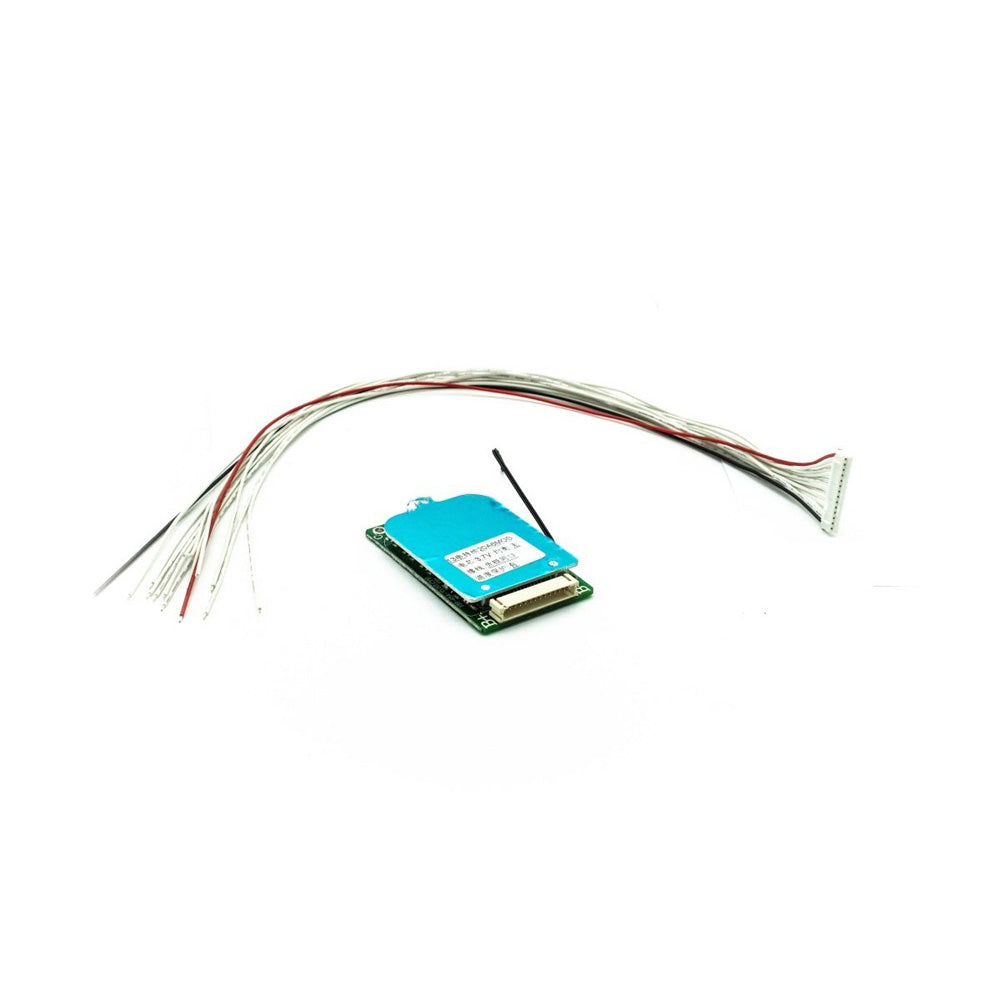

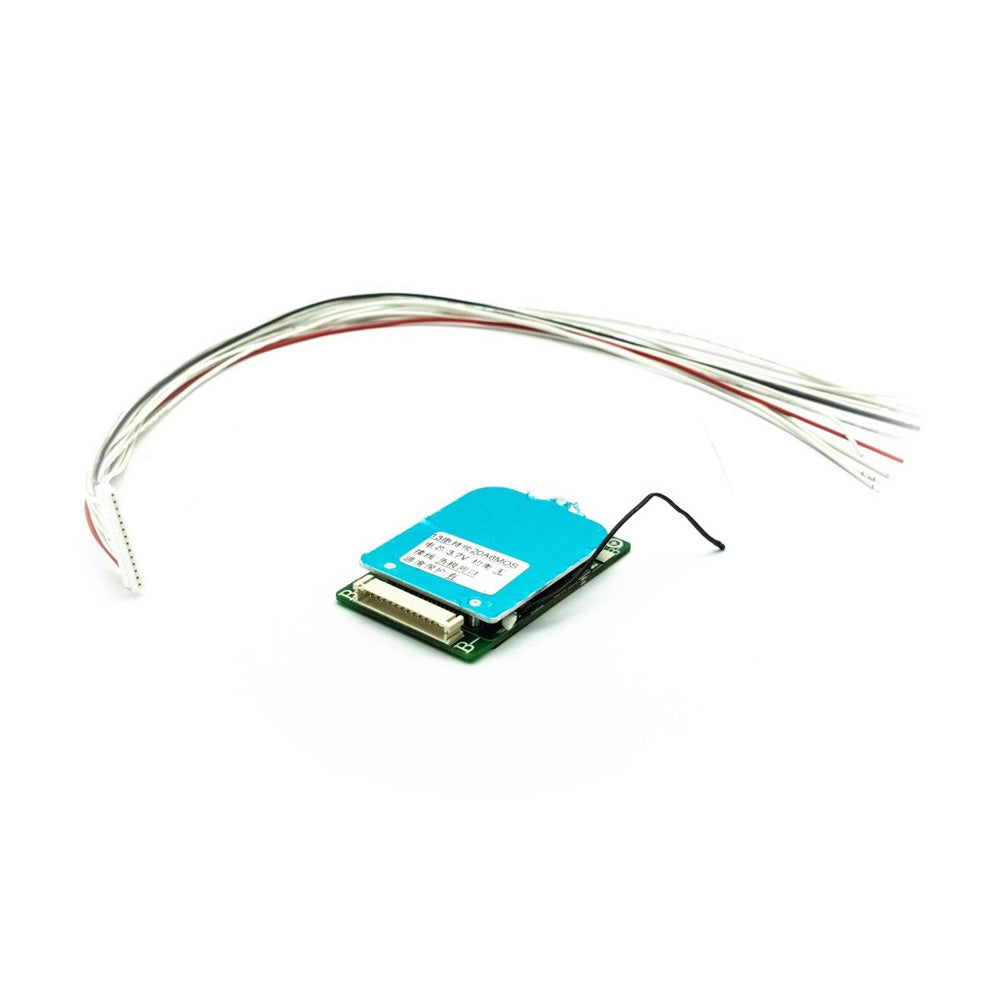

13S 48V 20A Li-ion Battery Protection Board is used for Overcharge protection, over-discharge protection function, short circuit protection function and over current protection function.
Specification
| Overcharge Voltage Range per Cell |
4.2±0.05V |
| Over-discharge Voltage Range per Cell | 2.5±0.05V |
| Charging Voltage | 48V |
| Continuous Discharge Current | 20A |
| Size | 74x46.5x8.2mm |
