Description

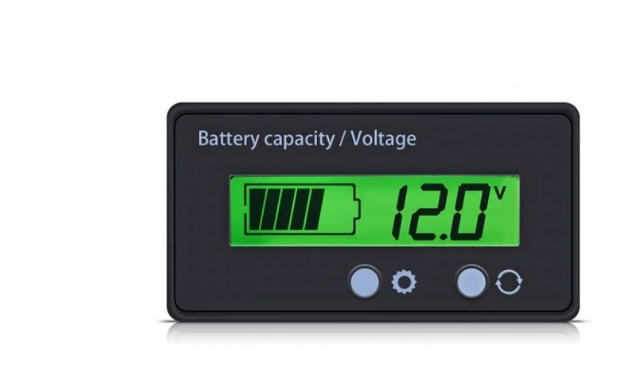

It's a 12V To 84V DC Lead acid Battery Capacity Indicator, which is a tiny and compact voltmeter with a Green display. The two wires are connected to the voltmeter. Connect the Red wire to the positive pole of that source across which you want to measure the voltage and connect the Black wire to the negative pole. This voltmeter can be used to monitor the battery voltage of motorcycles, automobiles, etc.
Features :
- Voltage Measuring Range: 12V To 84VDC.
- It is a 2-wire display.
- Accuracy: 0.1 V.
- Current Consumption: Less than 20mA, generally 5-15mA.
- LCD Monitor
Specifications :
| Product |
Lead acid Battery Capacity Indicator |
| Type |
Volt Meter |
| Voltmeter Range |
12V To 84V DC |
| Current Consumption | <15 mA |
| Display LED Color |
Green |
| Accuracy | 0.1V |
| Dimension (L,W,H) | 55 x 14 x 33 mm |
| Country of Origin | China |
