Description

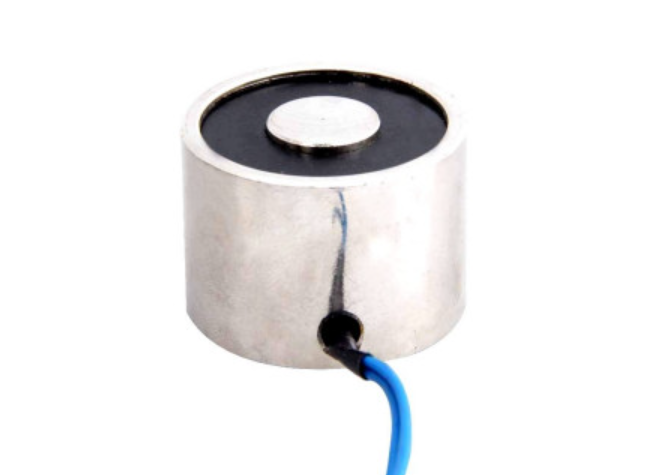

An iron core and a coil make up this DC 12V KK-P20/15 3KG Lifting Solenoid Electromagnet‚ which uses the magnetic action induced by electric current to attract magnetic substances only when the current is applied. This smaller utilitarian gadget offers high power with high dependability. One of its distinctive characteristics is also the structure and design for releasing the magnetism that remains after de-energization.
Features:
-
Our DC-powered electromagnet generates a magnetic field of high power with high efficiency.
-
Minimized in residual magnetic
-
Lightweight‚ compact design for space-saving.
| Specifications | |
|---|---|
| Dimension | 20 x 15mm |
| Material | Electromagnet and Mild Steel |
| No of Pins | 2 |
| Nominal Current | 0.17A |
| Model No. | KK-P20/15 |
| Voltage | 12V DC |
| Power Rating | 2W |
| Type | Solenoid |
