Description

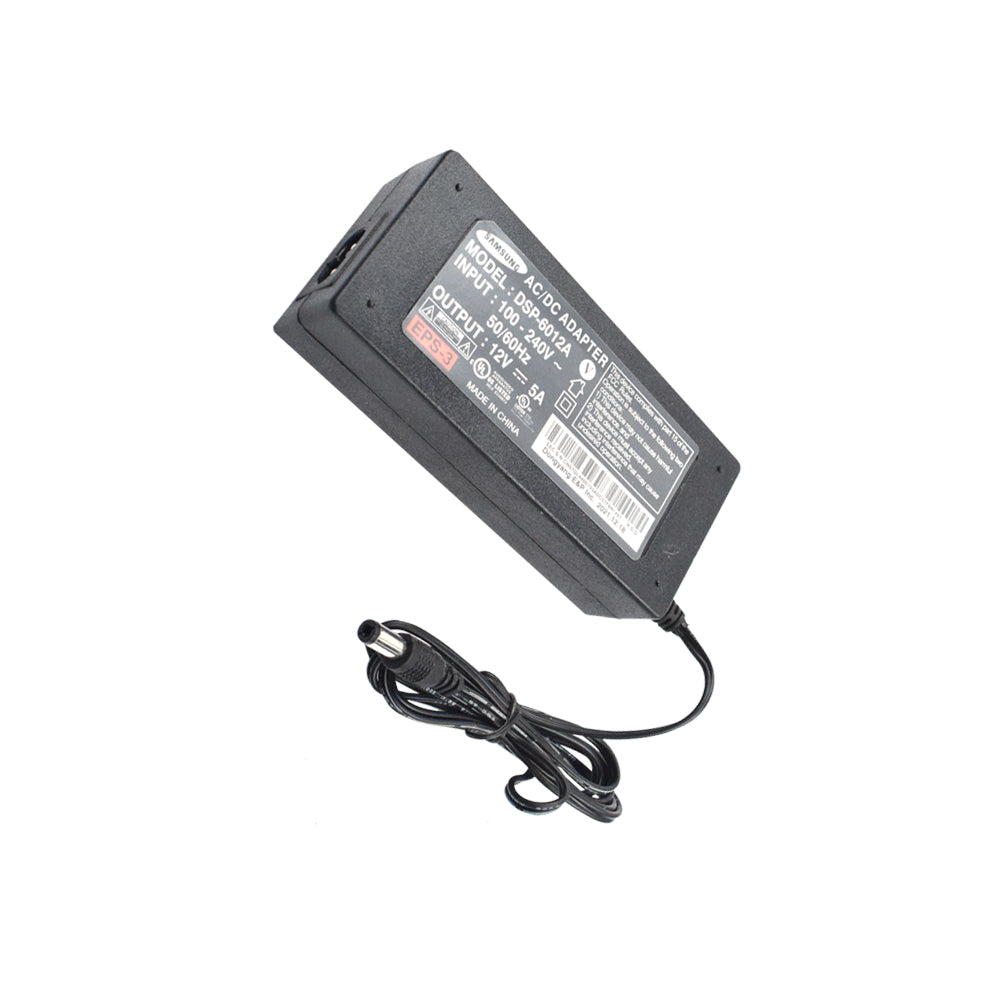

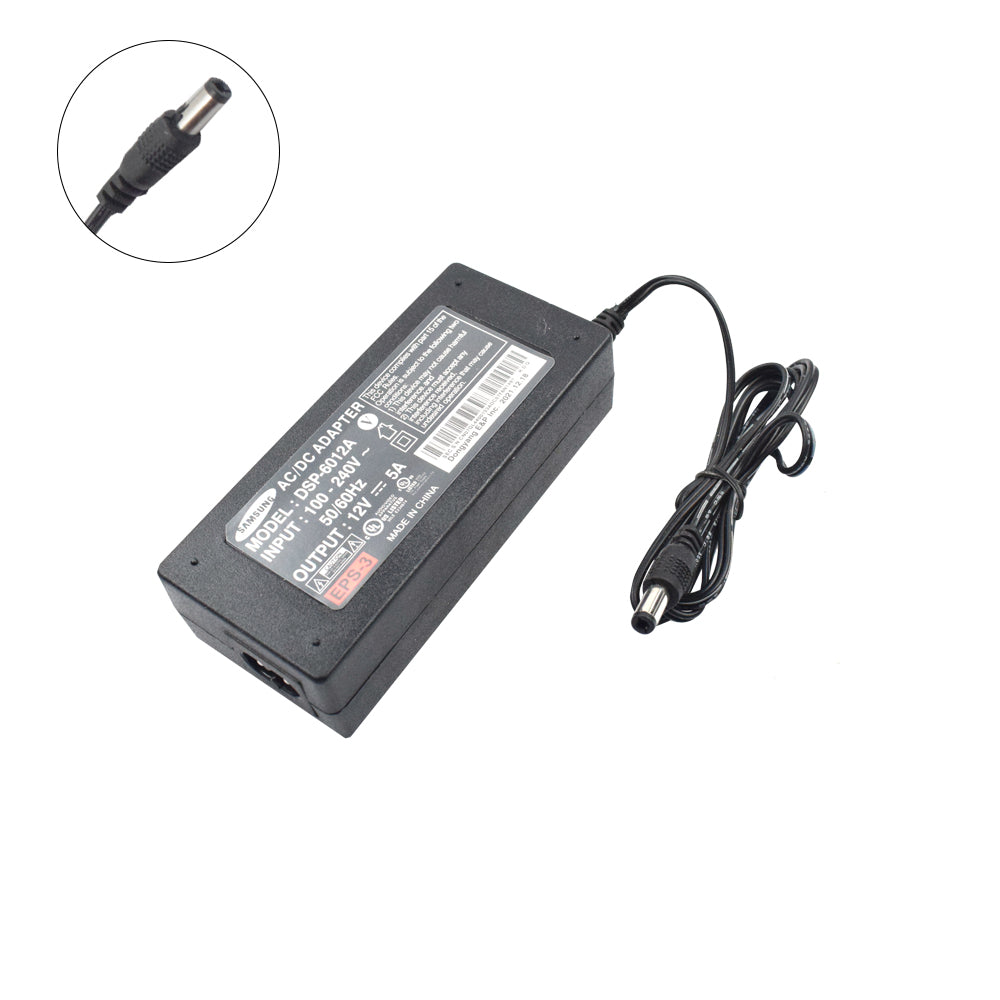

It is a 12V 5A DC Power Supply AC Adapter. An AC adapter is an external power supply that converts alternating current (AC) from a wall outlet to a direct current (DC) needed by an electronic device. This is an AC-DC power adapter with a switched-mode power supply (SMPS) which converts 100-240V AC to 12V DC. It has a maximum current rating around 5A. The supply includes all forms of protections. Its has ferrite cord for protection. It Commonly used in laptops, PC, Cameras, LED light, CCTV, Router. It is widely used for LED Driver and as a Switched-mode power supply (SMPS) for various devices which required 12V with high current up to 5A.
Features:
- Highly efficient, compact, durable and long life.
- High-Reliability
- Short Circuit, Over Voltage & Over Current Protection
- Good quality SMPS Based Adapter
- Stabilized output, low ripple & low interference
- High Efficiency & low energy consumption
Specifications
| Type | AC - DC Adapter |
| Input Voltage | 100V-240V AC |
| Frequency | 50/60Hz |
| Output Voltage | 12V DC |
| Output Current | 5A |
| Size | 110*46*29 mm |
| DC Output Cable Length | 1.5 meter |
| DC Type | DC Jack |
| DC Jack inner diameter | 2.5mm |
| DC Jack outer diameter | 5.3 mm |
| Brand | Not Specified |
| Country of Origin | China |
