Description

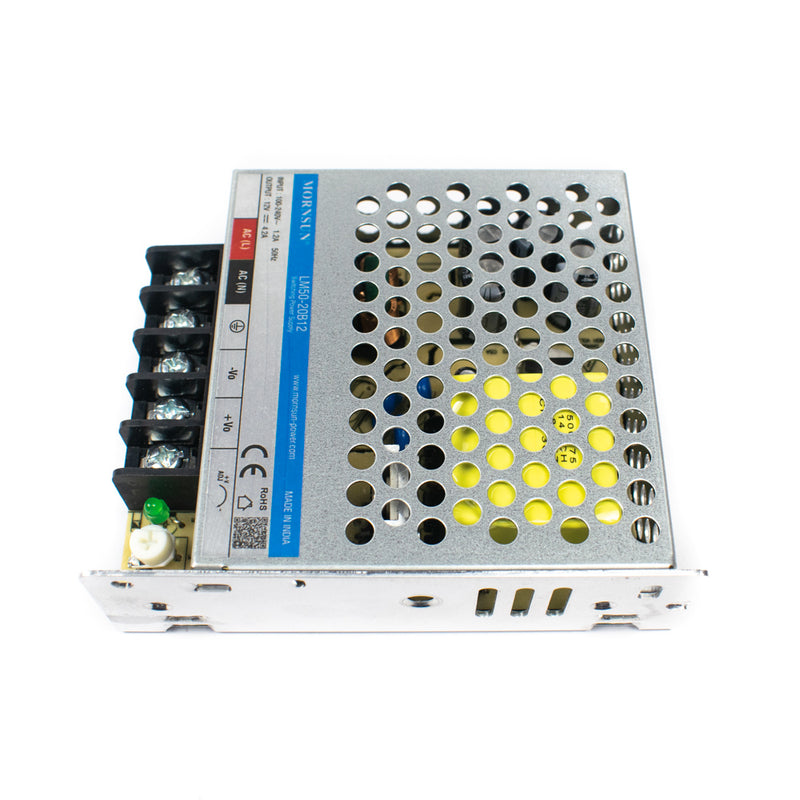

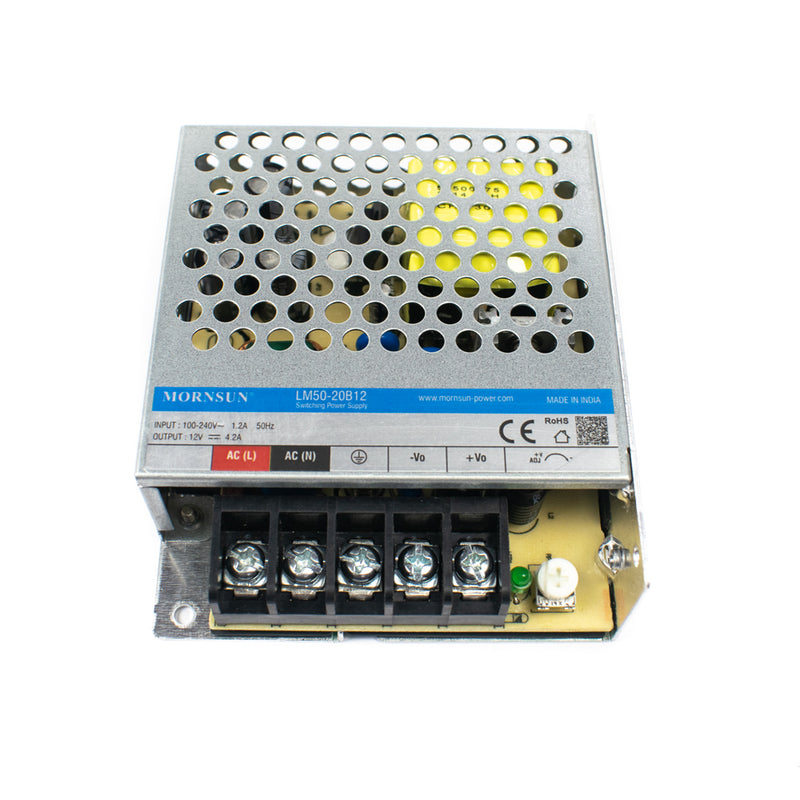

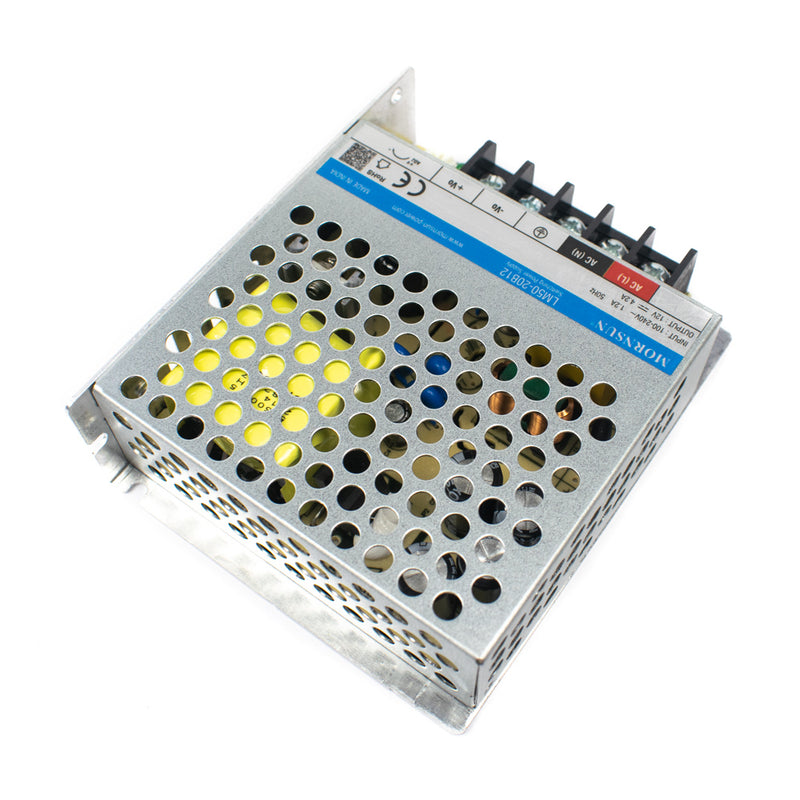

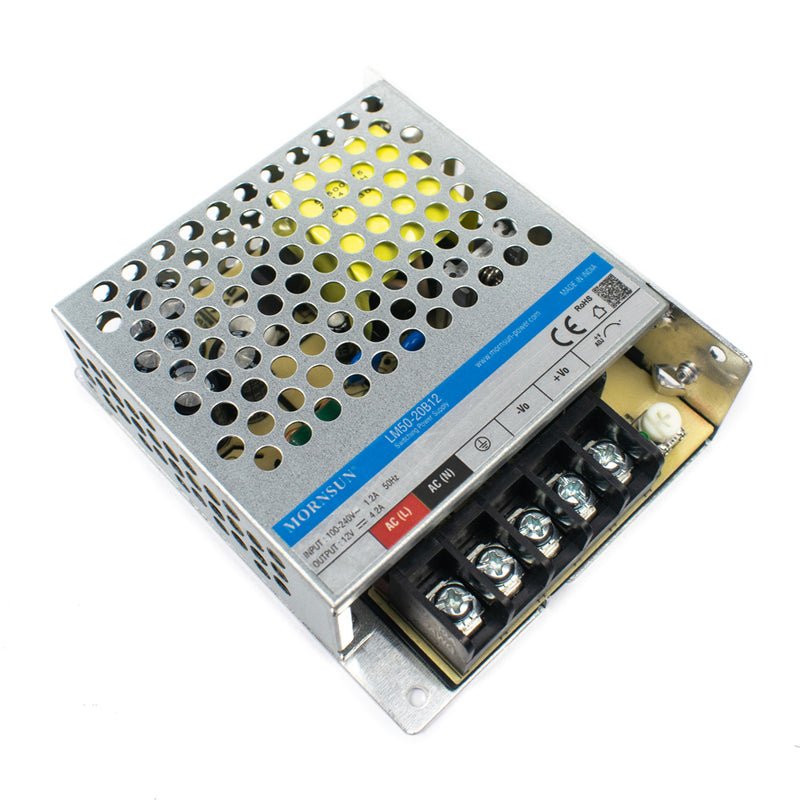

LM50-20Bxx series is one of Mornsun’s enclosed AC-DC switching power supplies. It features universal AC input and at the same time accepts DC input voltage, is cost-effective, low no-load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
FEATURES
- Universal 85 - 264VAC or 120 - 370VDC input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30℃ to +70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
Specifications
| Brand | Mornsun |
| Model | LM50-20B12 |
| Output Voltage | 12V |
| Max. Output Current | 4.2A |
| Power | 50.4W |
| Adjustable Output Voltage | 10.2-13.8V |
| Country of Origin | China |
